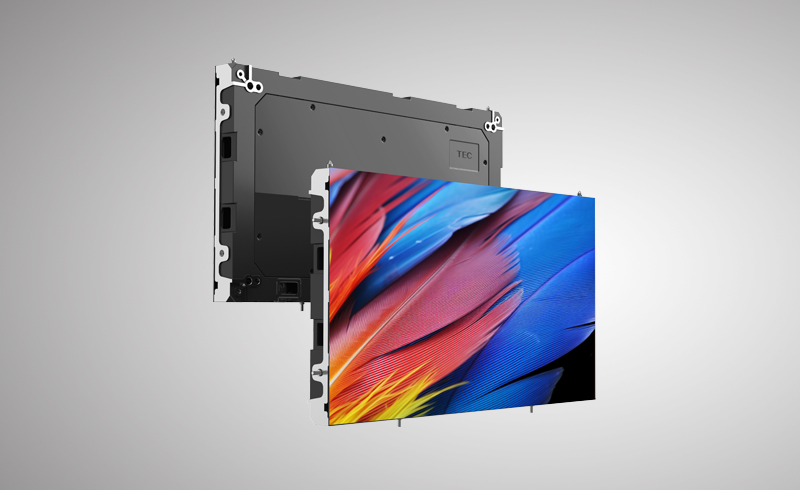

COBit-1.2 Pro, P1.25mm 2K, 4K, 8K Micro LED video wall solutions, movie theatre, game center UHD video screen

Key Features:

● High brighness 1,000 nits to 2,200 nits;

● Custom made panel size: 55'', 65'', 75'';

● Custom made shape, Circle, corner, round;

● Energy-saving, Long Lifespan, Lower heating.

Applications:

COBit Pro Ultra high definition LED video wall design for brand showroom, shopping mall, chain stores, hospital, pharmacy HD advertising screen.

Parameters

Key Features:

● High brighness 1,000 nits to 2,200 nits;

● Custom made panel size: 55'', 65'', 75'';

● Custom made shape, Circle, corner, round;

● Energy-saving, Long Lifespan, Lower heating.

Applications:

COBit Pro Ultra high definition LED video wall design for brand showroom, shopping mall, chain stores, hospital, pharmacy HD advertising screen.

P1.25mm Micro LED Indoor Fixed Fine Pitch LED Video Wall

The COBit Pro series Ultra fine pitch LED video wall is released in 2024, which designed for semi-outdoor high brightness UHD video wall applications which powered with common cathode technology. The key feature of COBit Pro is high brightness max 2,000 nits for outdoor optional, even more it can be custom-made shape, such as round, circle, triangle... The video panel with pixel pitch ranging from 0.6mm to 1.5mm deliver highest definition video performance even at small size, and the whole series come with all the features of flip COB to maximize vivid video effects,such as 10,000:1 contrast, 170° view angle. The lower heating COB modules without wires ensures the highest reliability and longer lifespan of video wall. With 27㏑,16:9 aspect ratio panel, you can create any native 2K, 4K, or 8K video wall screen with any pixel pitch easily.

More functional for creative design

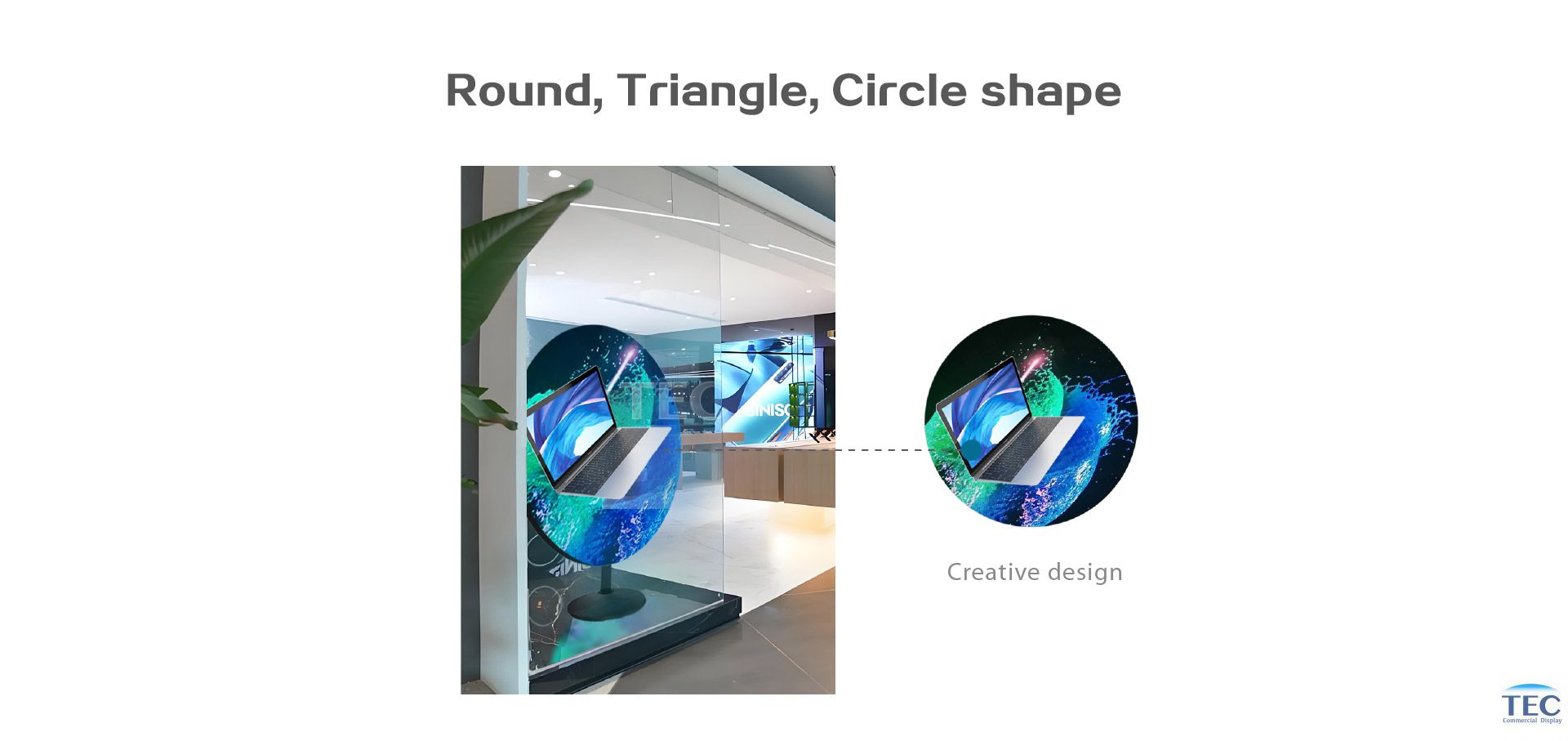

More module size & panel size allows you to make any creative shape applications, such as circle, round, triangle with slim bezel.

Semi-outdoor brightness

The LED video wall designed with common cathode technology which has 1,000 & 2,000 nits brightness for outdoor option, it is powerful bright for semi-outdoor applications.

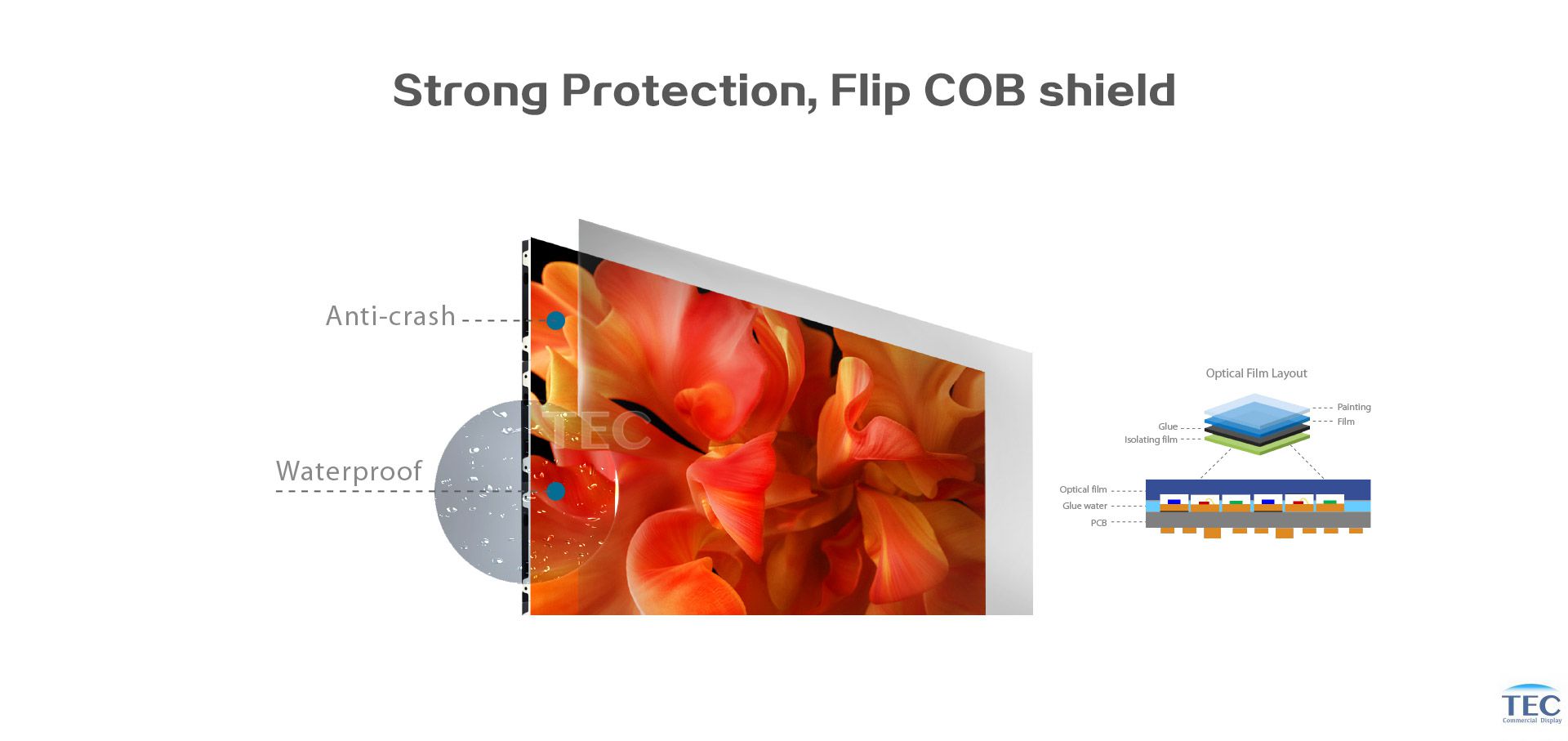

Powered by flip COB Technology

The modules with chip-on-board has the strongest protection, it is anti-crash, front IP 65 waterproof for any environment installation.

UHD Perfect Performance

The LED wall has featured with 10,000:1 contrast, 170° wide view angle, dual calibration, which deliver the uniform & vivid video performance experience.

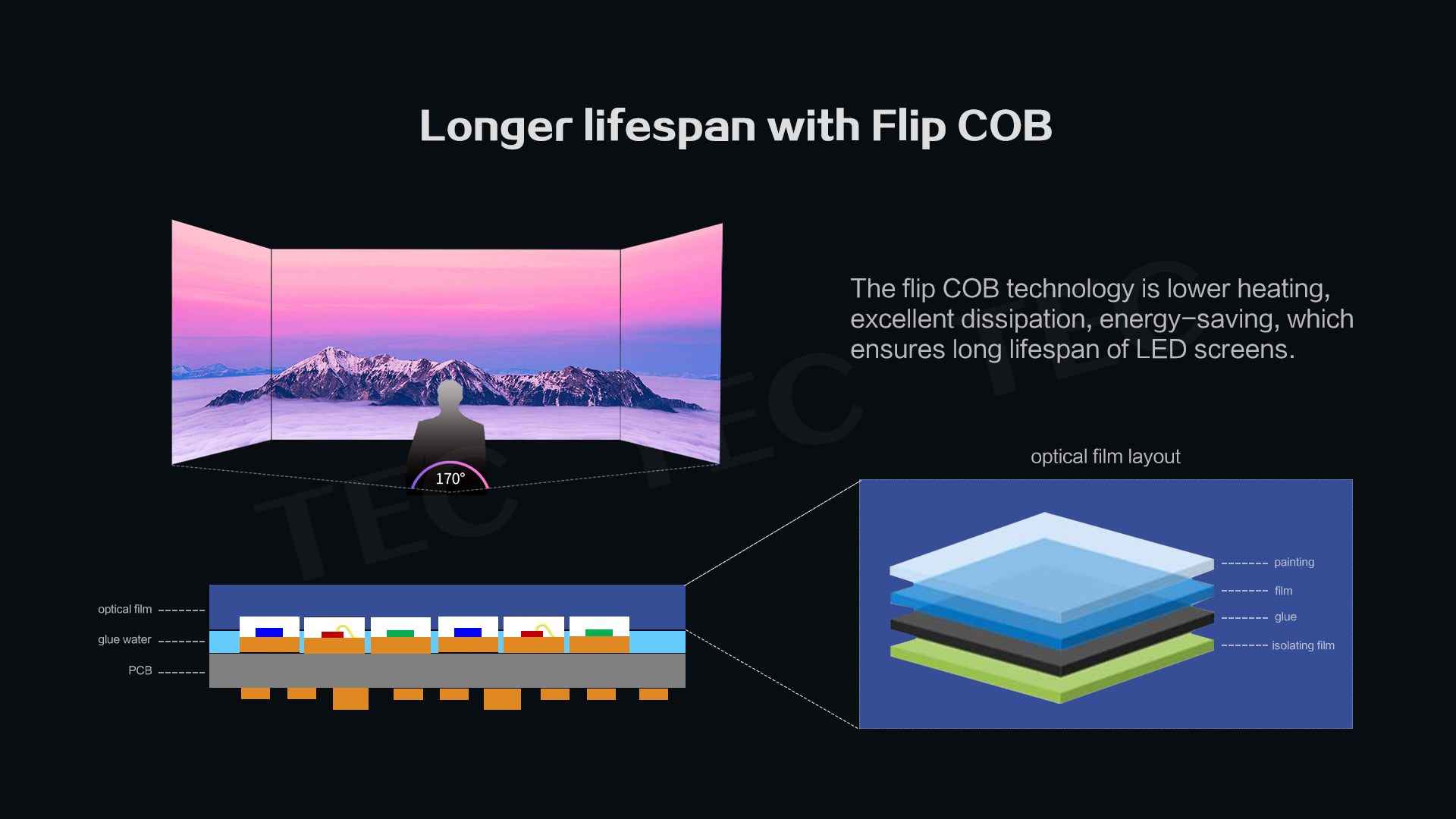

Longer lifespan with Flip COB

The flip COB technology is lower heating, excellent dissipation, energy-saving, which ensures long lifespan of LED screens.

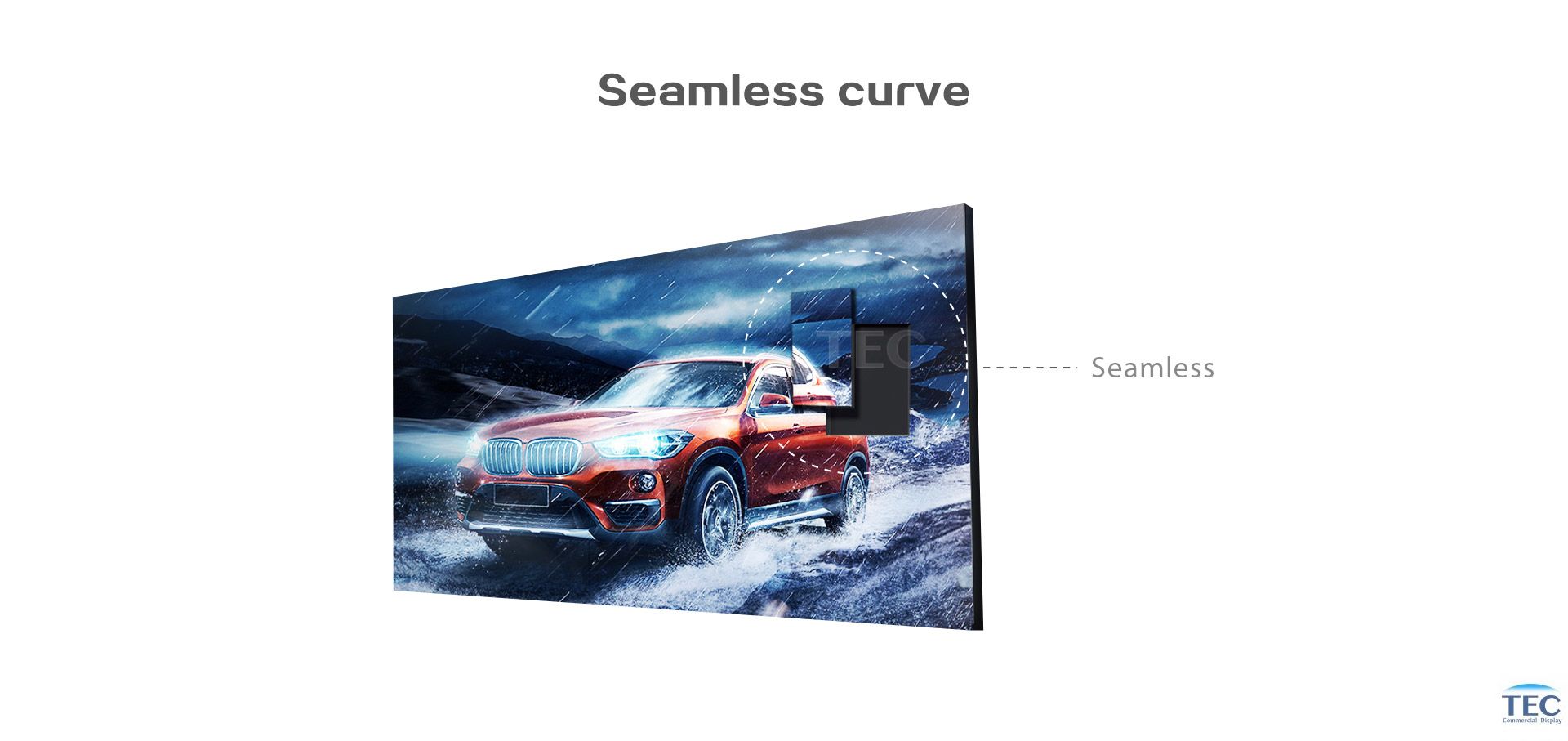

Seamless Cabinet

High precision CNC cabinet integral processing, module can be adjusted vertically and honrizontally, which ensures a flat and seamless LED wall after cabinet connection.

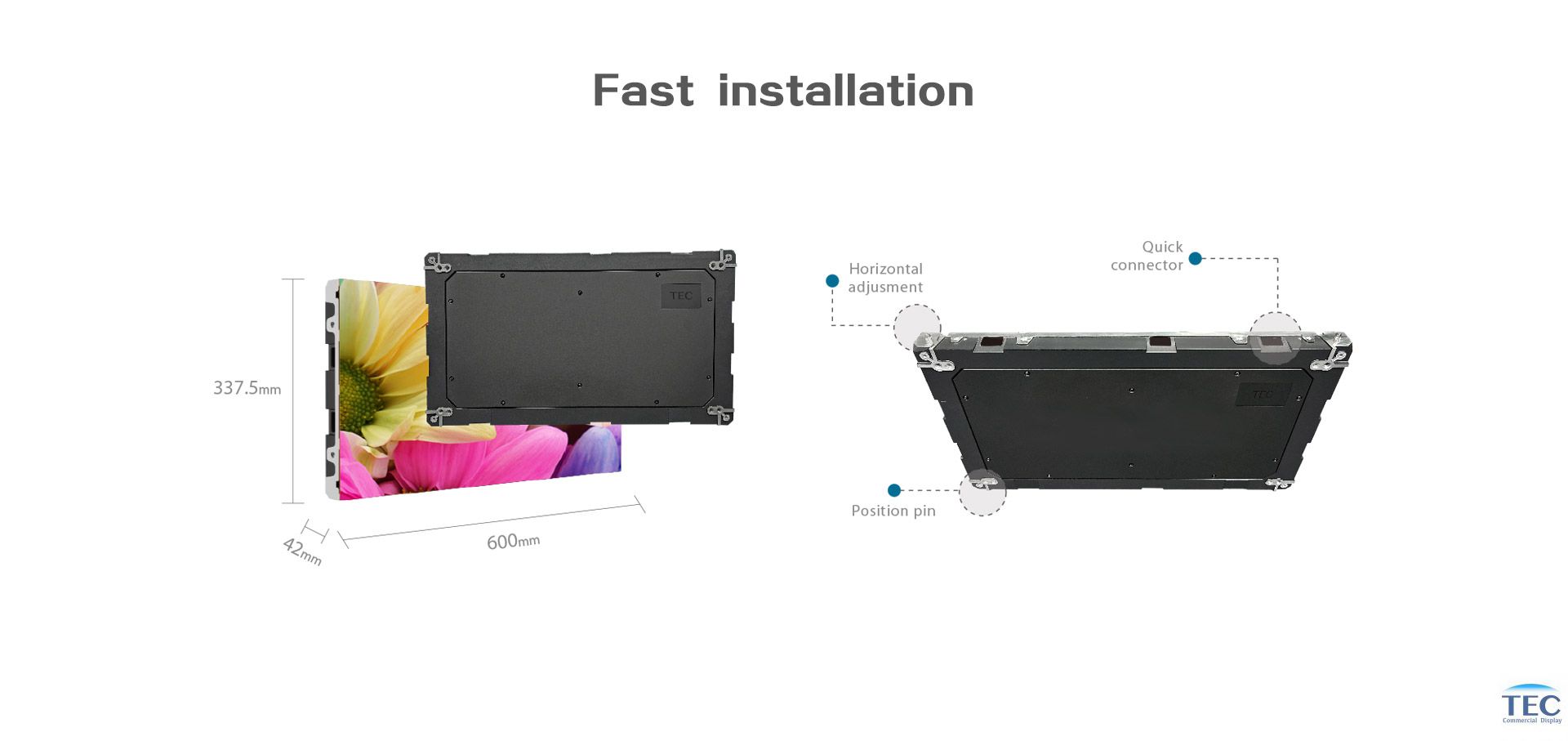

Fast installation

Standard 27 inch panel equipped with quick connector,location pin and horizontal adjustment design, saving time and labor cost on a 2K, 4K or 8K LED wall installation.

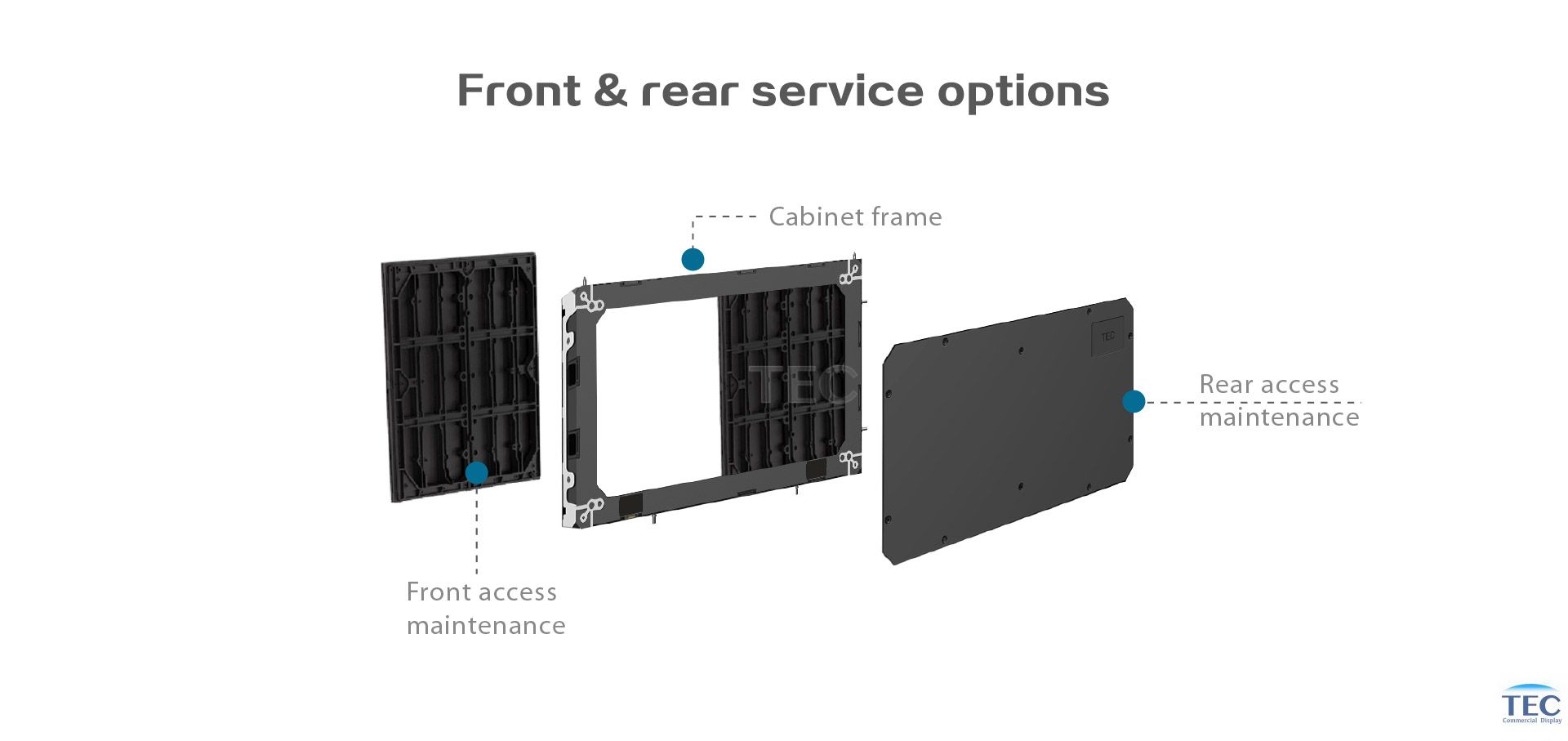

Front & Rear Service Options

Front installation, front maintenance and rear installation, front maintenance are both available.

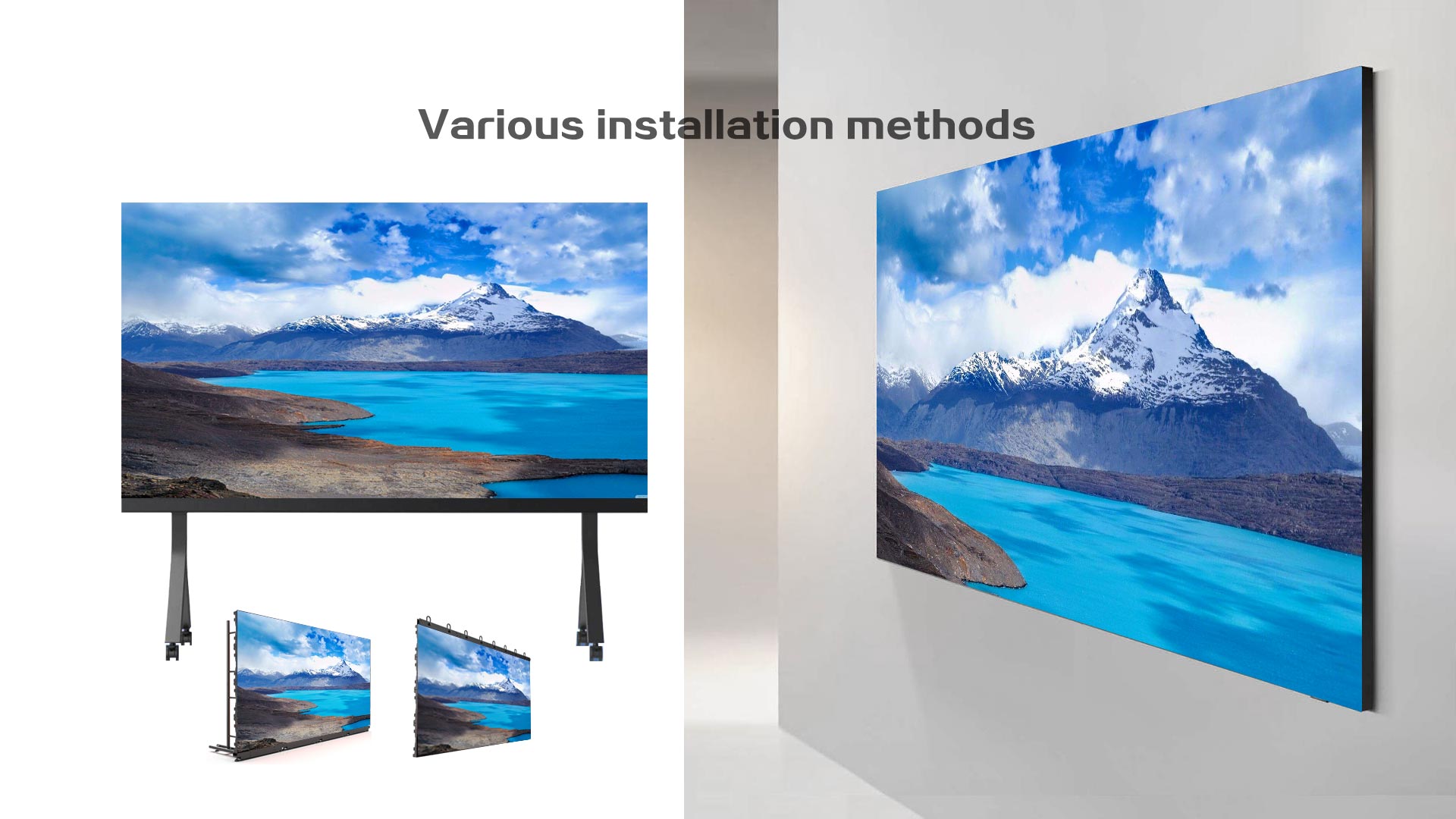

Various installation methods

Portable frame, wall mount, hanging, floor-stand installation are all available.

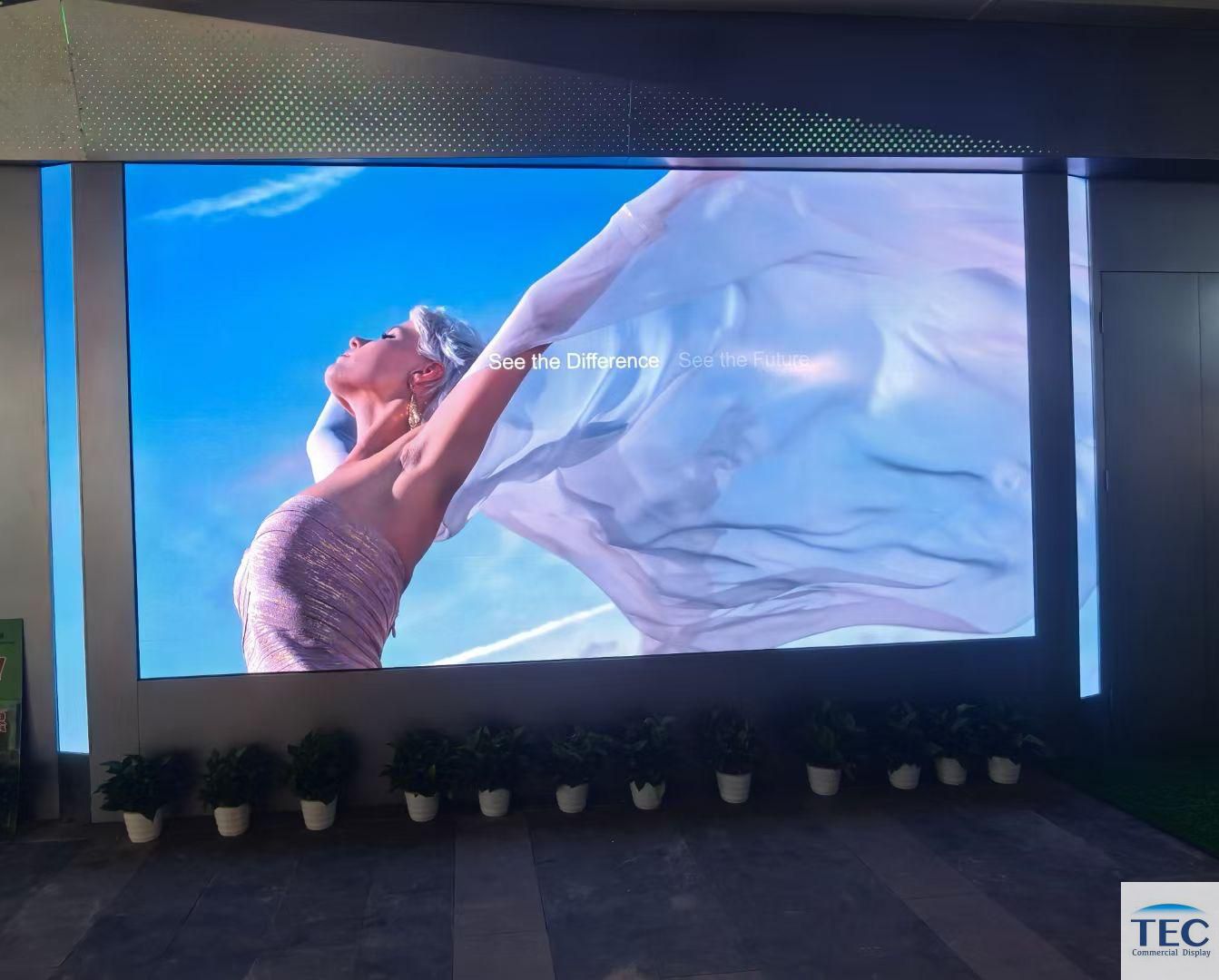

COBit Pro-1.5, 1.5mm fine pitch LED video wall case

Pixel Pitch	1.25 mm
LED	COB, 1R1G1B
Pixel Density	640,000
Module Size (mm)	150*168.75
Cabinet Size (mm)	600 * 337.5
Cabinet Resolution	480 * 270
Cabinet Thickness	42 mm
Cabinet Weight	4.6 Kgs per tile
Material	Die-casting Aluminium
Service	Front or rear Access
Brightness (nits)	1,000 / 2,000 (Optional)
Contrast	10,000:1
View angle (H/V°)	170
Drive Mode	Constant current
Grey level	14 Bit
Refresh rate (Hz)	3840
Power Input	AC 100-240V
Average power consump	110 W/sq.m
Max power consump	330 W/sq.m
Life Time (hrs)	100,000
IP Rating (Front/Rear)	IP65 / IP44
Application	Indoor / Semi-outdoor
Operating temperature	-10 to 50℃
Storage temperature	-20 to 60℃
