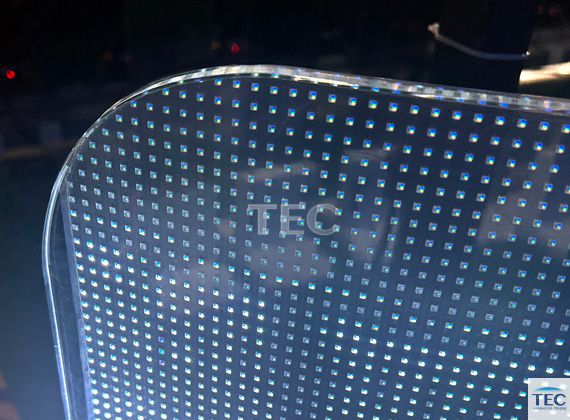

Invisible-10, P10mm See-through Film Glass Adhesive LED Advertising Video Screen
Key Features:
● Invisible PCB technology;
● 92% Transparency;
● Ultra slim, 3mm thickness;
● Stick & play, no frame;
● Cut freely for your size.
Applications:
Glass self-adhesive film LED screen solution for window glass advertising media on building, store, showroom
- Parameters
Key Features:
● Invisible PCB technology;
● 92% Transparency;
● Ultra slim, 3mm thickness;
● Stick & play, no frame;
● Cut freely for your size.
Applications:
Glass self-adhesive film LED screen solution for window glass advertising media on building, store, showroom
Pitch 10mm Clear film LED video wall
The Real Glass LED Displays with Invisible Film Technology
Stick on window glass, Stand out your brand
In the booming glass LED screen industry, the transparency is the most important factor for windows, this is why most of manufacturers try to make the highest transparency, so do TEC displays, TEC invisible PCB technology came out after many years development, this new technology not only expand the transparency rate up to 95%, but also can be made for any custom projects with soft PCB technology, you can also cut the size of film as you wanted easily.

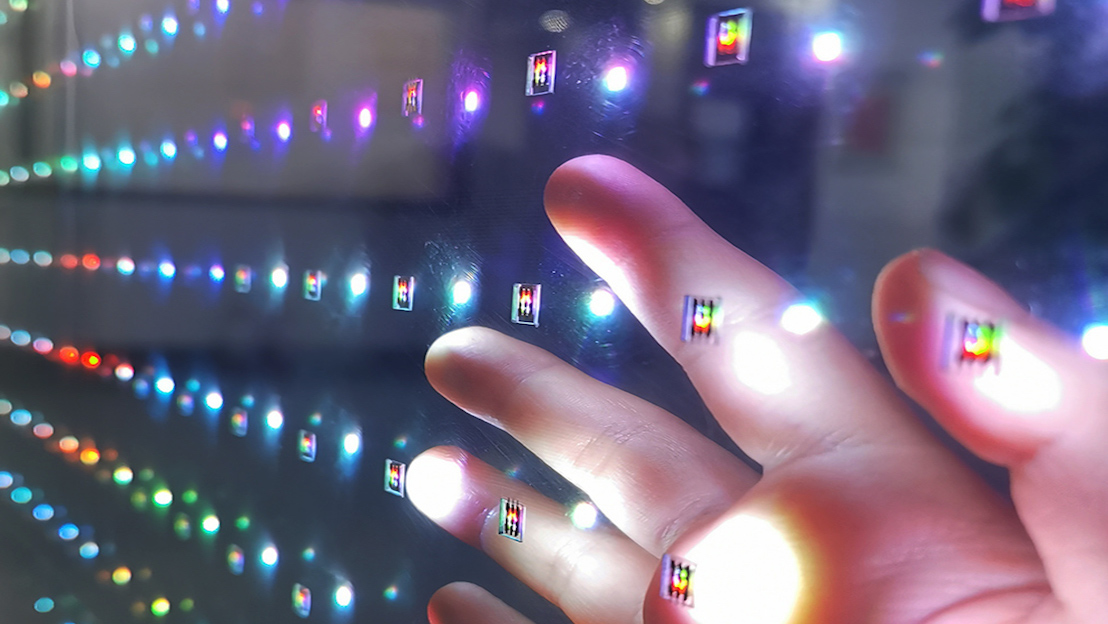

The invisible PCB means the PCB board is also transparent, it is hard to find wires in the PCB even if you get closer and check it carefully, the traditional PCB of glass LED screen can not made like this. This is why when the film LED screen is off, you cannot see anything on the window glass. The transparency of film LED screen is more than 95%, it combines the art with technology to create a perfect experience for your target audience.
The invisible PCB is also soft and 1.2mm thickness, you can make any shapes and size without any limitation, and applied most of your projects. Choose TEC film LED screen, experience the differences of film LED screen.
Unbeatable transparency
95% transparency, the highest transparency in the transparent glass LED displays
Ultra slim & light weight
Only 1.2mm film thickness, 0.2kgs weight per 500*500mm film
Easiest installation
Paste on window glass with special self-adhesive glue-water, save installation & frame cost

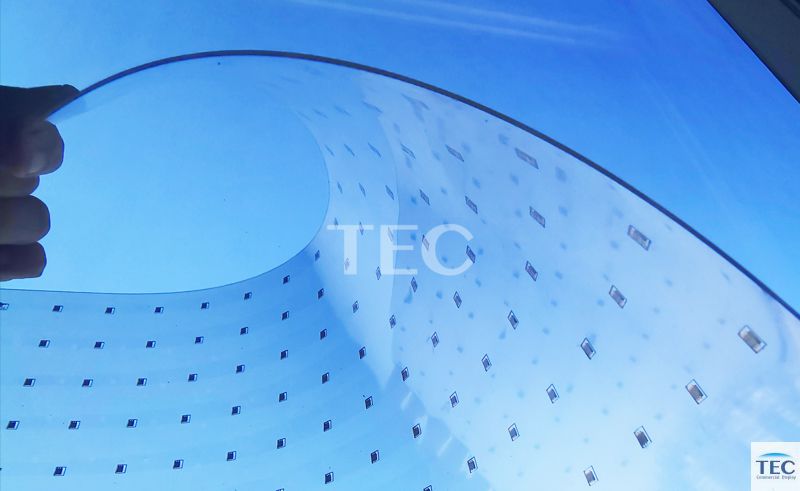

Extreme flexible
Soft PET film material allows you to make any shapes, like pillar, wave, cone...
Free trimming size
Standard size 500*500mm can be cut for any size, or custom made film size available
Powerful weather protection
Stable & Anti-UV PET material ensures durable installation for outdoor, not yellow in 8 years
Highest safety
Strong OCA self-adhesive film makes safe glass protection if the window glass is broken
Simple fixed Installation
Only 4 steps to install: Tear off film protection; paste on glass; connect cables; fix on window frame
Clear installation
Easy control via There is no power box & cables in between glass, flexible installation allows you layout power box vertically or horizontally.

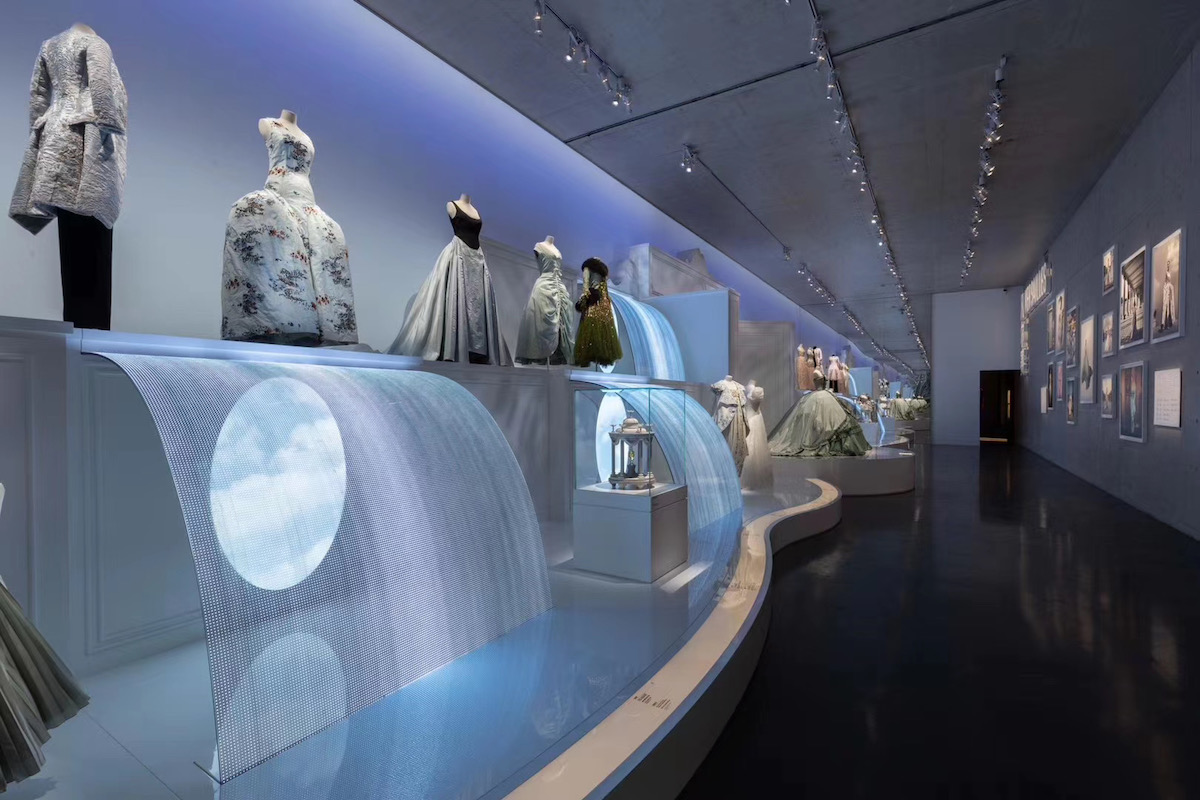

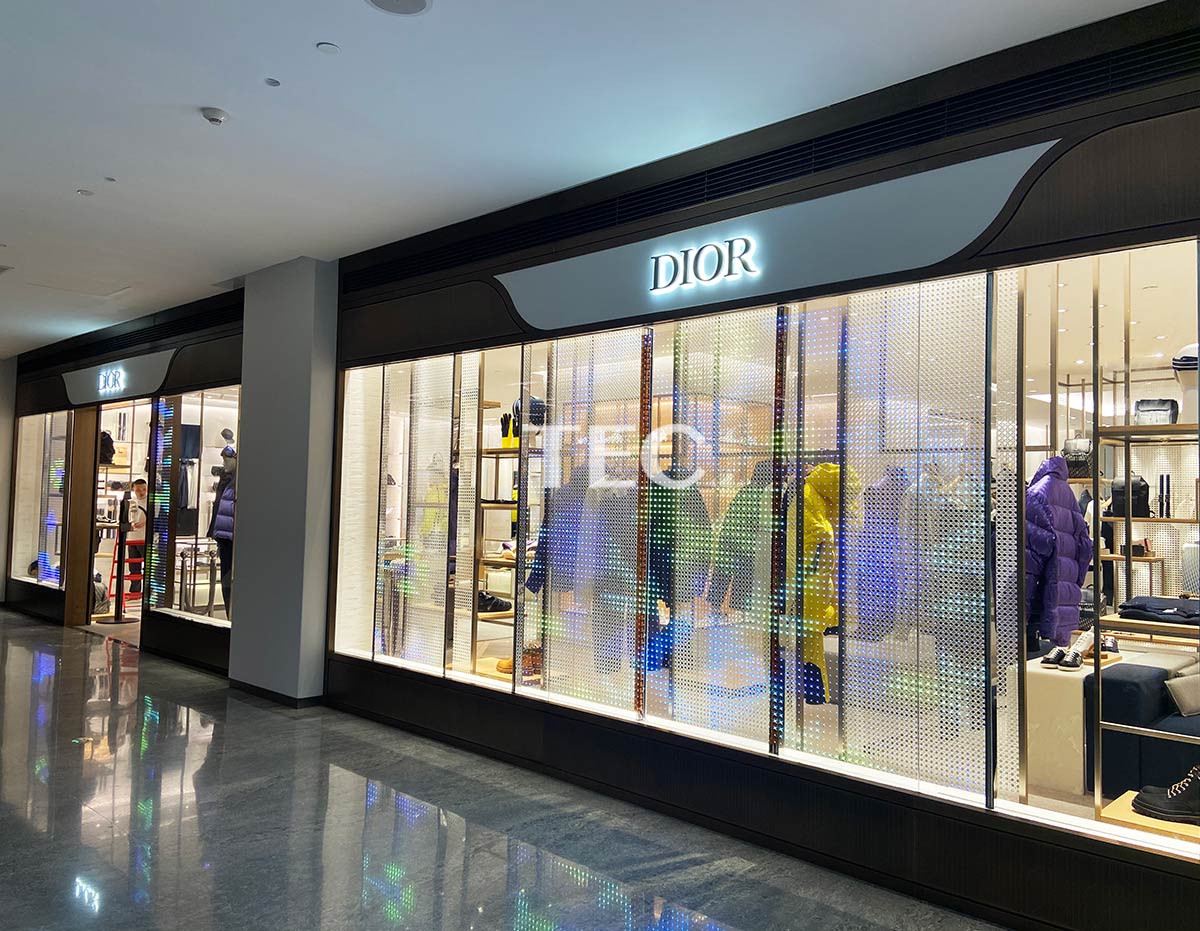

Transparent Film LED Displays Installation Cases
| Pixel Pitch | 10 mm |
| LED | SMD2121 (IC Integrated) |
| Transparency | 90% |
| Film Size (mm) | 1000*240 |
| Film Resolution | 100 * 24 |
| Material | Anti UV PET+AL |
| Thickness (mm) | 3 |
| Weight (㎏/㎡) | 3.5 |
| Brightness（Nits） | 3500 |
| View angle (H/V°) | >140 |
| Power Input | AC 110-220V |
| Grey level | 14 Bit |
| Refresh rate (Hz) | 3840 |
| Max Power Consumption | 400 W/m² |
| Avg Power Consumption | 140 W/m² |
| Driving Type | Static |
| Maintenance | Rear |
| IP Rating | 54 |
| Application | Indoor |
| Installation Type | OCA Pasting |
| Life Time (hrs) | 100,000 |
| Operating temp | -20 to 50℃ |
| Storage temperature | -20 to 60℃ |
