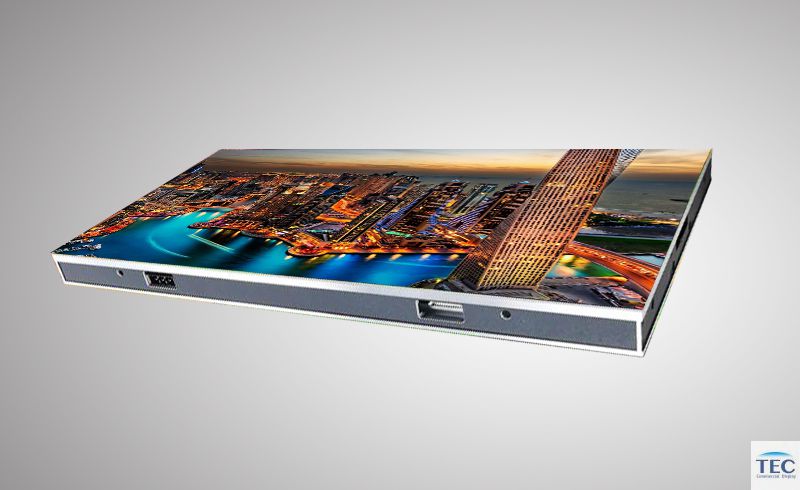

MI250-1.5, LED studio HD video solutions, 1.5mm front access indoor fine pitch LED video wall
Key Features:
● 1000*250, 750*250, 500*250mm panel size;
● 33mm thick cabinet, 2.9kgs per panel;
● 45 degree design for cube;
● Front Installation & maintenance.
Applications:
UHD fine pitch fixed LED video screen for office, hotel, stage, shopping mall, conference, showroom, digital signage.
- Parameters
Key Features:
● 1000*250, 750*250, 500*250mm panel size;
● 33mm thick cabinet, 2.9kgs per panel;
● 45 degree design for cube;
● Front Installation & maintenance.
Applications:
UHD fine pitch fixed LED video screen for office, hotel, stage, shopping mall, conference, showroom, digital signage.
Mountit250-1.5, P1.56mm Front Service LED video Wall
Ultra slim, Flexible panel size, UHD performance
Mountit250 Series fixed LED video wall has wide pixel pitch range from 1.5mm to 3.91mm and more panels size for flexible indoor commercial LED display applications. The ultra slim design 33 thick, and weight 2.9 kgs cabinet which makes the installation easier and saves the installation space and cost, it allows you to mount the video tiles easily on the wall directly with screws or a simple frame. Even more, two panels can be fixed together for a double sided LED video wall, and the 45 degree design cabinet is easy for you to setup a cube or a 90 degree corner screen.

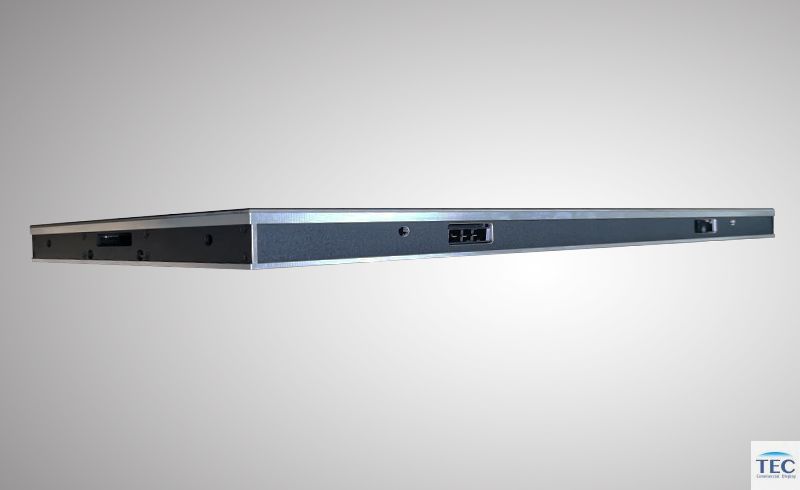

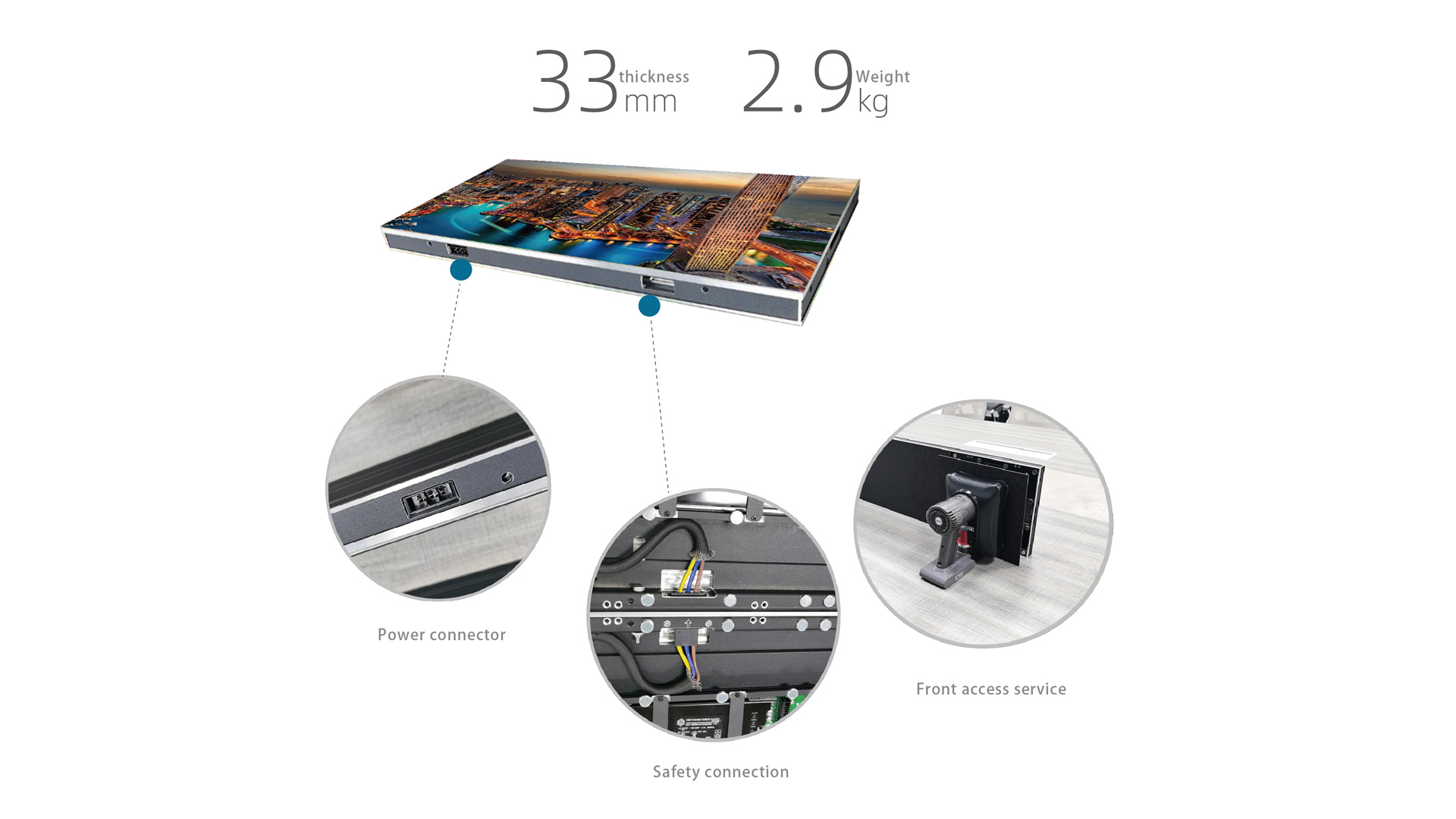

Neat design, Ultra slim, Light-weight Tile
The thickness of cabinet is 33mm, only 2.9Kgs, easy handle, 40mm thickness after installation.

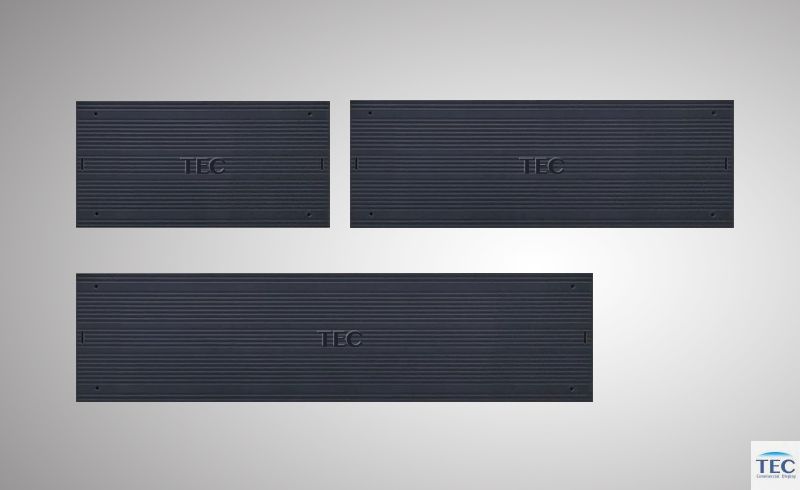

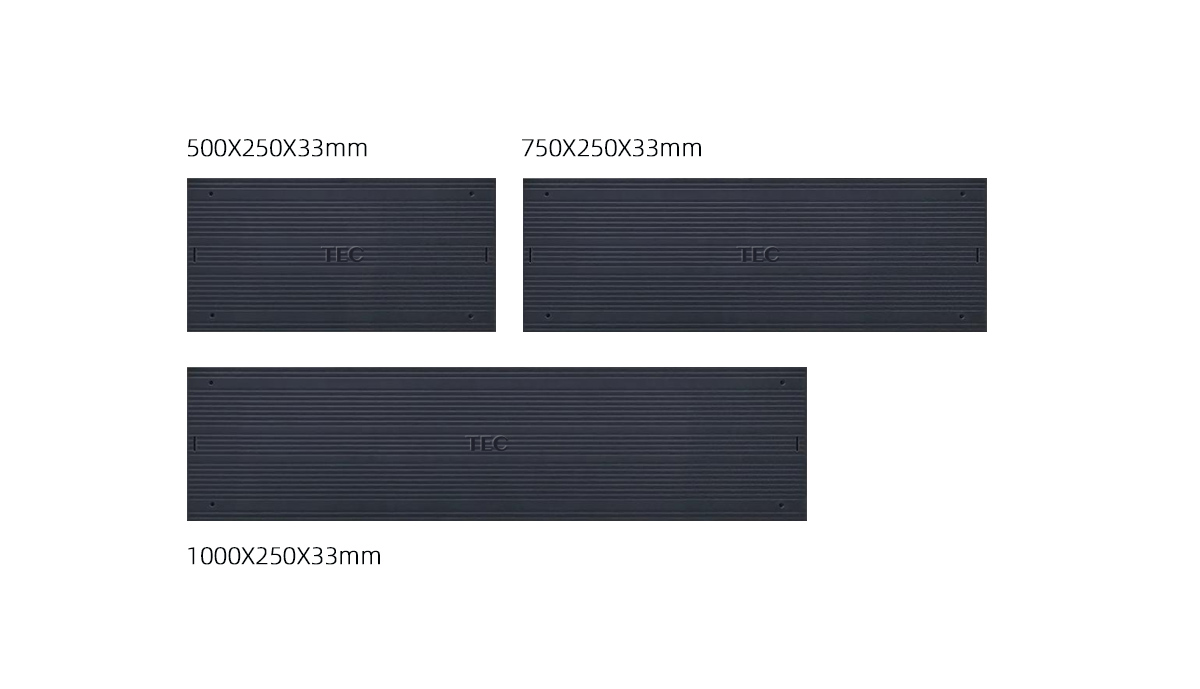

More Panel Size
More option on panel size and pixel pitch for your project, 1000*250, 750*250, 500*250mm; pitch range 3.9mm to 1.5mm.

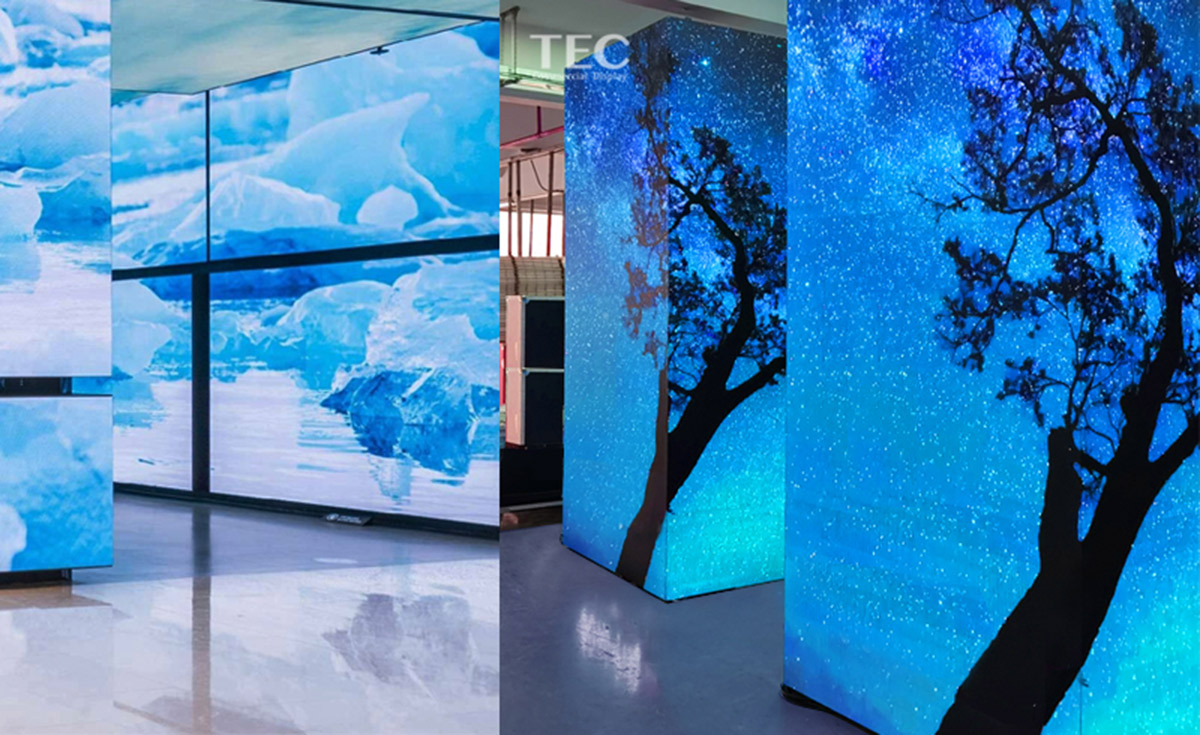

Corner LED design
45 degree LED module & cabinet design, easy to install a cube or 90 degree LED video wall

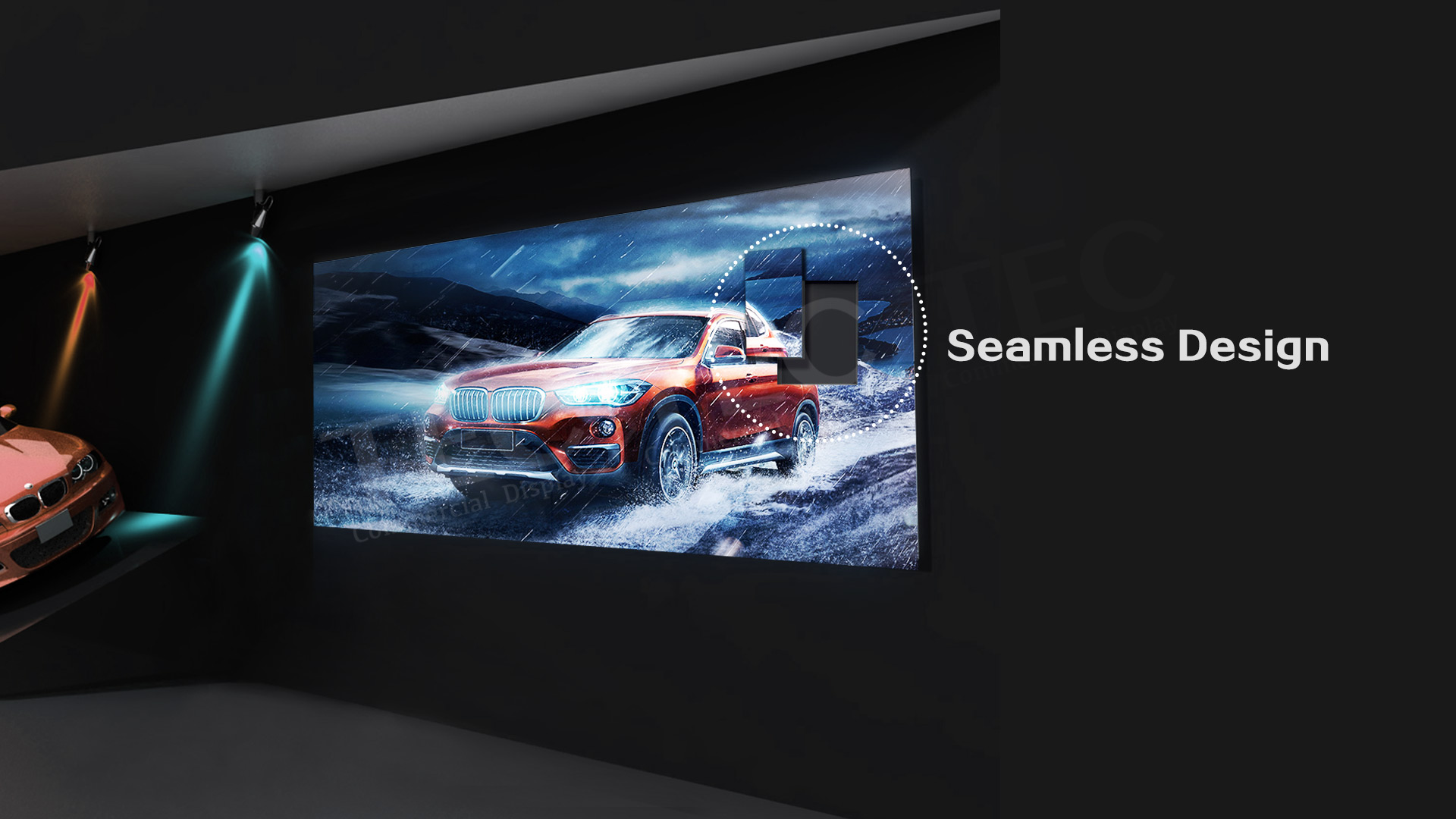

Seamless Design
Every video panel is manufactured with CNC auto-machines of high precision, modules & cabinet connection are seamless.

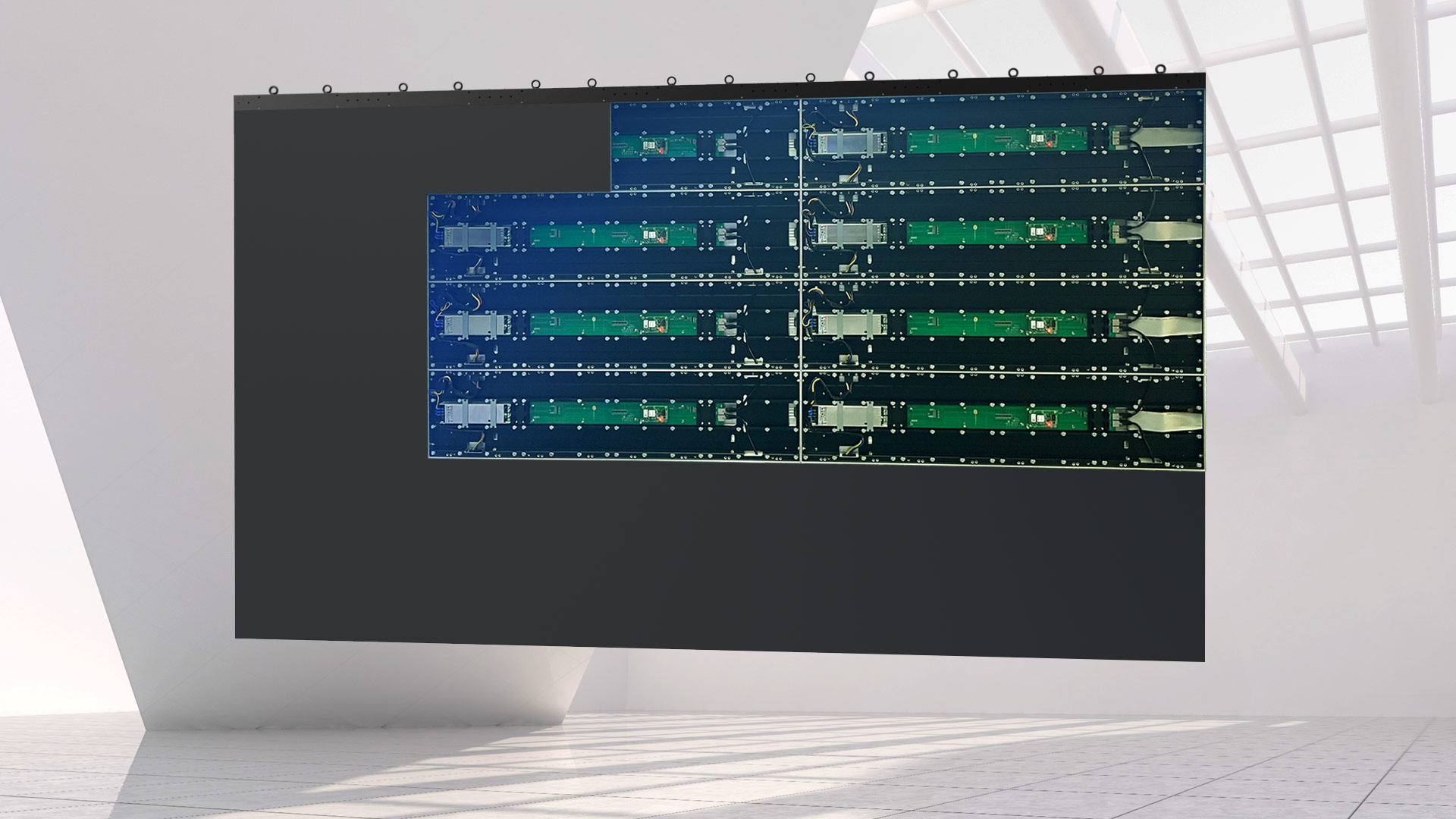

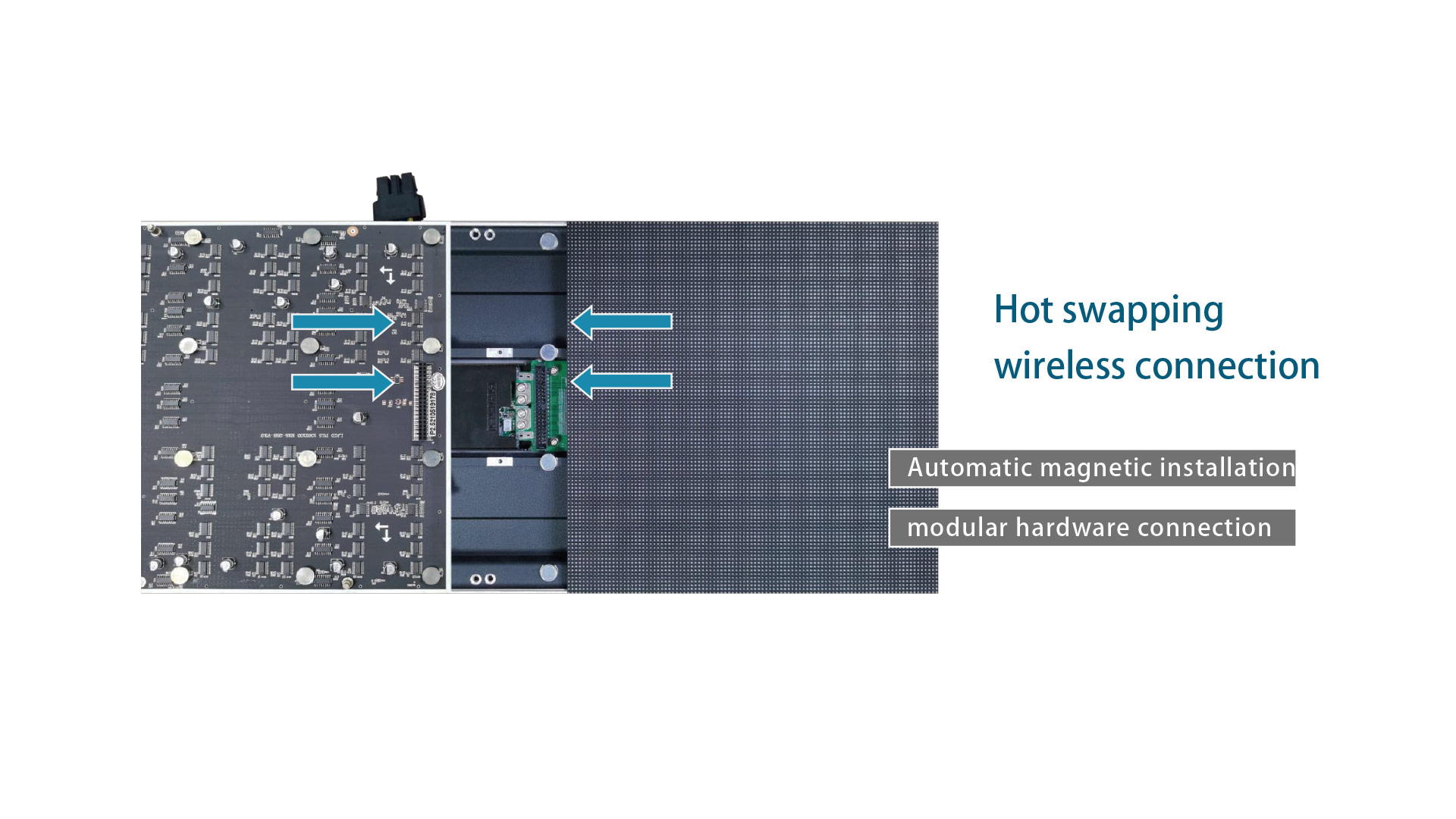

Easy installation
Connection strap & magnetic design for simple installation without cables, no need extra frame to fix, saving structure cost.
Front installation & maintenance
LED modules, controller all are front maintenance without catwalk. Front installation to save installation space.
Excellent UHD Display performance
Uniform color LED, 3840Hz refresh rate and 160° super wide viewing angle guarantee the vivid visual experience.

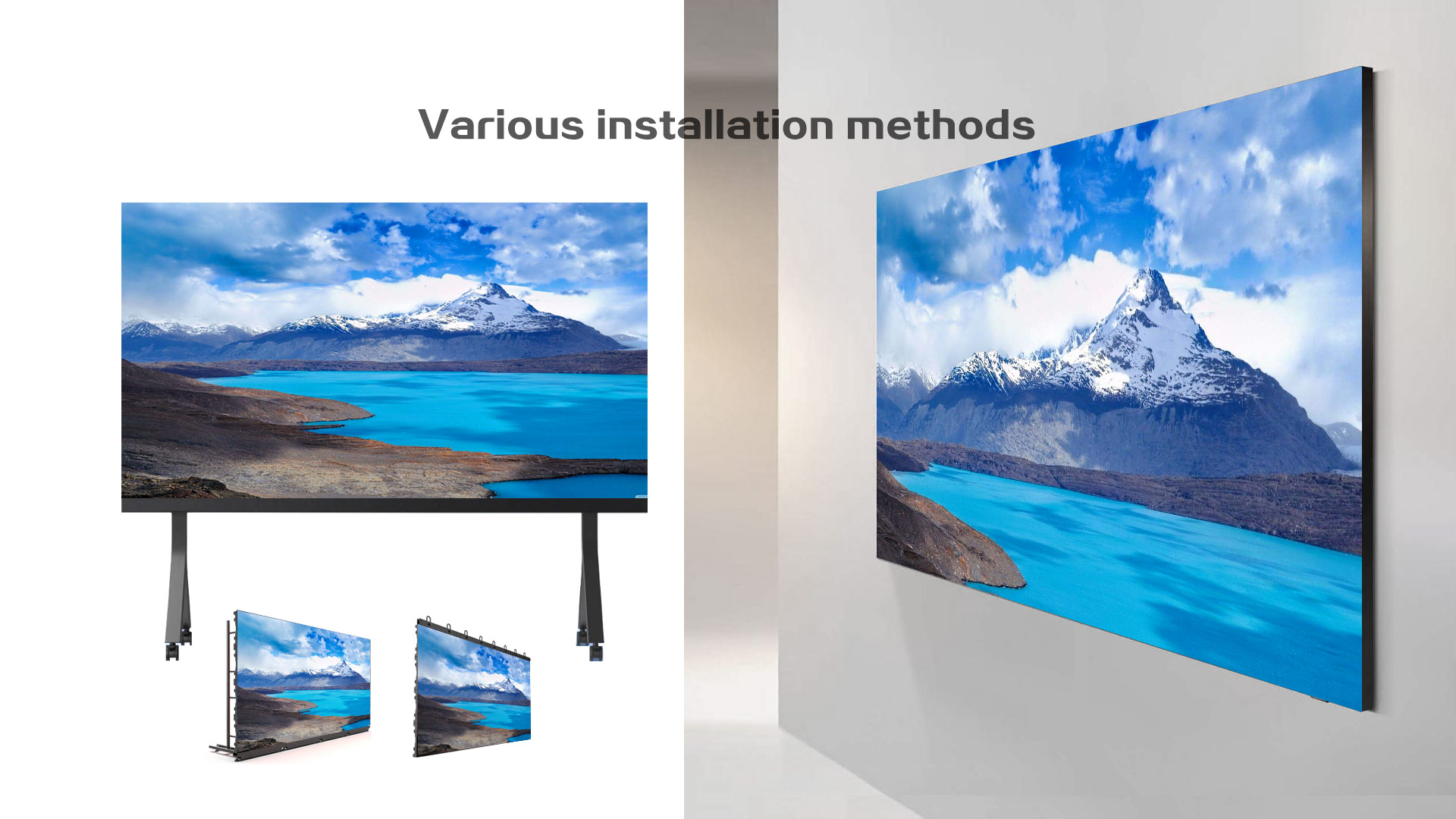

Varies installation methods
Wall mount with screws, Fixed with frame, hanging installation are all available.
Mountit250 series MI250-1.9, Pitch 1.9mm fixed installation in the shopping mall
| Pitch | 1.56mm |
| LED | SMD 1212 |
| Pixel Density | 409,600 |
| Module Size (mm) | W 250 * H 250 |
| Cabinet Size (mm) | W 1000 * H 250 / W 750 * H 250/ W 500 * H 250 |
| Cabinet Thickness | 33 mm |
| Cabinet Weight | 2.9 Kgs |
| Brightness (nits) | 800 |
| Material | Die-casting |
| Serviceability | Front |
| Max power consump | 800 W/㎡ |
| Average power consum | 240 W/㎡ |
| Refresh rate (Hz) | 3840 |
| Grey level | 14 Bit |
| Drive Mode | Constant current |
| Power Input | AC 110-220V |
| Life Time (hrs) | 100,000 |
| Contrast | 5000:1 |
| View angle (H/V°) | >140 |
| IP Rating | 43 |
| Application | Indoor |
| Operating temp | -10 to 40℃ |
| Storage temperature | -20 to 60℃ |
