PRODUCTS DETAIL

MI250-2.5, Pitch 2.5mm Front accesss video screen for video conference solution,small pitch fixed LED video display


    Key Features:

    1000*250, 750*250, 500*250mm panel size;

    ● 33mm thick cabinet, 2.9kgs per panel;

    ● 45 degree design for cube ;

    ● Front Installation & maintenance.

    Applications:

      Indoor fixed LED video screen for office, hotel, stage, shopping mall, conference, showroom, digital signage.


  • Parameters


    Key Features:

    1000*250, 750*250, 500*250mm panel size;

    ● 33mm thick cabinet, 2.9kgs per panel;

    ● 45 degree design for cube ;

    ● Front Installation & maintenance.

    Applications:

      Indoor fixed LED video screen for office, hotel, stage, shopping mall, conference, showroom, digital signage.

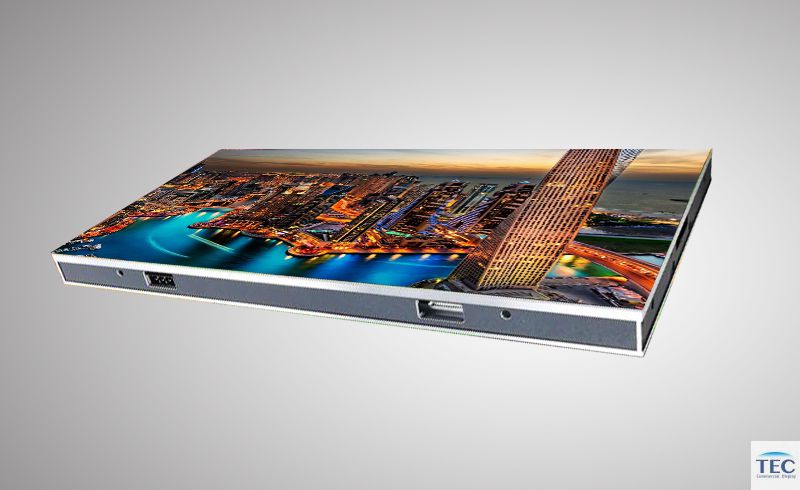

Mountit250-2.5, P2.5mm Indoor Fixed LED video screen



Ultra slim, More panel size, UHD performance




Mountit250 Series fixed LED video wall has wide pixel pitch range from 1.5mm to 3.9mm and more panels size for flexible indoor commercial LED display applications. The cabinet thickness 33mm ultra slim design, and weight 2.9 kgs which makes the installation easier and saves the installation space and cost, it allows you to mount the video tiles easily on the wall directly with screws or a simple frame. Even more, two panels can be fixed together for a double sided LED video wall, and the 45 degree design cabinet is easy for you to setup a cube or a 90 degree corner screen.

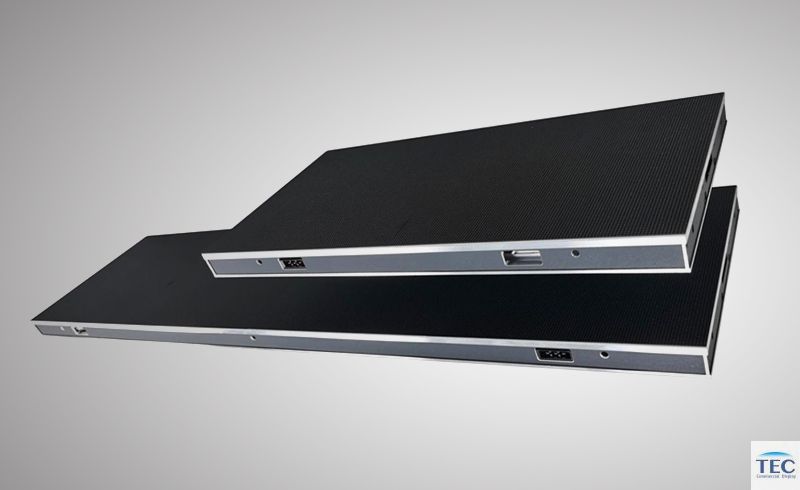

Neat design, Ultra slim, Light-weight Tile


The thickness of cabinet is 33mm, only 2.9Kgs, easy handle, 40mm thickness after installation.

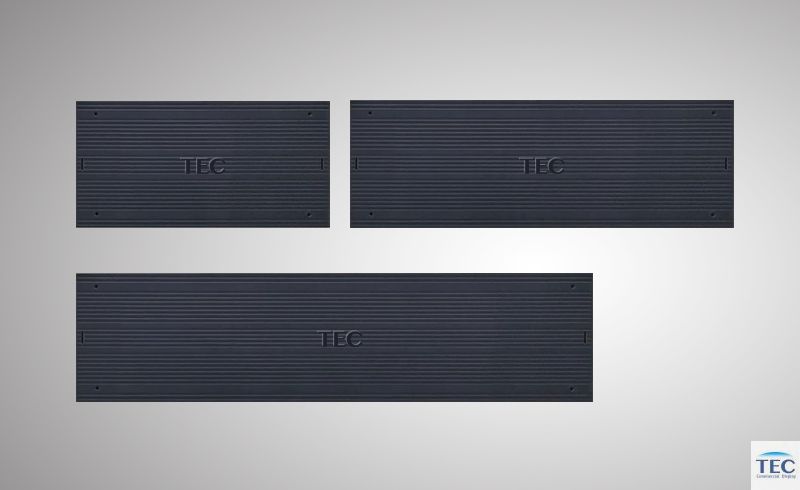

More Panel Size


More option on panel size and pixel pitch for your project, 1000*250, 750*250, 500*250mm; pitch range 3.9mm to 1.5mm.


Corner LED design


45 degree LED module & cabinet design, easy to install a cube or 90 degree LED video wall





Seamless Design


Every video panel is manufactured with CNC auto-machines of high precision, modules & cabinet connection are seamless.





Easy installation


Connection strap & magnetic design for simple installation without cables, no need extra frame to fix, saving structure cost.




Front installation & maintenance


LED modules, controller all are front maintenance without catwalk. Front installation to save installation space.





Excellent UHD Display performance


Uniform color LED, 3840Hz refresh rate and 160° super wide viewing angle guarantee the vivid visual experience.







Varies installation methods


 Wall mount with screws, Fixed with frame, hanging installation are all available.







Mountit250 series MI250-1.9, Pitch 1.9mm fixed installation in the shopping mall





Pitch2.5mm
LEDSMD 1515
Pixel Density160,000
Module Size (mm)W 250 * H 250
Cabinet Size (mm)W 1000 * H 250 / W 750 * H 250W 500 * H 250
Cabinet Thickness33 mm
Cabinet Weight2.9 Kgs
Brightness (nits)1500
MaterialDie-casting
ServiceabilityFront
Max power consump800 W/㎡
Average power consum240 W/㎡
Refresh rate (Hz)3840
Grey level14 Bit
Drive ModeConstant current
Power InputAC 110-220V
Life Time (hrs)100,000
Contrast5000:1
View angle (H/V°)>140
IP Rating43
ApplicationIndoor
Operating temp-10 to 40℃
Storage temperature-20 to 60℃





MI250-2.5, Pitch 2.5mm Front accesss video screen for video conference solution,small pitch fixed LED video display
● Front Installation & maintenance;

● Simple installation with own brackets;

● Space saving, only 40mm thickness after installation;

● High contrast & refresh rate ensuring UHD visual display.

Applications:

Indoor LED panel fixed installation for stage, shopping mall, conference, showroom, digital signage.
