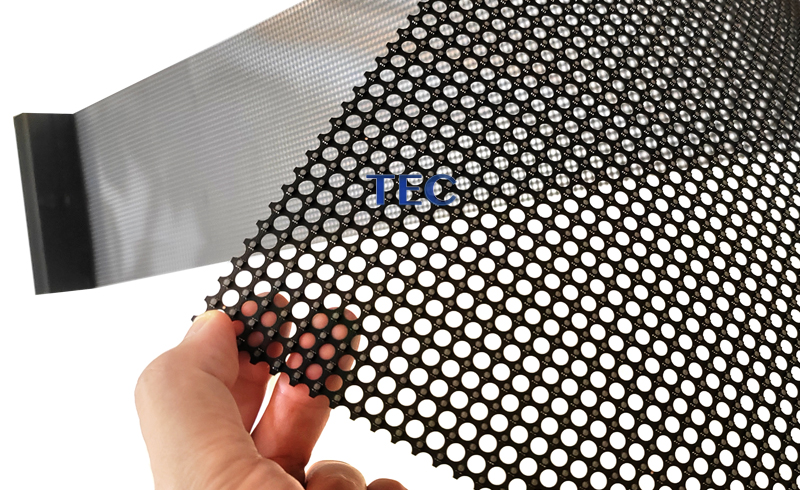

Mirage-15, 15mm Transparent adhesive grid LED video screen, shop window glass advertising video solutions

Key features:

 High Transparency, up to 90%;

 High Resolution video application 2.5mm;

 Flexible panel size from 500 to 2000mm long;

 Extreme bright from 3,500 to 5,000 nits.

Applications:

Ultra HD holography transparent LED video wall for building window glass advertising chain store, brand shop, exhibition show, shopping center LED billboard solutions.

Parameters

Key features:

 High Transparency, up to 90%;

 High Resolution video application 2.5mm;

 Flexible panel size from 500 to 2000mm long;

 Extreme bright from 3,500 to 5,000 nits.

Applications:

Ultra HD holography transparent LED video wall for building window glass advertising chain store, brand shop, exhibition show, shopping center LED billboard solutions.

Mirage-15, 15mm Transparent adhesive grid LED video screen

The 4G window glass transparent LED video solutions

Pixel Pitch	15 mm
LED	SMD2020 (IC Integrated)
Transparency	90%
Film Size (mm)	1500*250
Film Resolution	100* 16
Material	Flexible PCB
Thickness (mm)	2
Weight (㎏/㎡)	2.5
Brightness（CD）	3,500 & 5,000
View angle (H/V°)	>140
Power Input	AC 110-220V
Grey level	14 Bit
Refresh rate (Hz)	3,840
Max Power Consumption	800 W/m²
Avg Power Consumption	240 W/m²
Driving Type	Static
Maintenance	Rear
IP Rating	43
Application	Indoor
Installation Type	Pasting on with self-adhesive gluewater
Life Time (hrs)	100,000
Operating temp	-20 to 50℃
Storage temperature	-20 to 60℃
