Key Features:
● Featured with Film technology
● 90% Transparency
● Ultra slim, 1.5mm thickness
● Soft for any shapes
● Cut freely for your size
Applications:
Soft film LED screen solution for guardrail, elevator window glass video wall solutions
Key Features:
● Featured with Film technology
● 90% Transparency
● Ultra slim, 1.5mm thickness
● Soft for any shapes
● Cut freely for your size
Applications:
Soft film LED screen solution for guardrail, elevator window glass video wall solutions

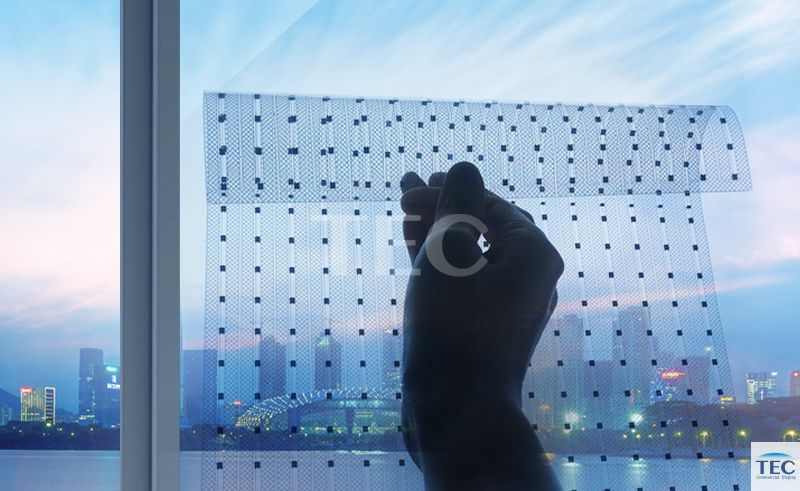

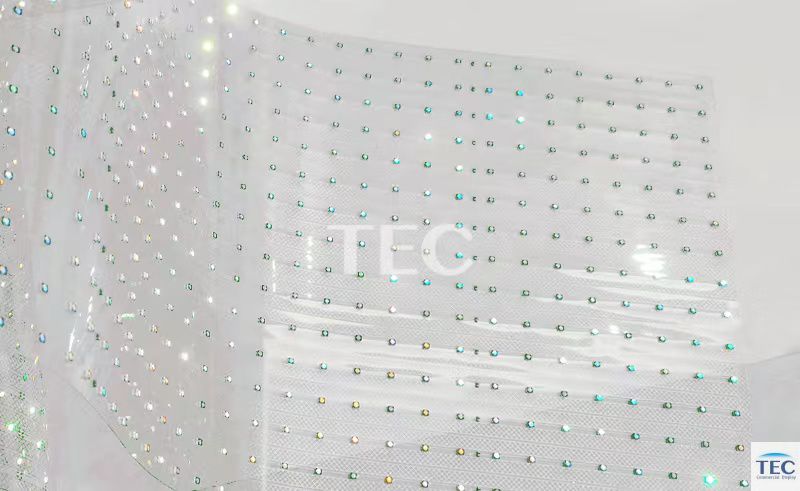

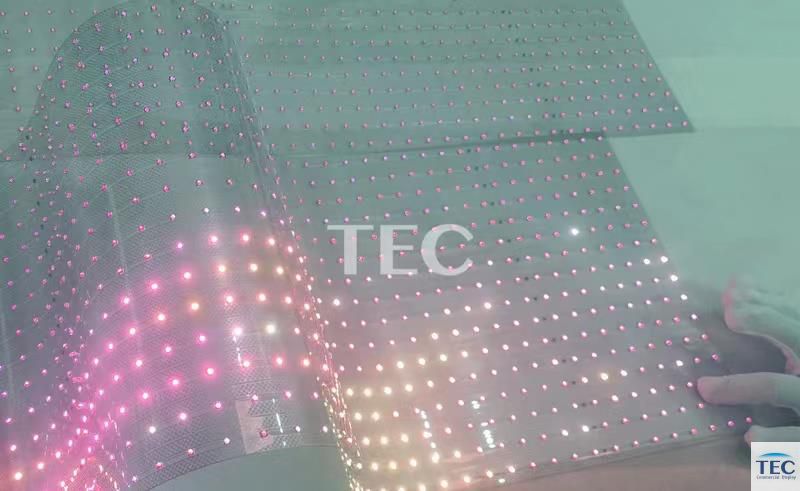

The Soft Film LED Displays with Film Technology
Have you ever seen a LED display like paper? Here she comes, TEC introduce new Paperit series film LED screen which is only 1.2mm thick, 1.5kgs per sq.m, paperlike film technology.
The film size reach to 960mm length, it is neat without any frame between after installation, you can easily put the film on any shape glass, hang or pasted with glue water.
Due to micro thin nano wires film technology, the film LED is 95% transparency, which allows you to see the objects behind film LED screen and also the information on the screen, it is the luxury see-through experience.
Soft & thin like paper
Soft film like a piece of paper, flexible for infinite innovative design
Ultra slim & light weight
Only 1.5mm thickness film, 0.2kgs weight per 960*240mm film panel, apply for any installation
Unbeatable transparency
95% transparency, the highest transparency in the transparent LED displays
Free size
Standard size 960*240mm can be cut for any smaller size, or custom made film size are all available
Highest safety
Strong self-adhesive film and fixed with window frame makes safe glass protection if the window glass is broken
Easiest installation
The film can be cover any shape of glass, you can fix with PC, glass or pasted on glass directly
Model | Paperit-15 |
Pitch(mm) | 15mm |
LED | SMD LED 2121 |
Film Size(L×W×T)/(mm) | 960*240*2mm |
Pixel Per Film | 64*16 |
Transparency | 90% |
Material | Anti UV PC+AL |
Weight(㎏/㎡) | 1.5 |
Brightness(nits) | 1500 |
Refresh Rate(Hz) | 3840 |
Weathering Resistance | Anti-yellowing |
Color Temperature(K) | 6500 |
Viewing Angle(H/V)(°) | 140/140 |
Driving Type | Static |
Operating Voltage(V) | AC110-220~DC 5V |
Max Power Consumption(W/m²) | 400 |
Average Power Consumption(W/m²) | 120 |
Storage Temperature(℃) | ﹣40~﹢85 |
Operating Temperature(℃) | ﹣20~﹢60 |
Storage Humidity(RH) | 10﹪~90﹪ |
Operating Humidity(RH) | 10﹪~90﹪ |
IP Rating | IP43 |
LED Lifetime(H) | 100,000 |
Installation Type | Pasting & Fixed |
Maintenance | Rear |
Certificate | CE/FCC |
