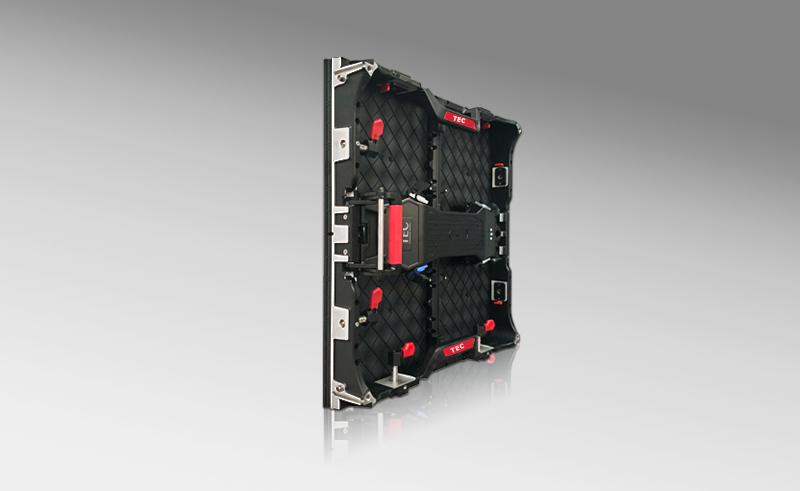

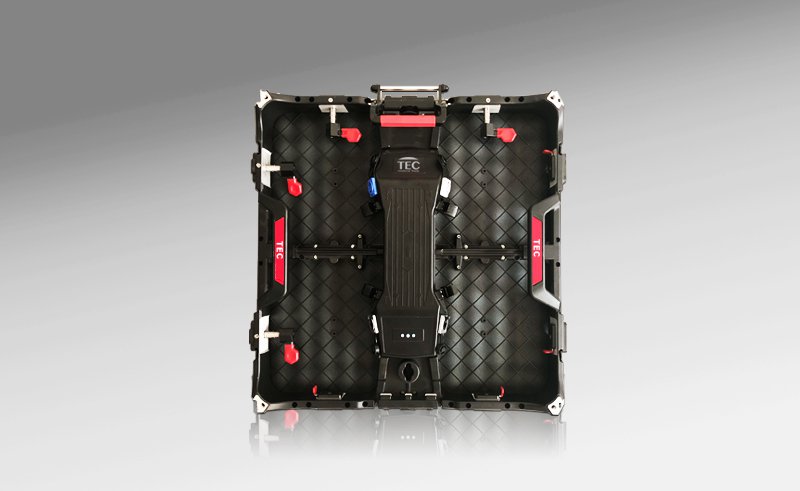

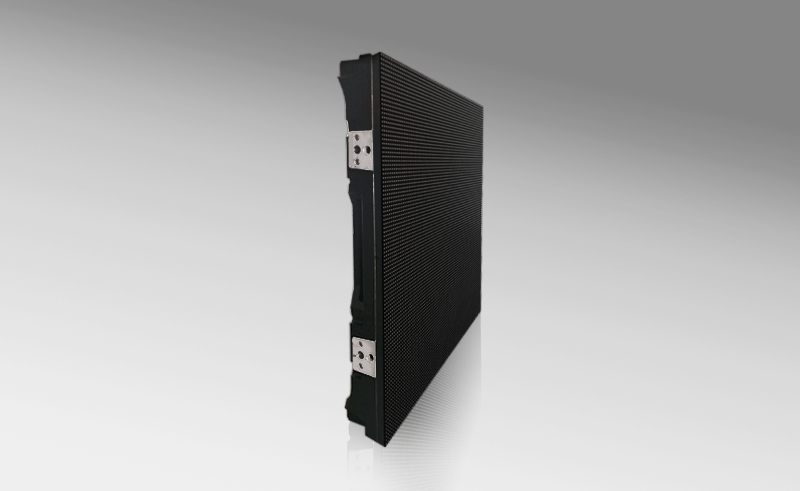

Rentit Plus Series Plus-3.8, P3.8mm Indoor Rental Cabinet LED video wall for concert touring


    Key Features:

    ● Cabinet size 576*576mm for all pitch.

    ● Smart locks for quick setup.

    ● Easy & fast maintenance.

    ● Touring system available.

    Applications:

      Rental LED panel for rental & fixed staging, live touring, corporate, exhibition.

  • Parameters


    Key Features:

    ● Cabinet size 576*576mm for all pitch.

    ● Smart locks for quick setup.

    ● Easy & fast maintenance.

    ● Touring system available.

    Applications:

      Rental LED panel for rental & fixed staging, live touring, corporate, exhibition.


Much Bigger, much faster.



intro576mmrentalledscreen





Rentit PLUS Series Rental LED Display is a strong, high definition and bigger size 576 x 576mm LED video display, its designed for staging rental market. This size of cabinet is compatible for all pixel pitch from outdoor 6mm to indoor 2mm  pitch video wall. Cabinet modular design allows you to maintain each parts LED displays easily. Its also integrated smart fast locks on top and side saves you much times on installation and tear down. Built with the highest standard in components including the LEDs, PCB, power supply and receiving card, Rentit PLUS series rental LED panel is the premier choice for your rental application.





Compact cabinet design



Simple & compact cabinet design, 73mm thicikness only.




cabinetsize576mmrentalledvideopanel







Module compatible



 Cabinet size 576*576mm for all pixel pitch 6mm, 4.8mm, 3.84mm, 3mm, 2.5mm and 2mm.




modulecompatiblerentitrentalledscreen576mm





Smart Lock System



Two steps installation only, one person can handle, easy and fast.



       Step 1.                                                  Step 2.

Align the two panels.                           Push the hook of lock.



12121









Fast & easy Maintenance



Cabinet modular design, modules & power box can be replaced easily with connectors.





easyaccess576mmrentalledvideopanel









High  Accurate Curve



Each cabinet has 15 degree curve lock allowing you to make concave & convex staging.



curvesetuprentitrentalledscreen576mm









Varies Installation Methods



     Hanging, floor stand, fixed installation are available.





installrentitrentalledscreen576mm







Touring Cases



Dolly & flight case loading options, fast ready for the next show.



transportrentitrentalledscreen576mm









IP64 Outdoor Application Design

Weather protection up to IP64, apply for outdoor rental and fixed installation applications.




outdoorapplicationrentitrentalledscreen576mm









Rentit Series P4.8mm outdoor LED display cases



Rentit series fast installation demo video






Pixel Pitch3.84mm
Pixel Density67,600
LEDSMD 2121
Cabinet Size576 * 576 mm
MaterialDie-casting
Brightness(Nits)1500
Refresh rate (Hz)3840
View angle (H/V°)>140
Contrast5000:1
Grey level14 Bit
Max power consump450 W/sq.m
Average power consum150 W/sq.m
Power InputAC 110-220V
Drive ModeConstant current
Life Time (hrs)100,000
IP Rating43
ApplicationIndoor
Operating temp-10 to 40℃
Storage temperature-20 to 60℃






Rentit Plus Series Plus-3.8, P3.8mm Indoor Rental Cabinet LED video wall for concert touring
Bigger panel for fast rental.
 Cabinet size 576*576mm for all pitch.
 Smart locks for quick setup.
 Easy & fast maintenance.

 Touring system available.

Applications:
Rental & fixed LED tiles for staging, live touring, corporate, exhibition.
