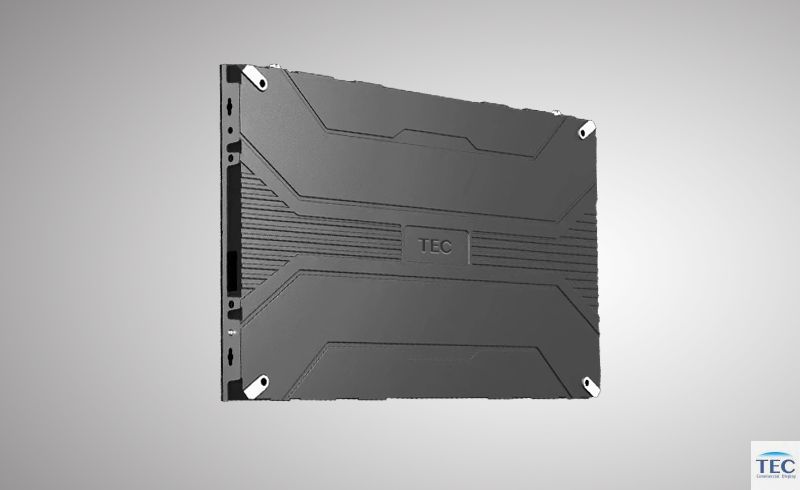

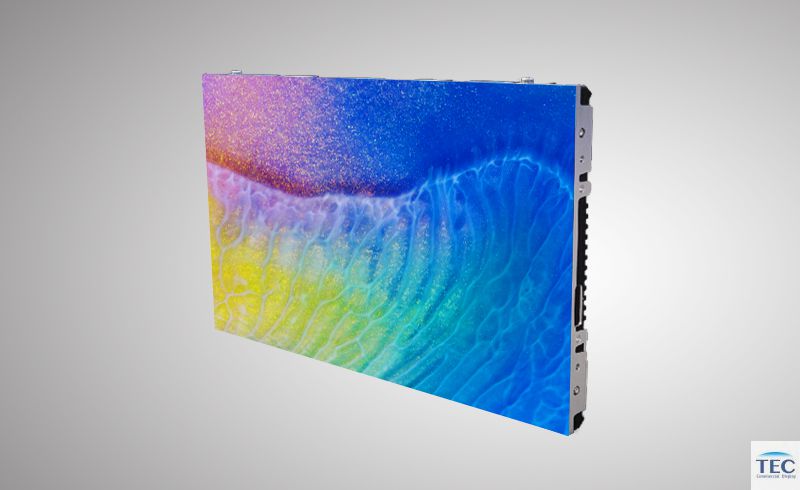

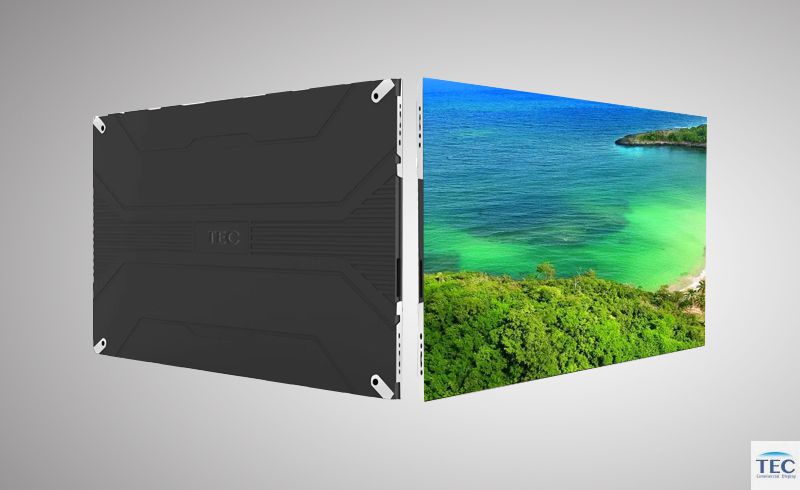

UHDit-1.2, Pitch 1.2mm HD Fine Pixel Pitch LED Video Wall indoor fixed installation 2K, 4K, 8K
Key Features:
● Cabinet 27 inch in 16:9 ratio;
● 32mm cabinet thickness;
● Power & signal backup;
● Highest Stability
Applications:
Fine pixel pitch LED HD video wall used in control room, meeting room, commend center, smart city
- Parameters
Key Features:
● Cabinet 27 inch in 16:9 ratio;
● 32mm cabinet thickness;
● Power & signal backup;
● Highest Stability
Applications:
Fine pixel pitch LED HD video wall used in control room, meeting room, commend center, smart city
The TEC new UHDit series fine pitch LED video wall is design for UHD video wall by adoption of common cathode technology and intelligent power management. The 27”, only 32mm thick video tiles with pixel pitch ranging from 0.9mm to 2.5mm deliver superior seamless video performance, and the whole series come with the best material selection and features to maximize the durability of LED video wall. With 16:9 aspect ratio tiles, you can easily create native 2K, 4K, or 8K video wall. The separate power and backup PSU ensure the highest reliability of video wall, what’s more, it saves 30% energy, and never stop.

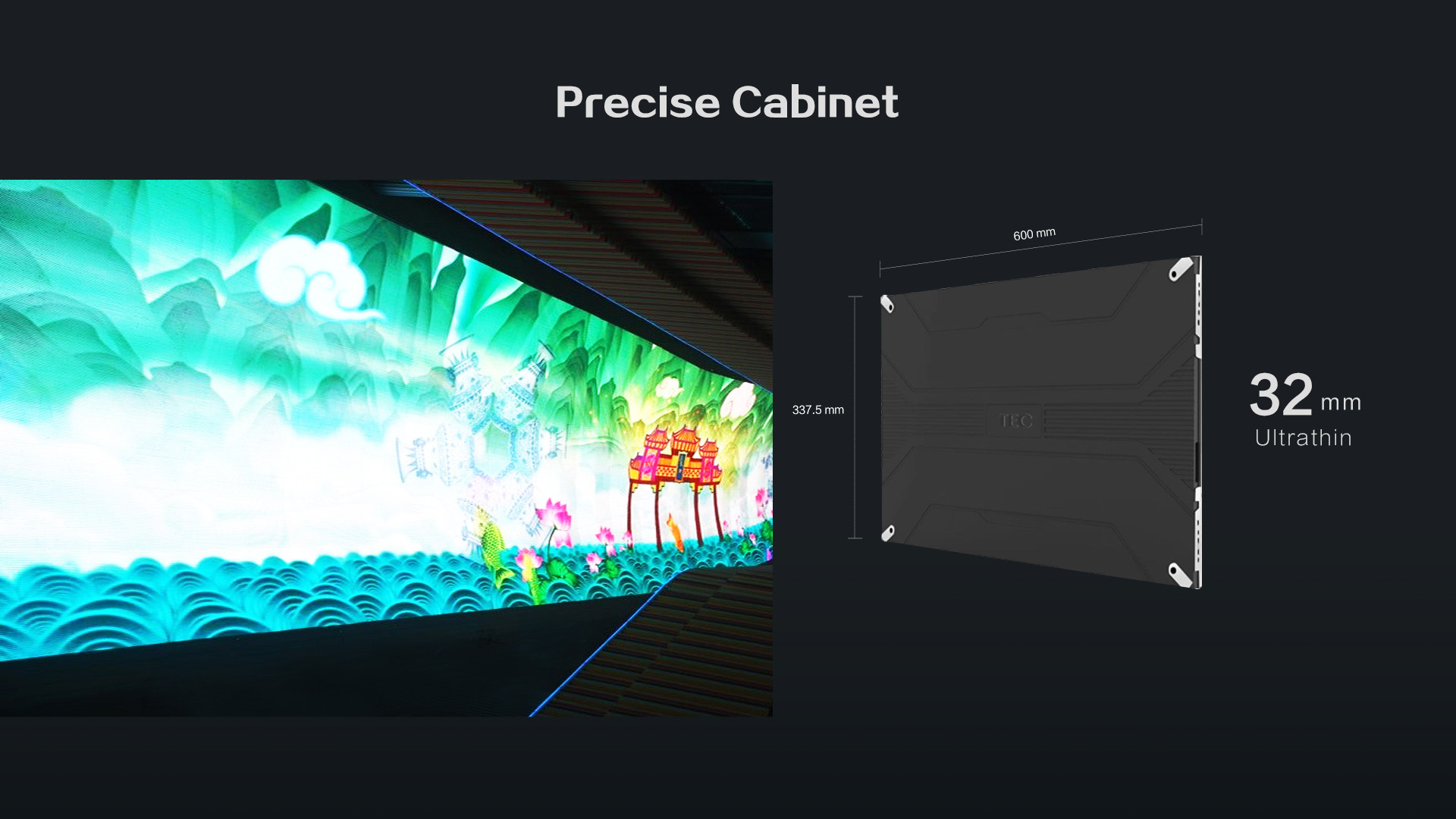

Compact & precise cabinet
Highly precise cabinet design, the thickness of cabinet is only 32mm, saving installation space and easy handle

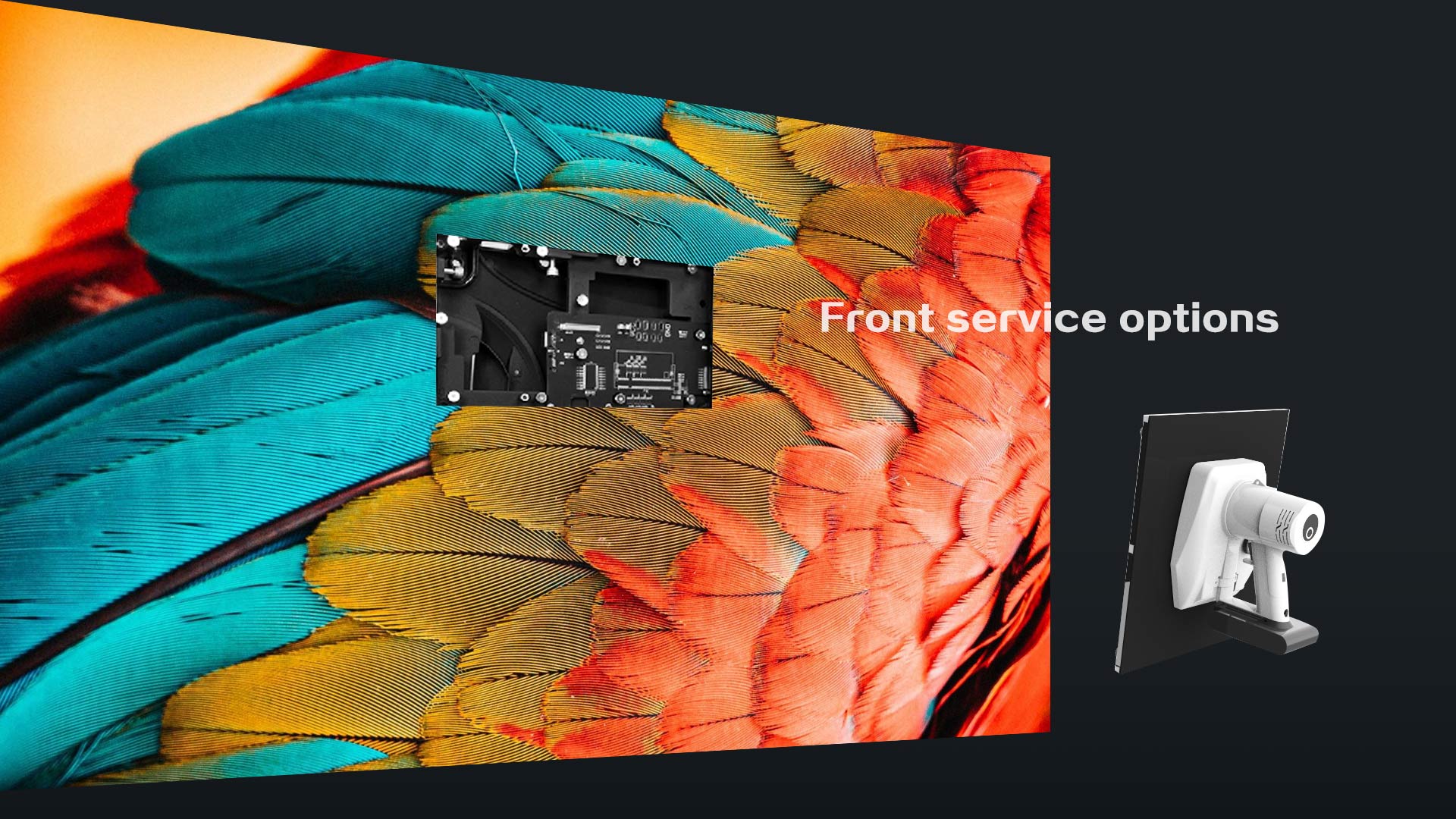

Front installation & maintenance
All the modules, power supply and HUB controller are front access, mount the video wall from front simply

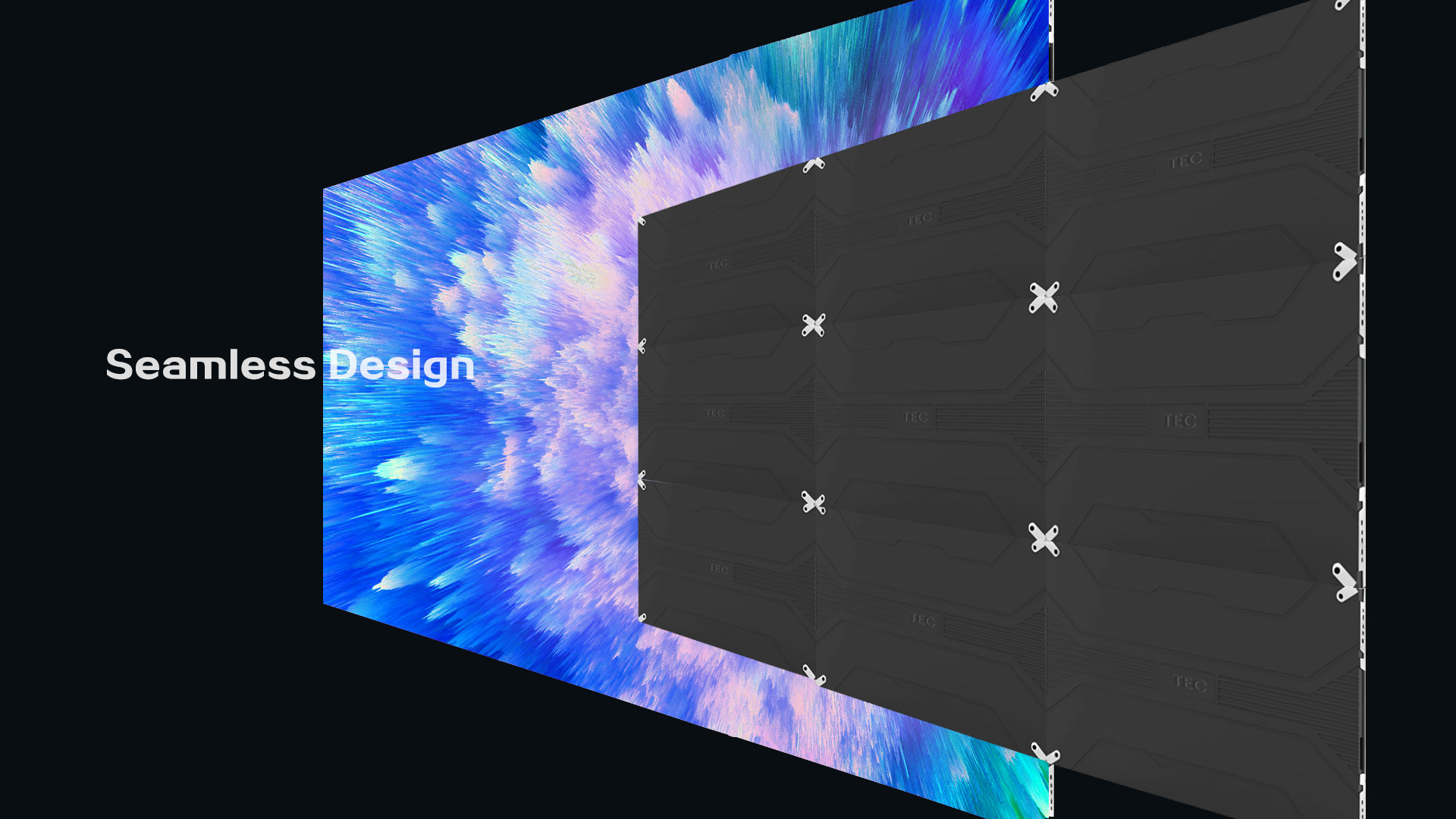

Seamless cabinet connection
CNC processing cabinet with location pin and connection plates ensures flat surface and seamless for big format LED video wall
Ultra HD video performance
Strict brand LED, IC, PSU selected allows you to enjoy perfect video visual performance and never stop

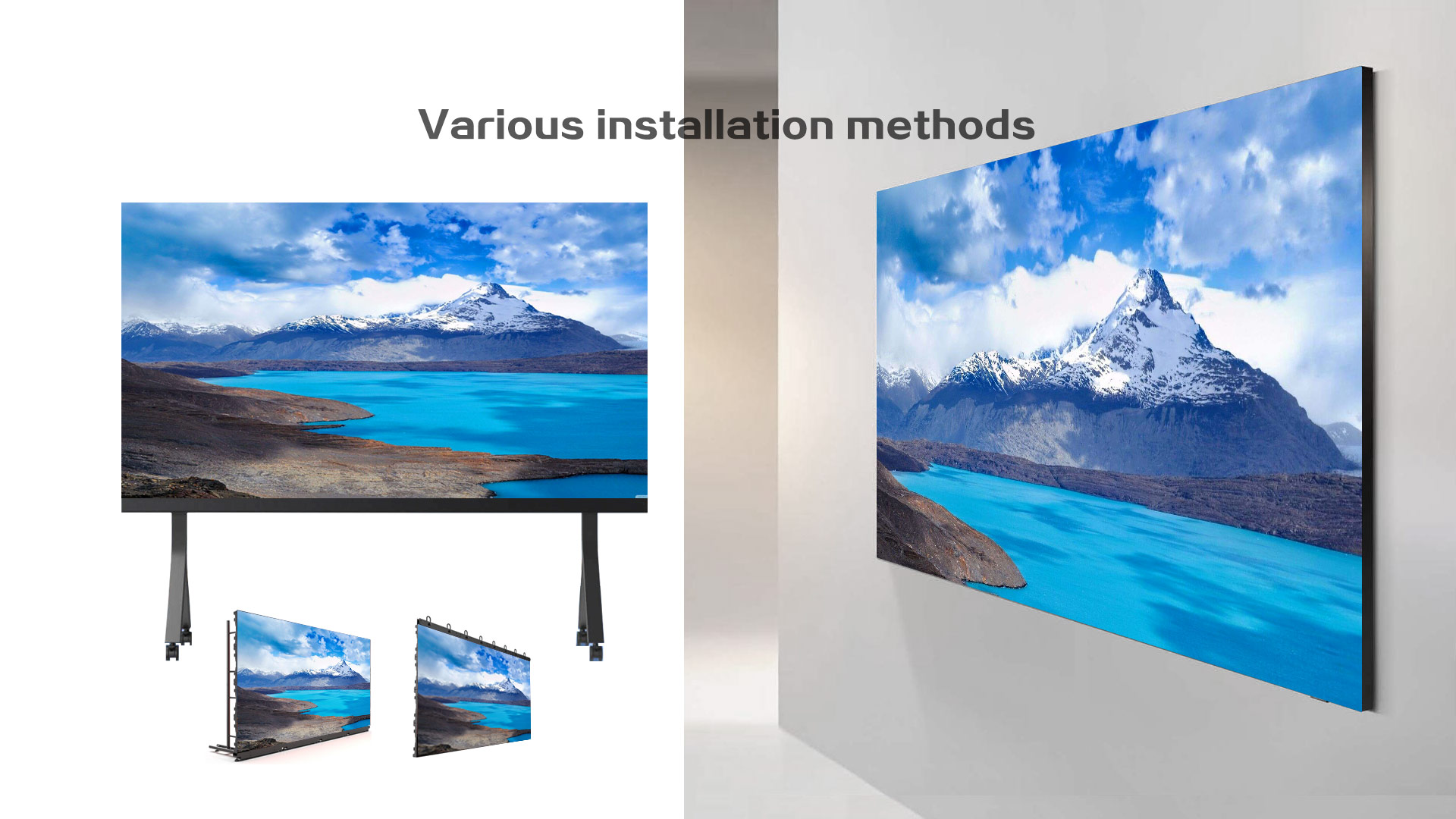

Flexible installation methods
More options for installation of cabinet, wall mount, hanging from ceiling, stacking on floor or support frame with wheels are all available.

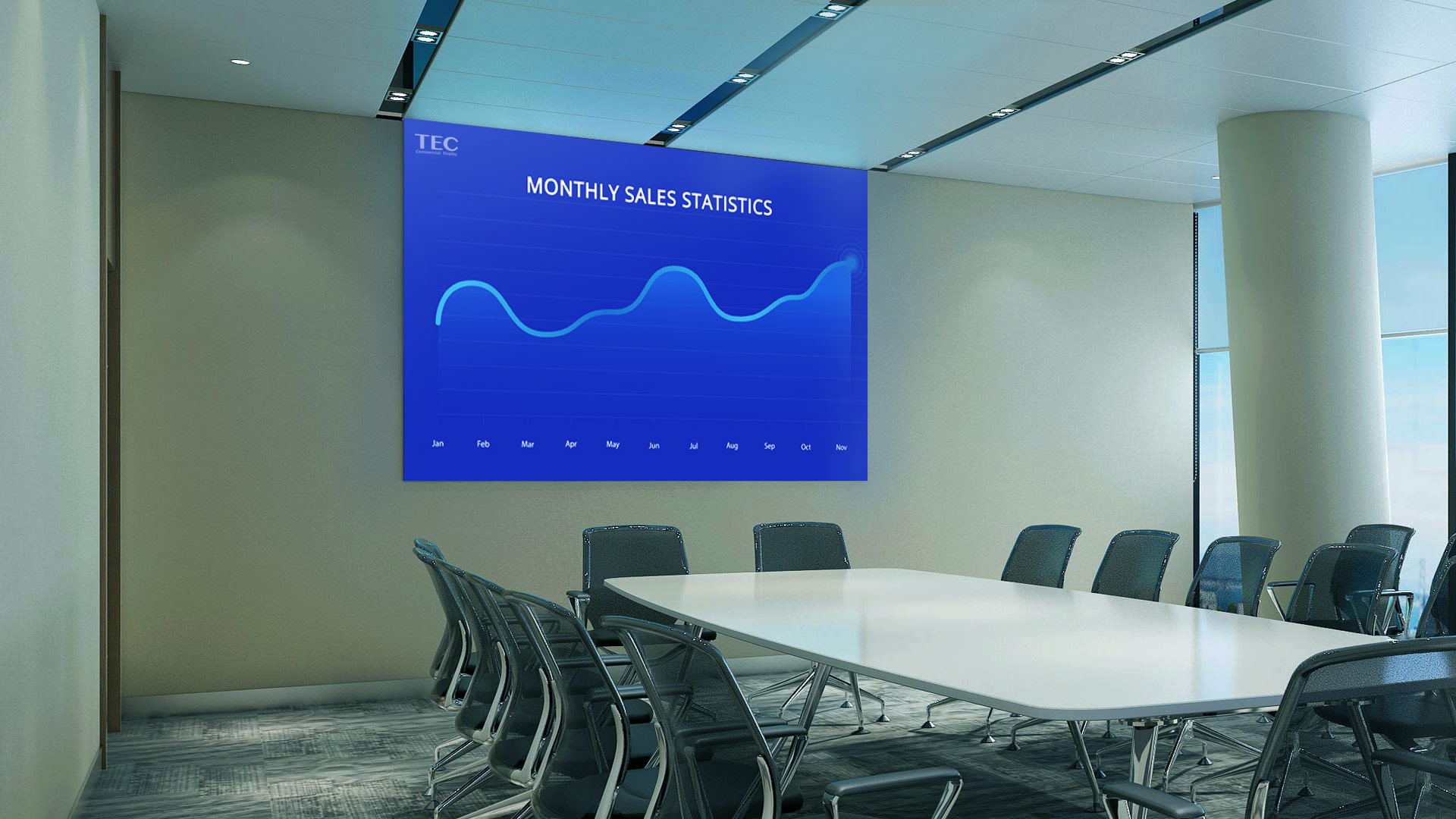

UHDIT600-1.2, Pitch 1.25mm HD fine pitch LED video wall conference room showcase
| Pixel Pitch | 1.25 mm |
| LED | SMD 0606 |
| Pixel Density | 640,000 |
| Module Size (mm) | 300*168.75 |
| Cabinet Size (mm) | 600 * 337.5 |
| Cabinet Resolution | 480 * 270 |
| Cabinet Thickness | 32 mm |
| Cabinet Weight | 5.4 Kgs per tile |
| Material | Die-casting |
| Service | Front Access |
| Brightness (nits) | 800 |
| Contrast | 5000:1 |
| View angle (H/V°) | >140 |
| Drive Mode | Constant current |
| Grey level | 14 Bit |
| Refresh rate (Hz) | 3840 |
| Power Input | AC 110-220V |
| Average power consum | 180 W/sq.m |
| Max power consump | 600 W/sq.m |
| Life Time (hrs) | 100,000 |
| IP Rating | 43 |
| Application | Indoor |
| Operating temp | -10 to 40℃ |
| Storage temperature | -20 to 60℃ |
