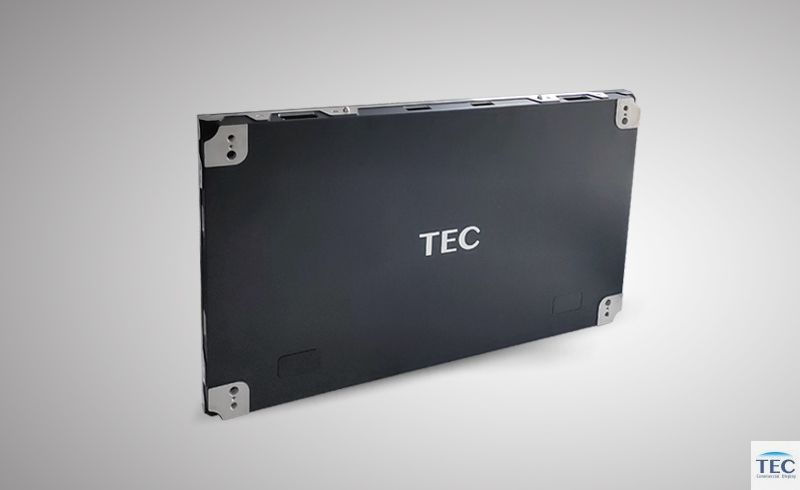

COBit-1.5, P1.56mm COB Fine pitch LED video wall screen control room solutions
Key Features:
● Ultra High Definition, 0.7mm-1.5mm;
● Strong Protection, Flip COB shield;
● High Contrast, 10,000:1, 160 view angle;
● Long Lifespan, Lower heating.
Applications:
Unltra fine pitch LED video wall design for High-end conference center rental, control room,commend center, smart city
- Parameters
Key Features:
● Ultra High Definition, 0.7mm-1.5mm;
● Strong Protection, Flip COB shield;
● High Contrast, 10,000:1, 160 view angle;
● Long Lifespan, Lower heating.
Applications:
Unltra fine pitch LED video wall design for High-end conference center rental, control room,commend center, smart city
Chip-on-Board P1.5mm Indoor Fixed Fine Pitch LED Video Wall
The COBit series Ultra fine pitch LED video wall is released in 2022, which designed for UHD video wall equipped with flip COB protection modules. The video panel with pixel pitch ranging from 0.7mm to 1.5mm deliver highest definition video performance even at small size, and the whole series come with all the features of flip COB to maximize vivid video effects,such as 10,000:1 contrast, 160 degree vide angle. The lower heating COB modules without wires ensures the highest reliability and longer lifespan of video wall. With 16:9 aspect ratio panel, you can easily create native 2K, 4K, or 8K video wall screen with any pixel pitch.
Powered by Flip COB Tech
The modules with flip COB has the strongest protection, it is anti-crash, waterproof for any environment installation.
UHD Perfect Performance
COB modules has features with 10,000:1 contrast, 160 degree view angle, which ensure the vivid video performance experience.
Longer lifespan with Flip COB
The flip COB technology is lower heating, excellent dissipation, energy-saving, which ensures long lifespan of LED screens.
Seamless Cabinet
High precision CNC cabinet integral processing, it’s strong, and seamless after cabinet connection, one cabinet for all pitch.
Fast installation
Quick connector,location pin and horizontal adjustment design, saving time and labor cost on installation.

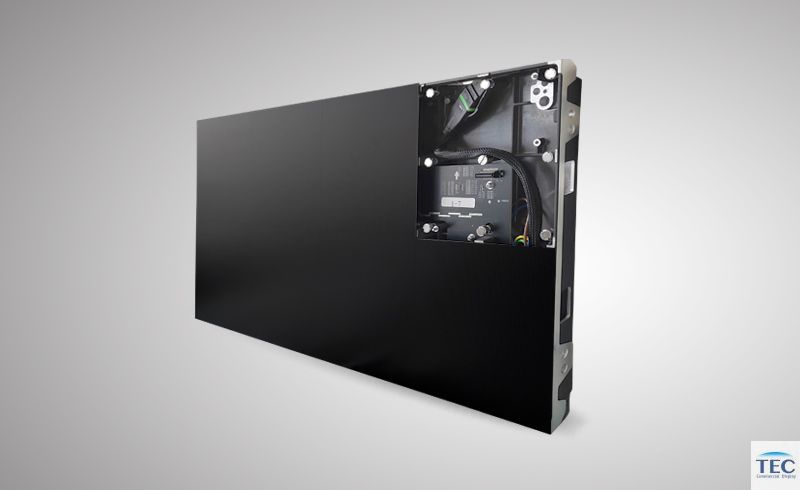

Front & Rear Service Options
Front installation, front maintenance and rear installation, front maintenance are both available.
Various installation methods
Portable frame, wall mount, hanging,stacking installation are all available.
COB fine pitch LED video wall case
| Pixel Pitch | 1.56 mm |
| LED | COB, 1R1G1B |
| Pixel Density | 409,600 |
| Module Size (mm) | 150*168.75 |
| Cabinet Size (mm) | 600 * 337.5 |
| Cabinet Resolution | 384 * 216 |
| Cabinet Thickness | 35 mm |
| Cabinet Weight | 4.6 Kgs per tile |
| Material | Die-casting |
| Service | Front Access |
| Brightness (nits) | 800 |
| Contrast | 8000:1 |
| View angle (H/V°) | 160 |
| Drive Mode | Constant current |
| Grey level | 14 Bit |
| Refresh rate (Hz) | 3840 |
| Power Input | AC 100-240V |
| Average power consum | 100 W/sq.m |
| Max power consump | 300 W/sq.m |
| Life Time (hrs) | 100,000 |
| IP Rating | 44 |
| Application | Indoor |
| Operating temp | -10 to 40℃ |
| Storage temperature | -20 to 60℃ |
