PRODUCTS DETAIL

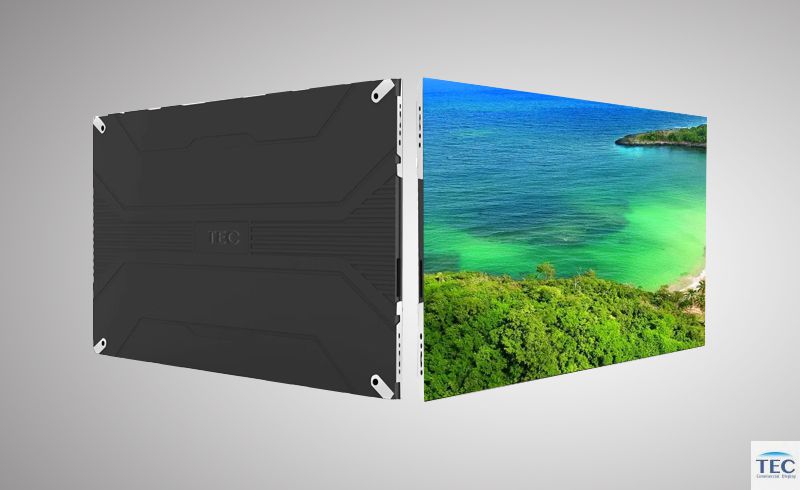

UHDit-2.3, Pitch 2.3mm Front Access Indoor Fixed Install Small Pitch LED Video Display


    Key Features:

    ● Cabinet 27 inch in 16:9 ratio;

    ● 32mm cabinet thickness;

    ● Power & signal backup;

    ● Highest Stability

    Applications:

      2K Narrow pixel pitch LED video wall used in control room, meeting room, commend center, smart city

  • Parameters


    Key Features:

    ● Cabinet 27 inch in 16:9 ratio;

    ● 32mm cabinet thickness;

    ● Power & signal backup;

    ● Highest Stability

    Applications:

      2K Narrow pixel pitch LED video wall used in control room, meeting room, commend center, smart city


The TEC new UHDit series fine pitch LED video wall is design for UHD video wall by adoption of common cathode technology and intelligent power management. The 27”, only 32mm thick video tiles with pixel pitch ranging from 0.9mm to 2.5mm deliver superior seamless video performance, and the whole series come with the best material selection and features to maximize the durability of LED video wall. With 16:9 aspect ratio tiles, you can easily create native 2K, 4K, or 8K video wall. The separate power and backup PSU ensure the highest reliability of video wall, what’s more, it saves 30% energy, and never stop.



Compact & precise cabinet

Highly precise cabinet design, the thickness of cabinet is only 32mm, saving installation space and easy handle






Front installation & maintenance

All the modules, power supply and HUB controller are front access, mount the video wall from front simply






Seamless cabinet connection

CNC processing cabinet with location pin and connection plates ensures flat surface and seamless for big format LED video wall






Ultra HD video performance

Strict brand LED, IC, PSU selected allows you to enjoy perfect video visual performance and never stop





Flexible installation methods

More options for installation of cabinet, wall mount, hanging from ceiling, stacking on floor or support frame with wheels are all available.





UHDIT600-1.2, Pitch 1.25mm HD fine pitch LED video wall conference room showcase





Pixel Pitch2.34 mm
LEDSMD 2020
Pixel Density182,600
Module Size (mm)300*168.75
Cabinet Size (mm)600 * 337.5
Cabinet Resolution256 * 144
Cabinet Thickness32 mm
Cabinet Weight5.2 Kgs per tile
MaterialDie-casting
ServiceFront Access
Brightness (nits)800
Contrast5000:1
View angle (H/V°)>140
Drive ModeConstant current
Grey level14 Bit
Refresh rate (Hz)3840
Power InputAC 110-220V
Average power consum180 W/sq.m
Max power consump600 W/sq.m
Life Time (hrs)100,000
IP Rating43
ApplicationIndoor
Operating temp-10 to 40℃
Storage temperature-20 to 60℃






UHDit-2.3, Pitch 2.3mm Front Access Indoor Fixed Install Small Pitch LED Video Display
Cabinet 27 inch in 16:9 ratio;

ICE Screen with common Cathode;

Intelligent Power Management;

Highest Stability

Applications: LED video wall in control room, meeting room, commend center, smart city
