COBit-0.78, COB Ultra fine pitch LED video wall 0.78mm 2K, 4K, 8K high definition video solutions

    Key Features:

    ● Ultra High Definition, 0.7mm-1.5mm;

    ● Strong Protection, Flip COB shield;

    ● High Contrast, 10,000:1, 160 view angle;

    ● Long Lifespan, Lower heating.

    Applications:

      Ultra fine pitch Chip-on-board LED video wall design for product lauch,brand automobile store, stadium, concert hall


  • Parameters

    Key Features:

    ● Ultra High Definition, 0.7mm-1.5mm;

    ● Strong Protection, Flip COB shield;

    ● High Contrast, 10,000:1, 160 view angle;

    ● Long Lifespan, Lower heating.

    Applications:

      Ultra fine pitch Chip-on-board LED video wall design for product lauch,brand automobile store, stadium, concert hall

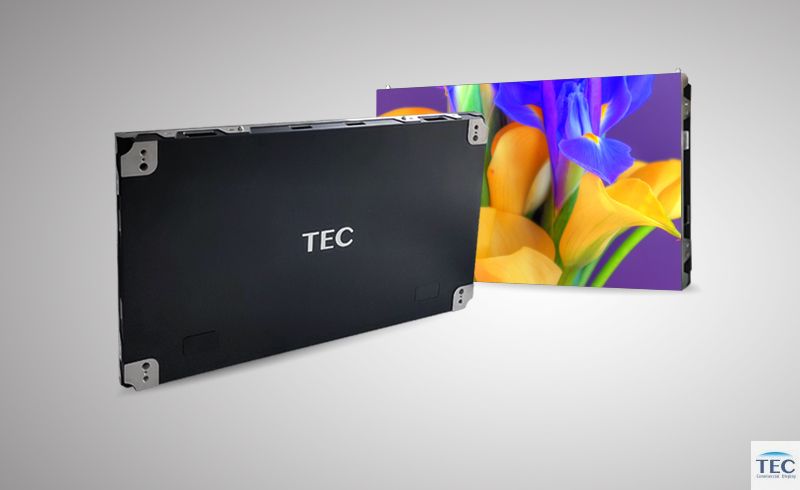

P0.78mm COB Fine Pitch LED Video Wall


The COBit series Ultra fine pitch LED video wall is released in 2022, which designed for UHD video wall equipped with flip COB protection modules. The video panel with pixel pitch ranging from 0.7mm to 1.5mm deliver highest definition video performance even at small size, and the whole series come with all the features of flip COB to maximize vivid video effects,such as 10,000:1 contrast, 160 degree vide angle. The lower heating COB modules without wires ensures the highest reliability and longer lifespan of video wall. With 16:9 aspect ratio panel, you can easily create native 2K, 4K, or 8K video wall screen with any pixel pitch.





Powered by Flip COB Tech

The modules with flip COB has the strongest protection, it is anti-crash, waterproof for any environment installation.




UHD Perfect Performance

COB modules has features with 10,000:1 contrast, 160 degree view angle, which ensure the vivid video performance experience.





Longer lifespan with Flip COB

The flip COB technology is lower heating, excellent dissipation, energy-saving, which ensures long lifespan of LED screens.





Seamless Cabinet

High precision CNC cabinet integral processing, it’s strong, and seamless after cabinet connection, one cabinet for all pitch.




Fast installation

Quick connector,location pin and horizontal adjustment design, saving time and labor cost on installation.

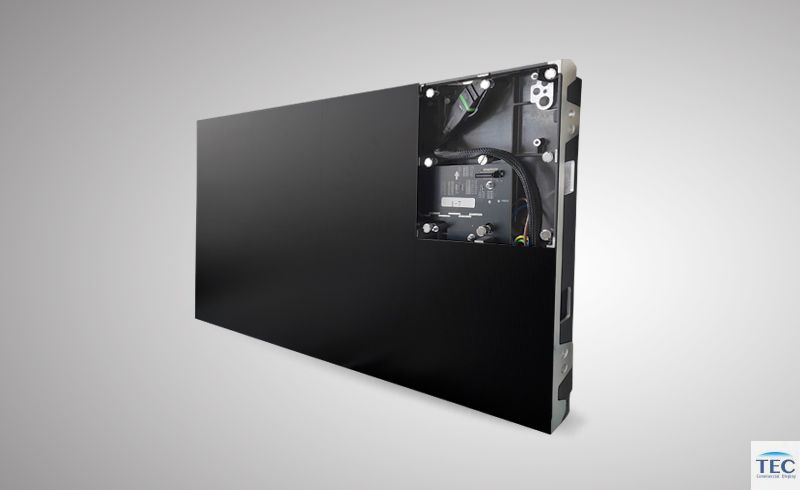

Front & Rear Service Options

Front installation, front maintenance and rear installation, front maintenance are both available.





Various installation methods

 Portable frame, wall mount, hanging,stacking installation are all available.





COB fine pitch LED video wall case




  Pixel Pitch0.78 mm
  LEDCOB, 1R1G1B
  Pixel Density1,638,400
  Module Size (mm)150*112.5
  Cabinet Size (mm)600 * 337.5
  Cabinet Resolution768 * 432
  Cabinet Thickness35 mm
  Cabinet Weight4.6 Kgs per tile
   MaterialDie-casting
   ServiceFront Access
Brightness (nits)800
Contrast8000:1
View angle (H/V°)160
Drive ModeConstant current
Grey level14 Bit
Refresh rate (Hz)3840
Power InputAC 100-240V
Average power consum145 W/sq.m
Max power consump435 W/sq.m
Life Time (hrs)100,000
IP Rating44
ApplicationIndoor
Operating temp-10 to 40℃
Storage temperature-20 to 60℃





COBit-0.78, COB Ultra fine pitch LED video wall 0.78mm 2K, 4K, 8K high definition video solutions
Strong Protection, Flip COB shield
Ultra High Definition, 0.7mm-1.5mm
High Contrast, 15,000:1
Wider View angle, 160 degree
Long Lifespan, Lower heating
