UHDit-1.8 Pro P1.875mm Narrow pitch LED video display wall, control room HD video screen 2K, 4K, 8K
Key Features:
● Ultra thin cabinet thickness 27mm;
● Seamless cabinet connection;
● Curve, 90° corner installation;
● Energy-saving, long life-span.
Applications:
Professinal fine pitch LED video wall design for professional control room,commend center, smart city
- Parameters
Key Features:
● Ultra thin cabinet thickness 27mm;
● Seamless cabinet connection;
● Curve, 90° corner installation;
● Energy-saving, long life-span.
Applications:
Professinal fine pitch LED video wall design for professional control room,commend center, smart city
P1.875mm Front Access Fine Pitch LED Video Wall
The UHDit Pro series is TEC's third generation fine pitch LED video display, which is applied for professional commercial LED video displays. The max thickness of cabinet is only 27mm, and 27” inch panel size with pixel pitch ranging from 0.7mm to 1.8mm is flexible for most high-end environment applications, e.g. control room, corporate boardroom or TV studio. Compact design, easy installation, and low-cost maintenance with high quality components creates ultra HD video performance and unequaled visual qualities.

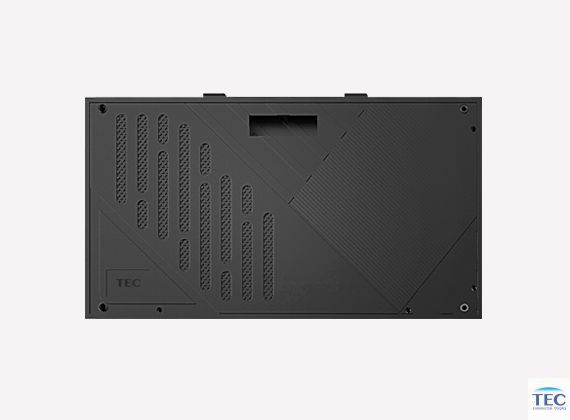

Compact & precise cabinet design
Compact cabinet design, the thickness of cabinet is only 27mm, 4.5 kgs per panel, easy to handle with one hand.

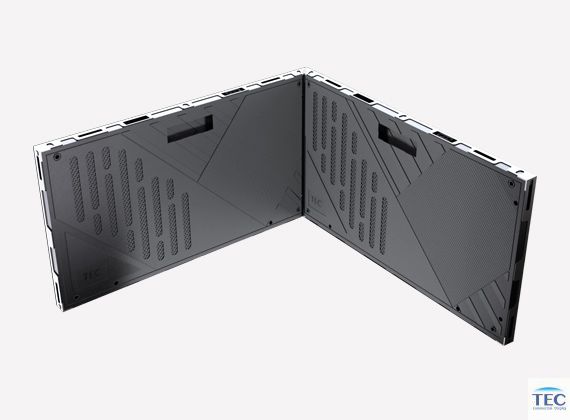

Curve or corner cabinet design
The radian edge of cabinet design allows you to setup inner, outer arc or 90° corner LED video wall
Front installation & maintenance
All the modules, power supply and HUB controller are front access, saving installation space and maintenance time
Seamless cabinet connection
CNC processing cabinet with location pin and adjustment devices ensures flat surface and seamless for big format LED video wall
Ultra HD video performance
Strict control on brand LED, IC, PSU allows you to enjoy perfect video visual performance and never stop
Flexible installation methods
Various installation, e.g., wall mount, hanging from ceiling, stacking on floor or support frame with wheels are all available.
UHDIT-1.2 Pro Pitch 1.25mm HD fine pitch LED video wall conference room showcase
| Pixel Pitch | 1.87 mm |
| LED | SMD 1515 |
| Pixel Density | 284,444 |
| Module Size (mm) | 300*168.75 |
| Cabinet Size (mm) | 600 * 337.5 |
| Cabinet Resolution | 320 * 180 |
| Cabinet Thickness | 27 mm |
| Cabinet Weight | 4.5 Kgs per tile |
| Material | Die-casting |
| Service | Front Access |
| Brightness (nits) | 600 |
| Contrast | 10000:1 |
| View angle (H/V°) | 170 |
| Drive Mode | Constant current |
| Grey level | 16 Bit |
| Refresh rate (Hz) | 3840 |
| Power Input | AC 100-260V |
| Average power consum | 100 W/sq.m |
| Max power consump | 350 W/sq.m |
| Life Time (hrs) | 100,000 |
| IP Rating | 31 |
| Application | Indoor |
| Operating temp | -10 to 40℃ |
| Storage temperature | -20 to 60℃ |
