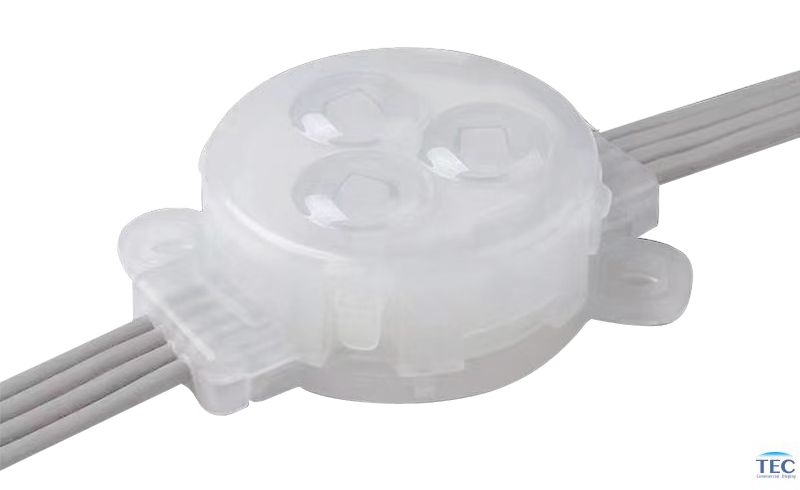

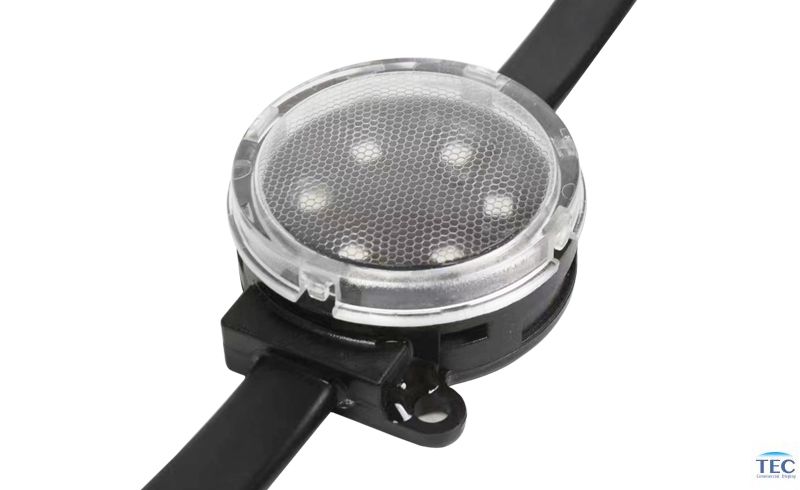

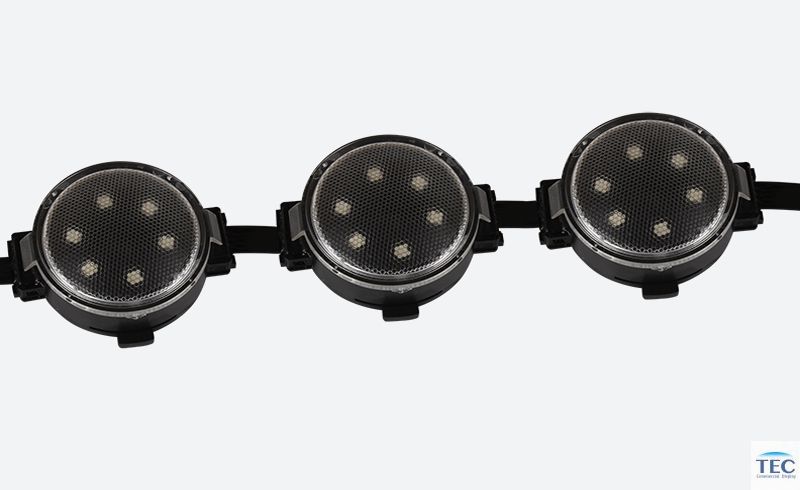

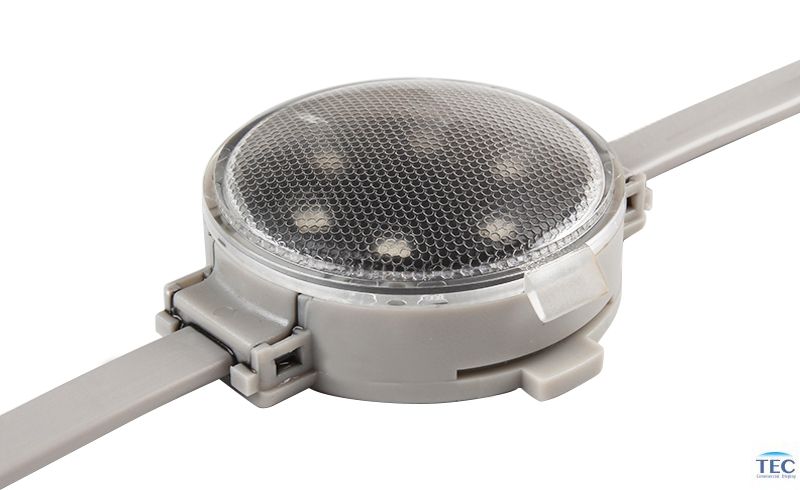

Dotit-37, P37.5mm Outdoor LED mesh display for building advertising media facade
Key Features:
● Soft string-based dot for flexible installation.
● Customized pixel pitch and string length.
● IP67 rated for permanent outdoor or indoor use.
● Simple & fast connect by fast-lock cables.
● Varies mounting options: Clips, brackets or profiles.
● Application:
Flexible LED dot mesh curtain for outdoor architecture lighting, building facade video media, stage rental.
- Parameters
Key Features:
● Soft string-based dot for flexible installation.
● Customized pixel pitch and string length.
● IP67 rated for permanent outdoor or indoor use.
● Simple & fast connect by fast-lock cables.
● Varies mounting options: Clips, brackets or profiles.
● Application:
Flexible LED dot mesh curtain for outdoor architecture lighting, building facade video media, stage rental.
TEC Dotit series media facade is a kind of lightweight and individual controllable dot string LED video screen, which is applied for stage rental and building media facade. Super bright LED dot, soft string, high transparency, varies installation methods turn any surface of building easily into advertising video media.
The pixel pitch and string length are fully custom made suit for any project video solutions, such as indoors or outdoor architecture facades, stage designs, ceilings or any other structures.
| Pixel | 37.5mm |
| LED | SMD 2727 |
| String Size | Custom made |
| Transparency | 80% |
| Weight (㎏/㎡) | 3.4 |
| Brightness (Nits) | 6,000 |
| Refresh rate (Hz) | 3840 |
| View angle (H/V°) | >140 |
| Driving Type | Static |
| Contrast | 5000:1 |
| Serviceability | Front & Rear |
| Power Input | AC 110-220V |
| Max Power Consumption | 600 W/m² |
| Avg Power Consumption | 180 W/m² |
| Life Time (hrs) | 100,000 |
| Operating temp | -10 to 40℃ |
| Storage temperature | -20 to 60℃ |
| IP Rating | 65 |
| Application | Outdoor |
| Certificate | CE, RoHS |
