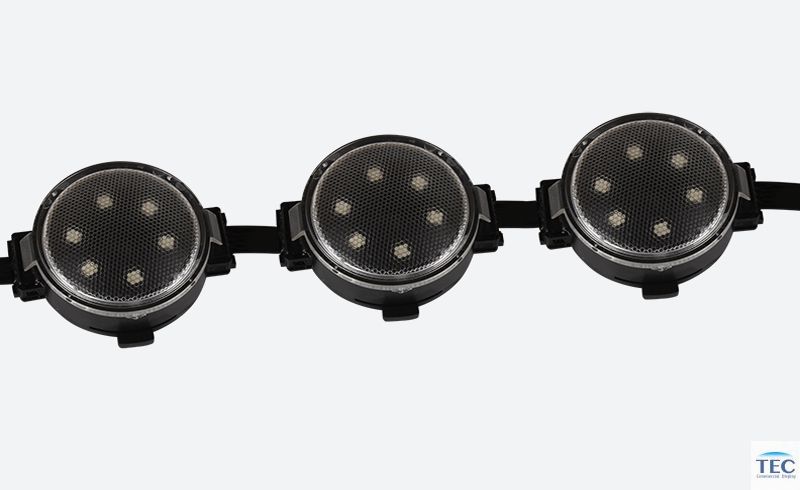

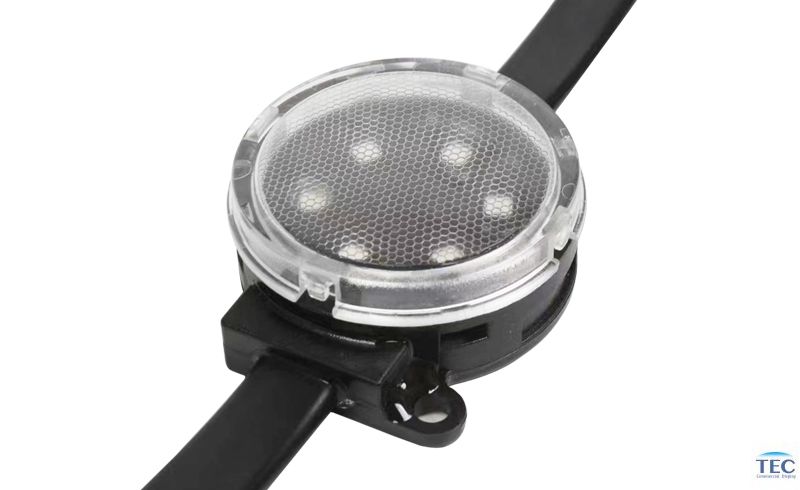

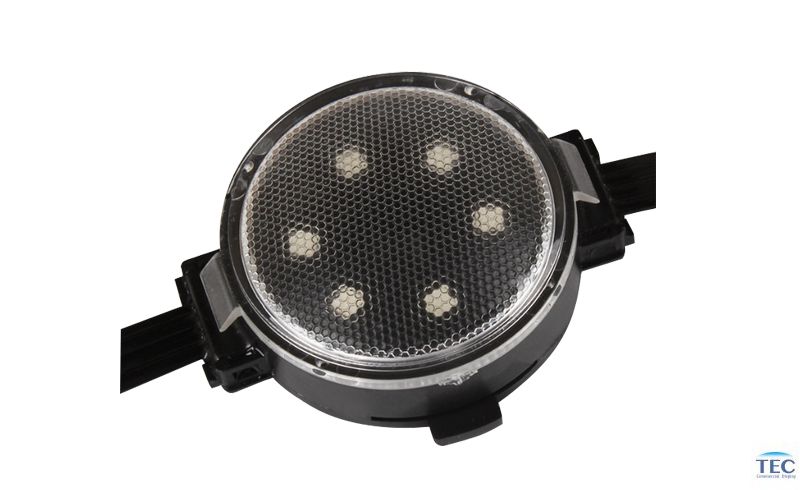

Dotit-50, P50mm Outdoor LED curtain display for building advertising media facade


    Key Features:

    ● Soft string-based dot for flexible installation.

    ● Customized pixel pitch and string length.

    ● IP67 rated for permanent outdoor or indoor use.

    ● Simple & fast connect by fast-lock cables.

    ● Varies mounting options: Clips, brackets or profiles.

    ● Application:

      Flexible LED dot mesh curtain for outdoor architecture lighting, building facade video media, stage rental.

  • Parameters


    Key Features:

    ● Soft string-based dot for flexible installation.

    ● Customized pixel pitch and string length.

    ● IP67 rated for permanent outdoor or indoor use.

    ● Simple & fast connect by fast-lock cables.

    ● Varies mounting options: Clips, brackets or profiles.

    ● Application:

      Flexible LED dot mesh curtain for outdoor architecture lighting, building facade video media, stage rental.

TEC Dotit series media facade is a kind of lightweight and individual controllable dot string LED video screen, which is applied for stage rental and building media facade. Super bright LED dot, soft string, high transparency, varies installation methods turn any surface of building easily into advertising video media.

The pixel pitch and string length are fully custom made suit for any project video solutions, such as indoors or outdoor architecture facades, stage designs, ceilings or any other structures.







2customsizedotstringledcurtainscreen



3outdoorappdotstringledcurtainscreen



4stringlengthdotstringledcurtainscreen



5eachreplacementdotstringledcurtainscreen



6rentalcurtaindotstringledcurtainscreen



7installationdotstringledcurtainscreen








Pixel 50mm
LEDSMD 3535
String SizeCustom made
Transparency80%
Weight (㎏/㎡)3.2
Brightness (Nits)6,000
Refresh rate (Hz)3840
View angle (H/V°)>140
Driving TypeStatic
Contrast5000:1
ServiceabilityFront & Rear
Power InputAC 110-220V
Max Power Consumption500 W/m²
Avg Power Consumption150 W/m²
Life Time (hrs)100,000
Operating temp-10 to 40℃
Storage temperature-20 to 60℃
IP Rating65
ApplicationOutdoor
CertificateCE, RoHS






Dotit-50, P50mm Outdoor LED curtain display for building advertising media facade
* Soft string-based dot for flexible installation.

* Customized pixel pitch and string length.

* IP67 rated for permanent outdoor or indoor use.

* Simple & fast connect by fast-lock cables.

* Varies mounting options: Clips, brackets or profiles.

* Ap
