Glassit-2.6, P2.6 Fine Pitch Transparent Window Glass Video Wall High Brightness Outdoor Advertising Billboard
Key features:
High Transparency, High brightness,
High Definition for fine pitch video wall,
Front & rear access service,
Strong cabinet, high-end quality ensuring durable.
Applications:
Fixed & rental transparent LED display for indoor & outdoor glass media advertising, exhibition, shopping center, store window.
- Parameters
Key features:
High Transparency, High brightness,
High Definition for fine pitch video wall,
Front & rear access service,
Strong cabinet, high-end quality ensuring durable.
Applications:
Fixed & rental transparent LED display for indoor & outdoor glass media advertising, exhibition, shopping center, store window.
Glassit Series P2.6/5.2mm Outdoor Brightness Transparent LED Display
Outdoor Brightness, High Definition, Durable
Glassit Series Indoor Transparent Glass LED Display is 70-80% transparency which can be mounted behind window glass wall without effecting natural light in your place. With 6,000 nits brightness, high definition video definition, Glassit series Indoor Transparent LED display turn your window glass into a vivid outdoor digital billboard. Its high refresh rate and contrast create a dynamic video experience to catch your customers’ eyes when they come across your locations. Glassit Series Indoor Transparent LED Display is the best choice for any indoor window glass video solutions, such as retail stores, shopping mall, building wall facade, showroom or exhibition.

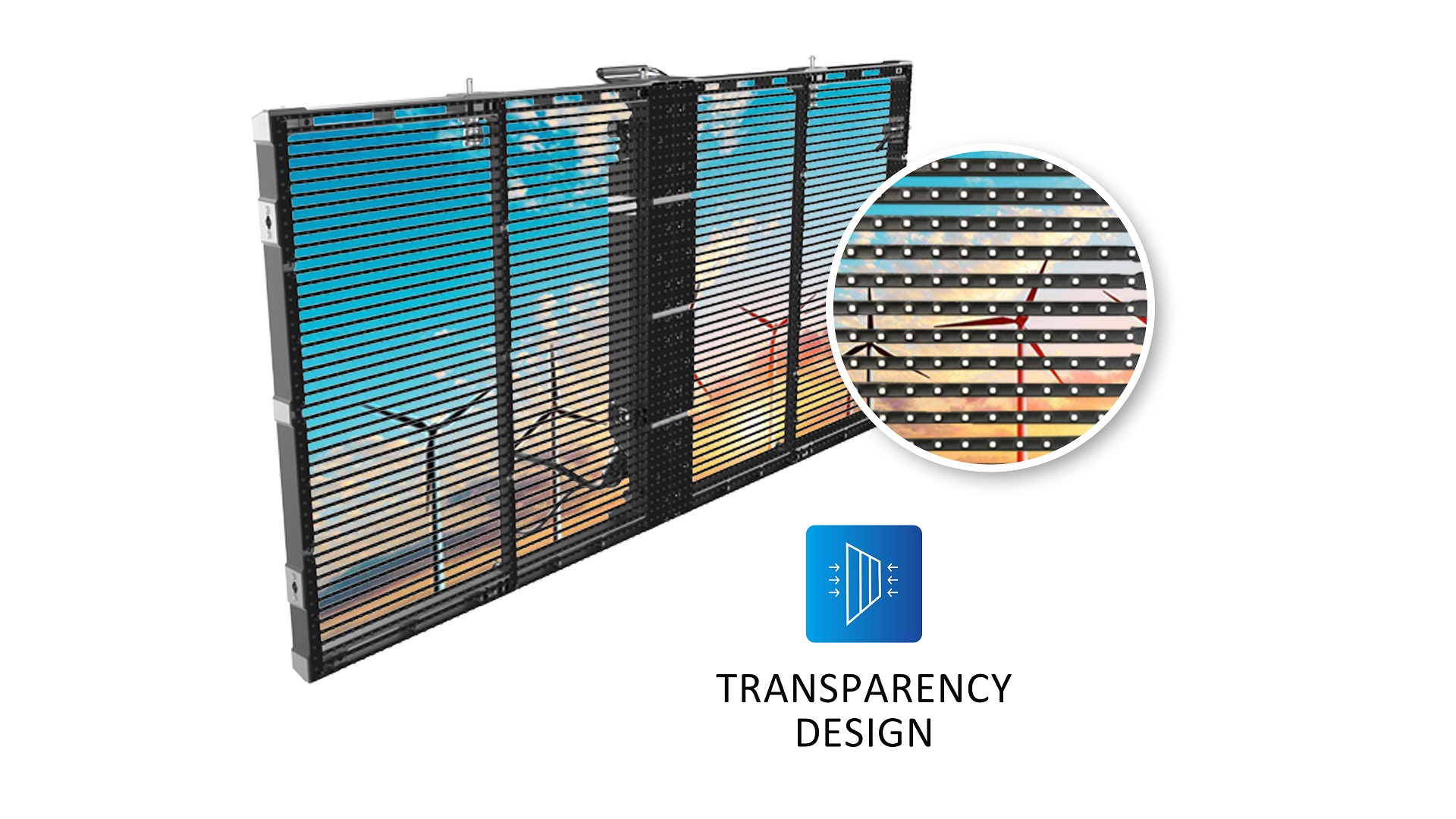

80% Transparency
Up to 80% rate transparency without effecting natural light inside of your space.
Outdoor Brightness
High brightness up to 6,000 nits, which is suitable for outdoor window glass wall fixed applications.
Quick lock for fast installation
Cabinet quick lock,location pin & cable connection design, saving time for touring or fixed installation.

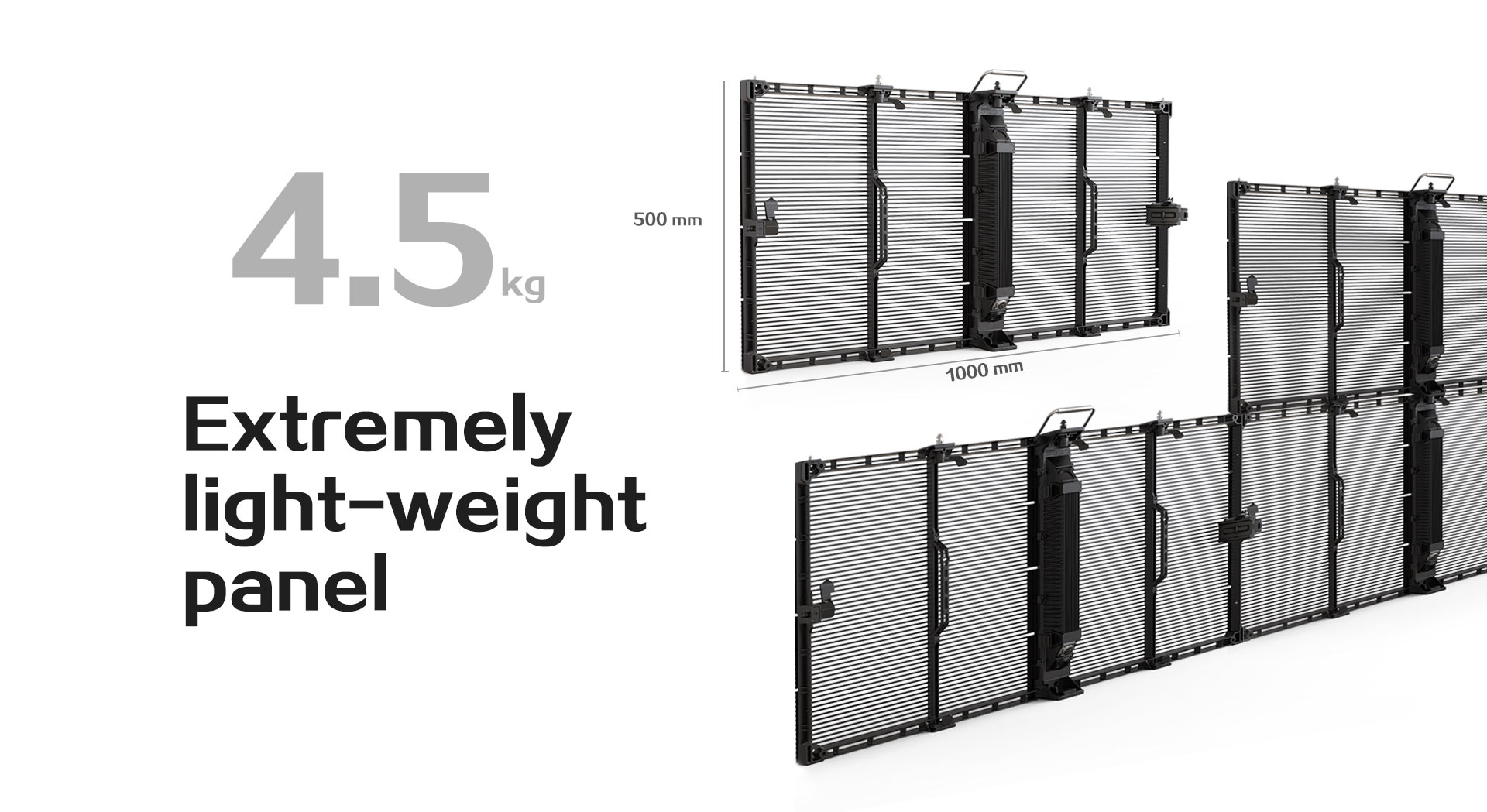

Extremely light-weight panel
Every 500*1000mm cabinet is only 4.5 Kgs, it's easy to handle by person when you install.
Front & rear access for maintenance
Modular design, LED modules, controller can be replaced from front and rear.
Varies installation methods
Floor stand, Ceiling hanging, Glass wall mount fixed installation are all available.
Glassit-3/7, Pitch 3.9mm indoor transparent LED screen testroom
Glassit 10, P10mm Outdoor Transparent LED Video Panel video demo
| Pitch | X: 2.6, Y: 5.2mm |
| LED | SMD 1415 |
| Pixel Density | 73,728 |
| Cabinet Size (mm) | W 1000 * H 500 |
| Cabinet Thickness | 80mm |
| Cabinet Weight | 4.5 Kgs |
| Transparency | 50% |
| Brightness (nits) | 4000 |
| Material | Aluminum |
| Serviceability | Front & Rear |
| Max power consump | 800 W/㎡ |
| Average power consum | 220 W/㎡ |
| Refresh rate (Hz) | 3840 |
| Grey level | 14 Bit |
| Drive Mode | Constant current |
| Power Input | AC 110-220V |
| Life Time (hrs) | 100,000 |
| Contrast | 5000:1 |
| View angle (H/V°) | >140 |
| IP Rating | 54 |
| Application | Indoor |
| Operating temp | -10 to 40℃ |
| Storage temperature | -20 to 60℃ |
