PRODUCTS DETAIL

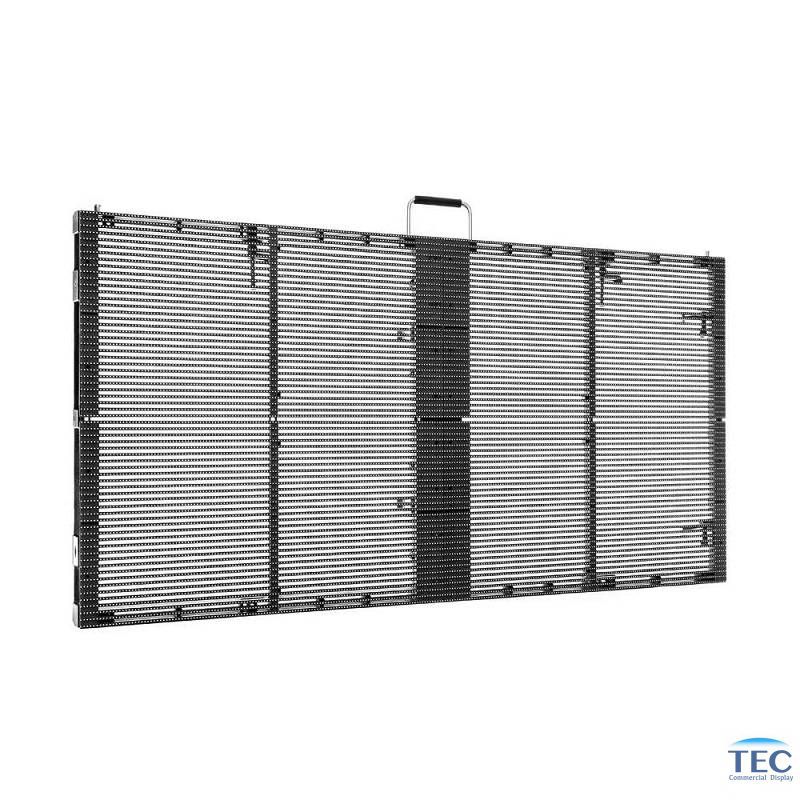

Glassit-5, Pitch 5.2mm Outdoor Transparent Glass LED Display building window glass facade video advertising solutions

    Key Features:

     IP67 for outdoor applications,

     70% transparency, no block light,

     7.4 kgs per cabinet 1000*500mm,

     Strong cabinet, high-end quality ensures durable.

    Applications:

    Fixed installation transparent glass LED panel for outdoor advertising digital signage, building facade video wall, shops window glass screen


  • Parameters

    Key Features:

     IP67 for outdoor applications,

     70% transparency, no block light,

     7.4 kgs per cabinet 1000*500mm,

     Strong cabinet, high-end quality ensures durable.

    Applications:

    Fixed installation transparent glass LED panel for outdoor advertising digital signage, building facade video wall, shops window glass screen


Glassit Series Pitch 3.9mm Outdoor Transparent Glass LED Display



              Outdoor fixed installation, Front & rear access, Durable



Glassit Series Outdoor Transparent LED Display is 70-85% transparency which can be mounted on window glass or on building wall facade without effecting natural light in your place. With 6,000 nits brightness, IP65 weather protection, and high quality material selected, Glassit series Transparent LED display can be used for outdoor advertising video wall and digital billboard. Its high refresh rate and contrast create a dynamic experience to catch your customers’ eyes when they come across your locations. Glassit Series Transparent LED Display is the first choice for any outdoor & indoor building glass video wall, retail stores, shopping mall, showroom or other window glass video solution applications.

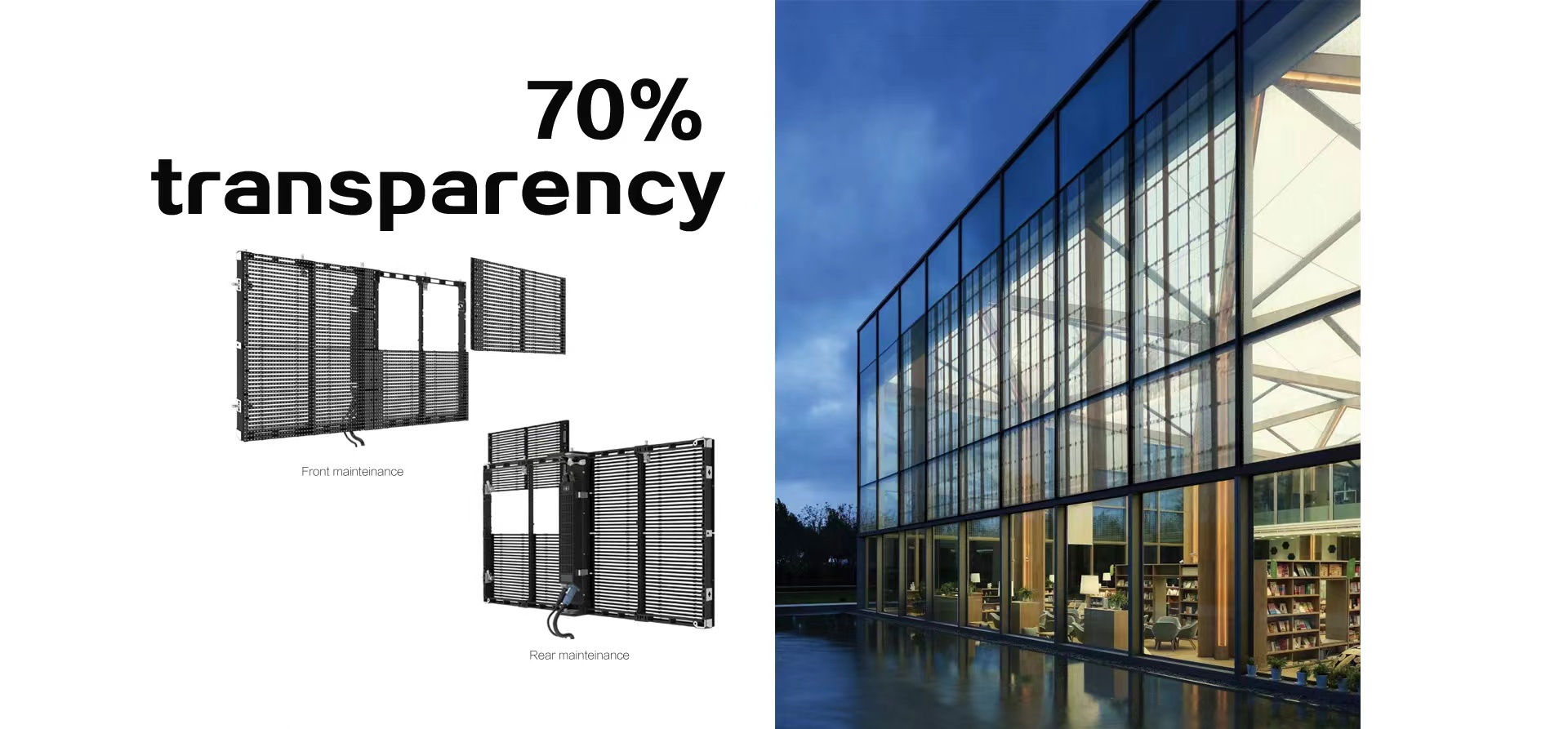

70% Transparency window glass video solutions

Up to 70% rate transparency without effecting natural light inside of building, and anti-wind outdoor.

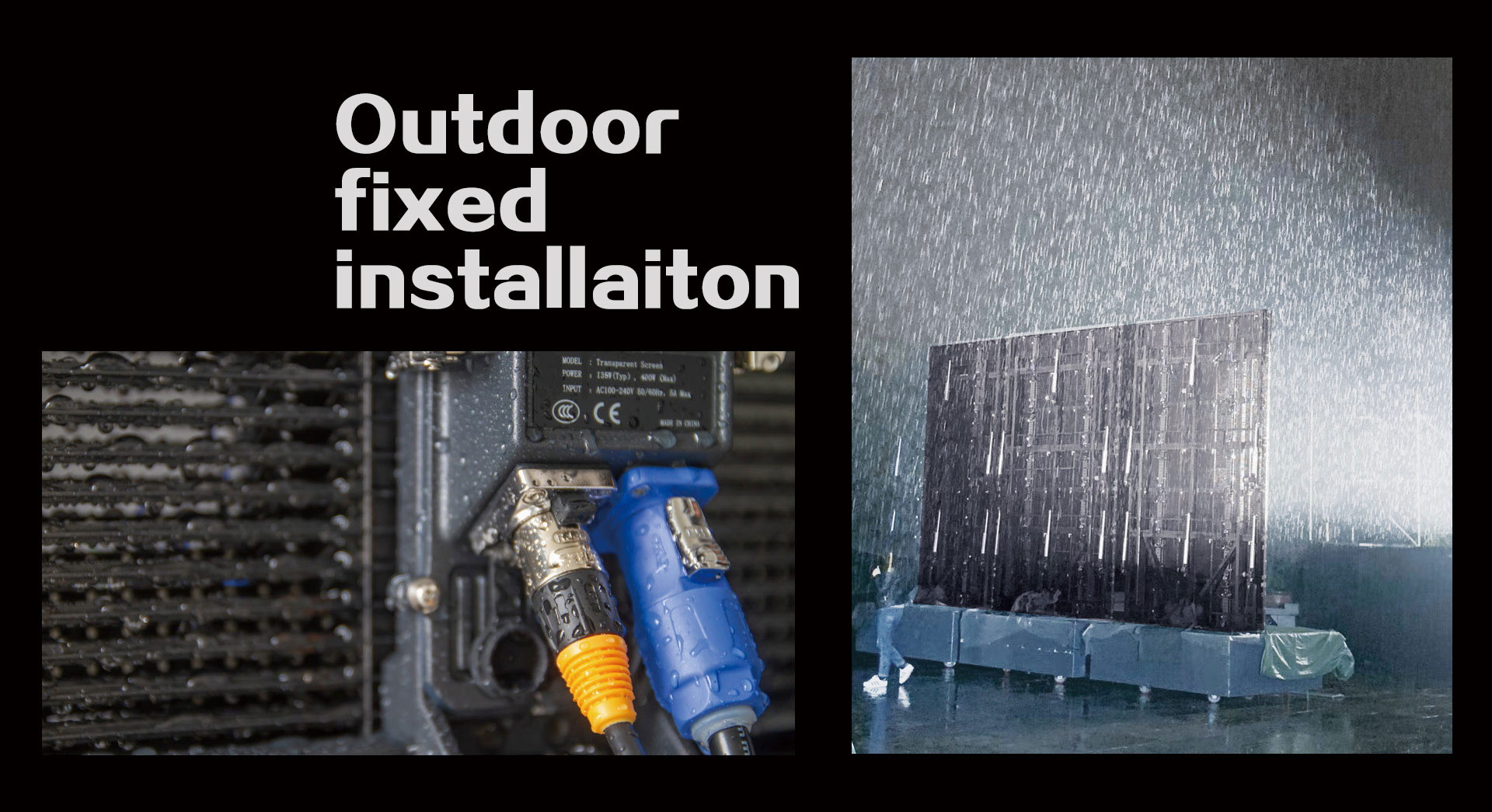

Outdoor weather protection

High brightness up to 6,000 nits, IP 65 waterproof for outdoor building facade fixed applications.







Extremely light-weight panel

Every 1000*500mm cabinet panel is 7.5kgs only, it's easy to handle by one person when setup or teardown.





Anti-wind  for Outdoor Installation

Up to max 80% transparency,the wind go though transparent LED screen, anti-wind for outdoor fixed installation application.

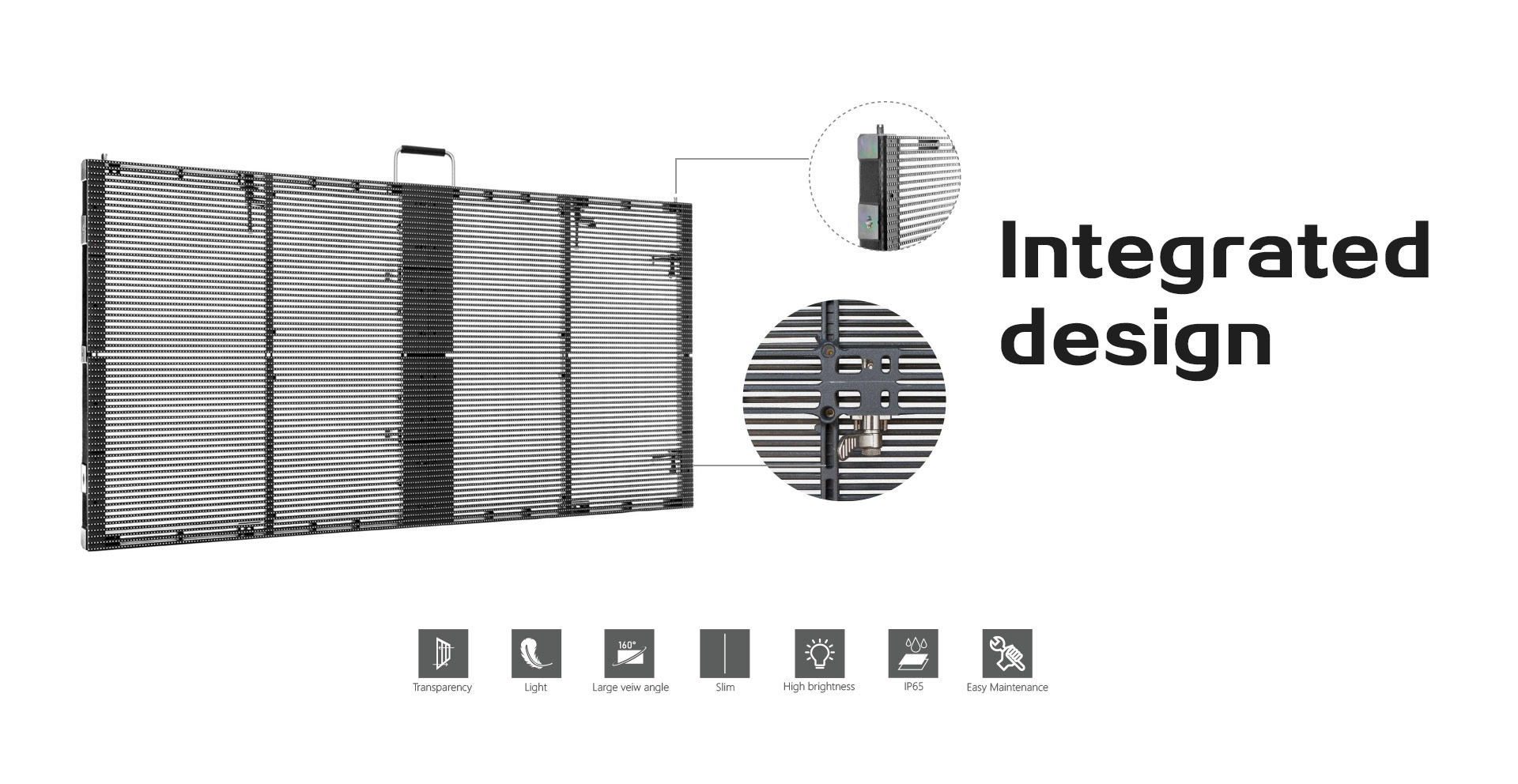

Integrated design for fast installation

Cabinet equipped with quick lock,location pin & connector design, saving time for fixed installation, no tools.






Varies installation methods

Floor stand, Hanging front ceiling, wall mount fixed installation are all available.







Glassit-3/7, Pitch 3.9mm outdoor transparent LED screen





Glassit 10, P10mm Outdoor Transparent LED Video Panel video demo





PitchX: 5.2, Y: 10.4mm
LEDSMD 1921
Pixel Density18,432
Cabinet Size (mm)W 1000 * H 500
Cabinet Thickness74 mm
Cabinet Weight7.5 Kgs
Transparency65%
Brightness (nits)5000
MaterialDie-casting
ServiceabilityFront & Rear
Max power consump800 W/㎡
Average power consum220 W/㎡
Refresh rate (Hz)3840
Grey level14 Bit
Drive ModeConstant current
Power InputAC 110-220V
Life Time (hrs)100,000
Contrast5000:1
View angle (H/V°)>140
IP Rating65
ApplicationOutdoor
Operating temp-10 to 40℃
Storage temperature-20 to 60℃






Glassit-5, Pitch 5.2mm Outdoor Transparent Glass LED Display building window glass facade video advertising solutions
Outdoor fixed transparent LED screen, 70% transparency, IP67
