PRODUCTS DETAIL

Invisible-8, P8mm Clear Film LED Window Glass Screen, Building Glass Facade Video Solutions

    Key Features:

    ● Invisible film technology

    ● 90% Transparency

    ● Ultra slim, 3mm thickness

    ● Stick & play, no frame

    ● Cut freely for your size

    Applications:

      Glass self-adhesive film LED screen solution for window glass advertising media on building, store, showroom

  • Parameters

    Key Features:

    ● Invisible film technology

    ● 90% Transparency

    ● Ultra slim, 3mm thickness

    ● Stick & play, no frame

    ● Cut freely for your size

    Applications:

      Glass self-adhesive film LED screen solution for window glass advertising media on building, store, showroom

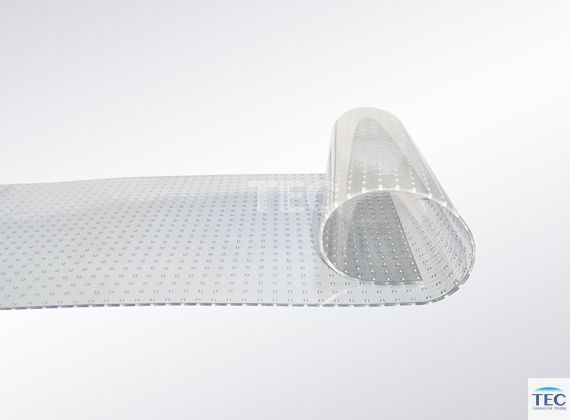

Pitch 8mm Transparent film LED video screen


The Real Glass LED Displays with Invisible PCB Technology


Transparent Video Solutions Provider




In the booming transparent glass LED screen industry, the transparency is the most important factor for windows video solutions, this is why most of manufacturers try to make the highest transparency, so do TEC displays, TEC invisible PCB technology came out after 4 years' development, this new technology not only expand the transparency rate up to 95%, but also can be made for any custom projects with soft PCB technology, you can also cut the size of film as you wanted easily.


The invisible PCB means the PCB board is also transparent, it is hard to find wires in the PCB even if you get closer and check it carefully, the traditional PCB of glass LED screen can not made like this. This is why when the film LED screen is off, you cannot see anything on the window glass, LED film is same like glass. The transparency of film LED screen is more than 95%, it combines the art with technology to create a perfect experience for your target audience.


The invisible PCB is also soft and 1.8mm thickness, you can make any shapes and size without any limitation, and applied most of your projects without break your previous structures. Choose TEC film LED screen, experience the differences of film LED screen.



1stickit-pcbinvisiblefilmLEDfoilscreen





Unbeatable transparency

95% transparency, the highest transparency in the transparent glass LED displays






Ultra slim & light weight

Only 1.2mm film thickness, 0.2kgs weight per 500*500mm film





Easiest installation

Paste on window glass with special self-adhesive glue-water, save installation & frame cost

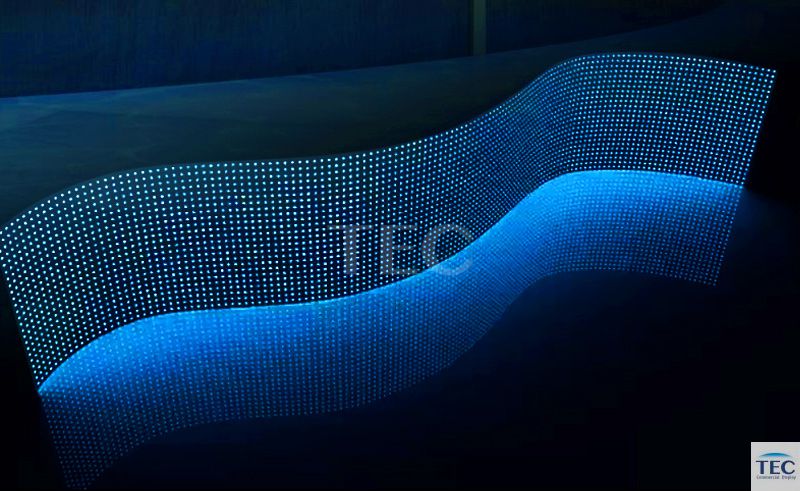

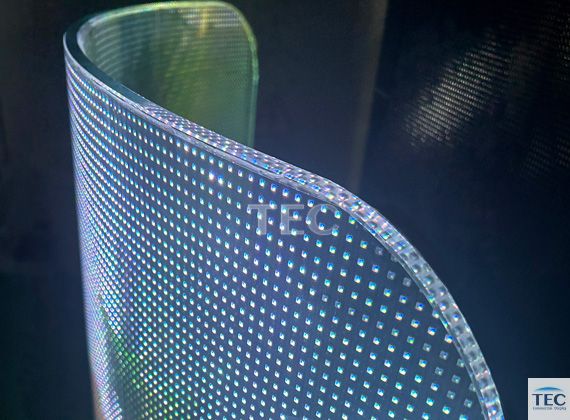

Extreme flexible

Soft PET film material allows you to make any shapes, like pillar, wave, cone...

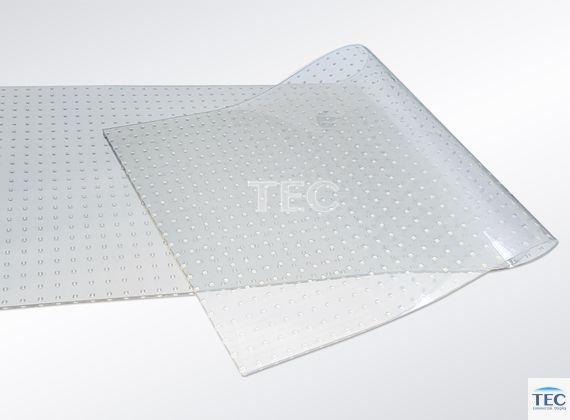

Free trimming size

Standard size 500*500mm can be cut for any size, or custom made film size available





Powerful weather protection

Stable & Anti-UV PET material ensures durable installation for outdoor, not yellow in 8 years





Highest safety

Strong OCA self-adhesive film makes safe glass protection if the window glass is broken




Simple fixed Installation

Only 4 steps to install: Tear off film protection; paste on glass; connect cables; fix on window frame





Clear installation

Easy control via There is no power box & cables in between glass, flexible installation allows you layout power box vertically or horizontally.

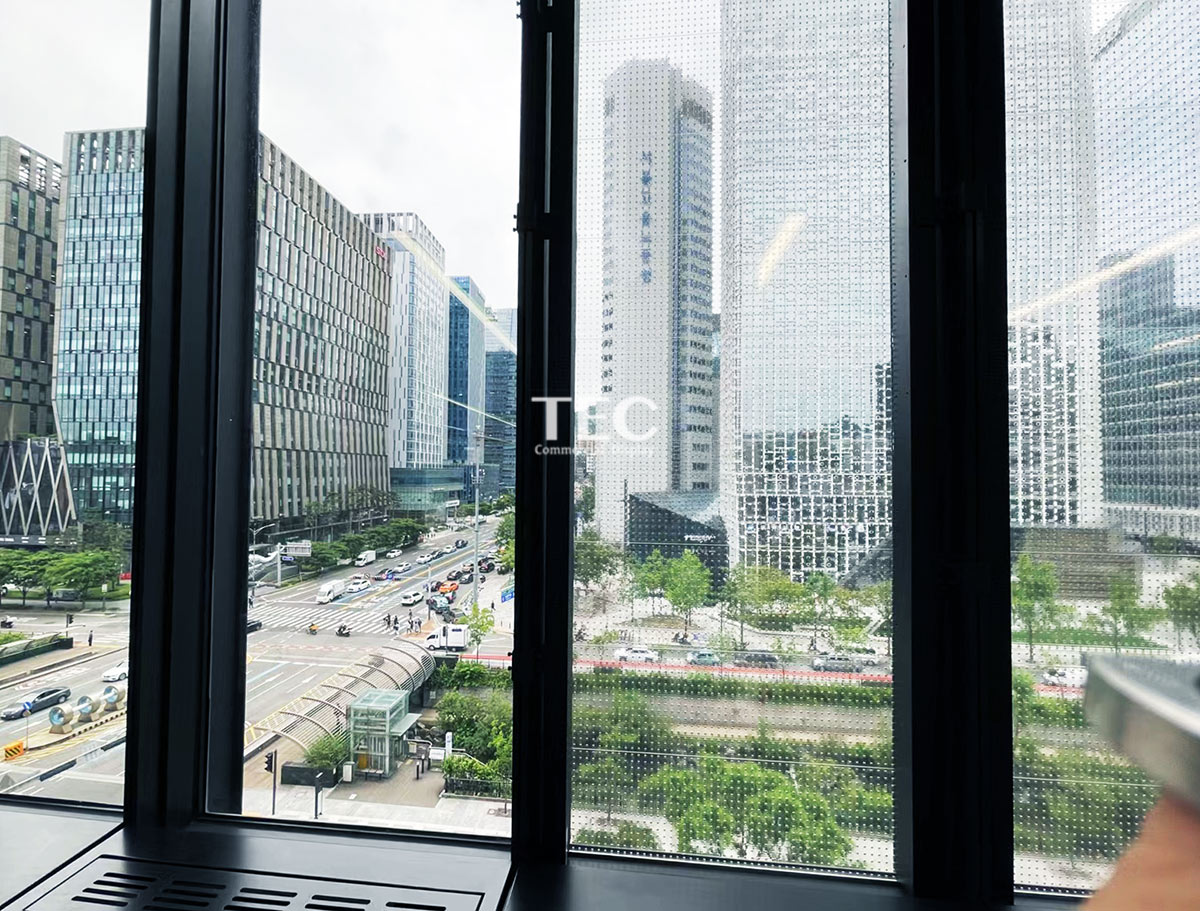

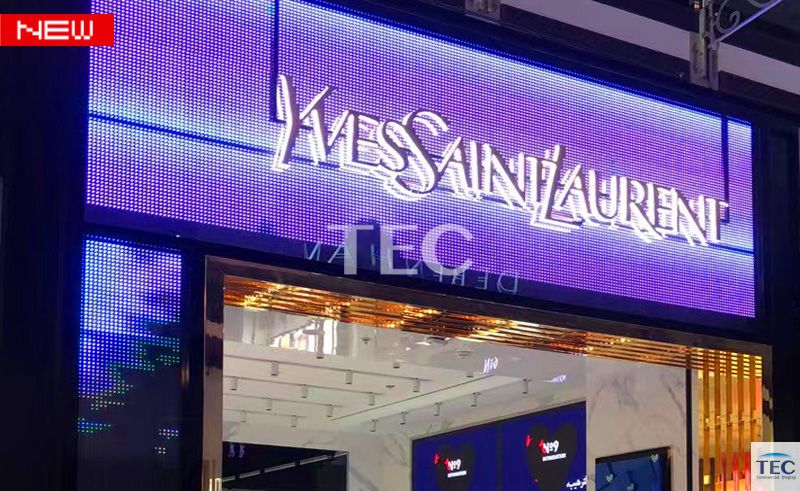

Transparent Film LED Displays Installation Cases



Pixel Pitch8 mm
LEDSMD2121 (IC Integrated)
Transparency85%
Film Size (mm)1000*240
Film Resolution125 * 30
MaterialFilm
Thickness (mm)3
Weight (㎏/㎡)3.5
Brightness(CD)3,500
View angle (H/V°)>140
Power InputAC 110-220V
Grey level14 Bit
Refresh rate (Hz)3840
Max Power Consumption400 W/m²
Avg Power Consumption140 W/m²
Driving TypeStatic
MaintenanceRear
IP Rating54
ApplicationIndoor
Installation TypePasting
Life Time (hrs)100,000
Operating temp-20 to 50℃
Storage temperature-20 to 60℃

























Invisible-8, P8mm Clear Film LED Window Glass Screen, Building Glass Facade Video Solutions
● Invislbe film PCB Technology, 95% transparentcy, Self-adhesive film 3mm thickness.
