Mountit500 Indoor MI-2.6, Pitch 2.6mm fixed LED video wall front maintenance
Key Features:
● Front Installation & maintenance;
● Simple installation with own brackets;
● Space saving, only 40mm thickness after installation;
● High contrast & refresh rate ensuring UHD visual display.
Applications:
Indoor LED panel fixed installation for stage, shopping mall, conference, showroom, digital signage.
- Parameters
Key Features:
● Front Installation & maintenance;
● Simple installation with own brackets;
● Space saving, only 40mm thickness after installation;
● High contrast & refresh rate ensuring UHD visual display.
Applications:
Indoor LED panel fixed installation for stage, shopping mall, conference, showroom, digital signage.

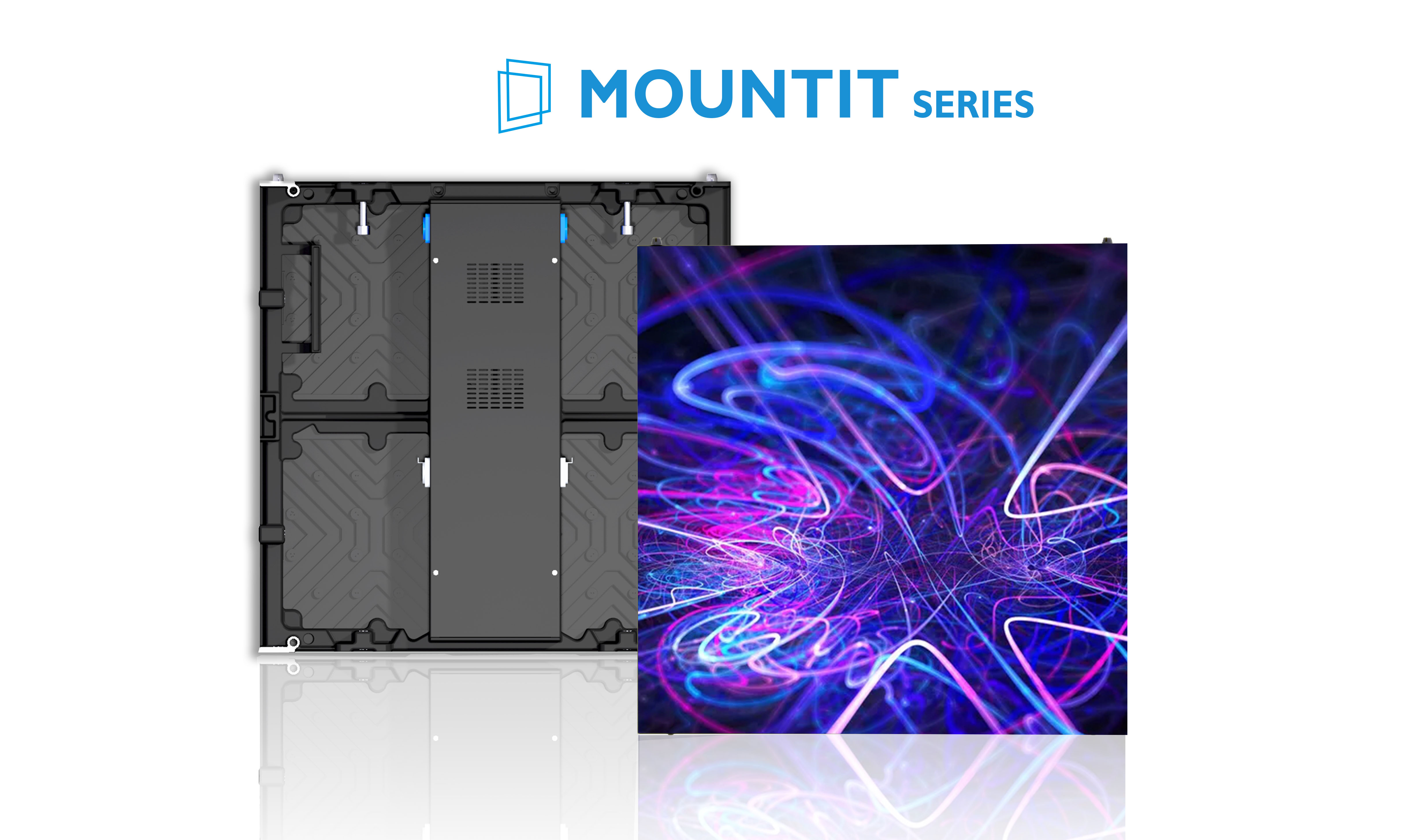

Mountit500 MI-2.6, P2.6mm Indoor fixed LED screen
Front access, Ultra slim, UHD performance
Mountit Series indoor fixed installation LED video wall has wide pixel pitch range from 1.9mm to 4.8mm for indoor commercial LED display applications. The cabinet thickness 60mm ultra slim design, and weight 6kgs which makes the installation easier and saves the installation space. Front access installation & maintenance allows you replace the modules without catwalk. The video wall with UHD performance, high contrast and refresh rate is perfect for close view inside of your commercial place, such as shops, showroom, exhibition, conference, office, hotel...
Ultra slim, Light weight Panel
The thickness of cabinet is 60mm, only 6 Kgs, 78mm thickness after installation.
Seamless Design
Every video panel is manufactured with CNC auto-machines of high precision, modules & cabinet connection are seamless.
Easy installation without structure
Connection strap design for simple installation, no need extra frame, saving structure cost.
Front access
LED modules, controller all are front maintenance without catwalk. Front installation to save installation space.
Excellent UHD Display performance
Uniform color, 3840Hz refresh rate and 140° super wide viewing angle guarantee the best visual experience.
Noise-free & Energy-saving
Fan-less design with perfect heat dissipation contributes to noise-free effect and low power consumption.
Varies installation methods
Floor stand with frame, wall mount & hanging installation are all available.
Mountit series MI-2.6, Pitch 2.6mm fixed installation LED wall
| Pitch | 2.6mm |
| LED | SMD 2020 |
| Pixel Density | 147,456 |
| Module Size (mm) | W 250 * H 250 |
| Cabinet Size (mm) | W 500 * H 500 / W 500 * H 1000 |
| Cabinet Thickness | 60 mm |
| Cabinet Weight | 6 Kgs |
| Brightness (nits) | 1500 |
| Material | Die-casting |
| Serviceability | Front |
| Max power consump | 800 W/㎡ |
| Average power consum | 240 W/㎡ |
| Refresh rate (Hz) | 3840 |
| Grey level | 14 Bit |
| Drive Mode | Constant current |
| Power Input | AC 110-220V |
| Life Time (hrs) | 100,000 |
| Contrast | 5000:1 |
| View angle (H/V°) | >140 |
| IP Rating | 43 |
| Application | Indoor |
| Operating temp | -10 to 40℃ |
| Storage temperature | -20 to 60℃ |
