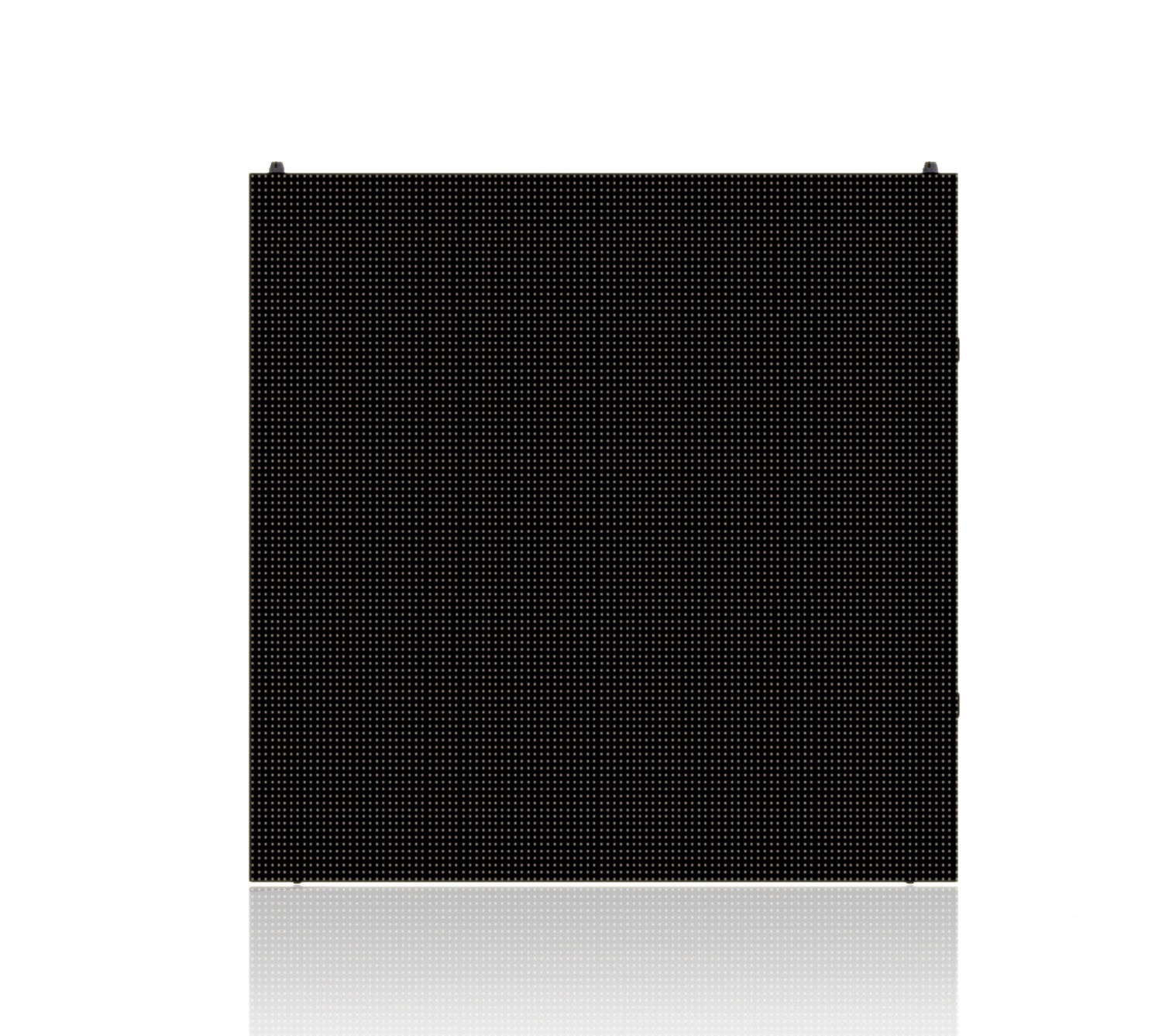

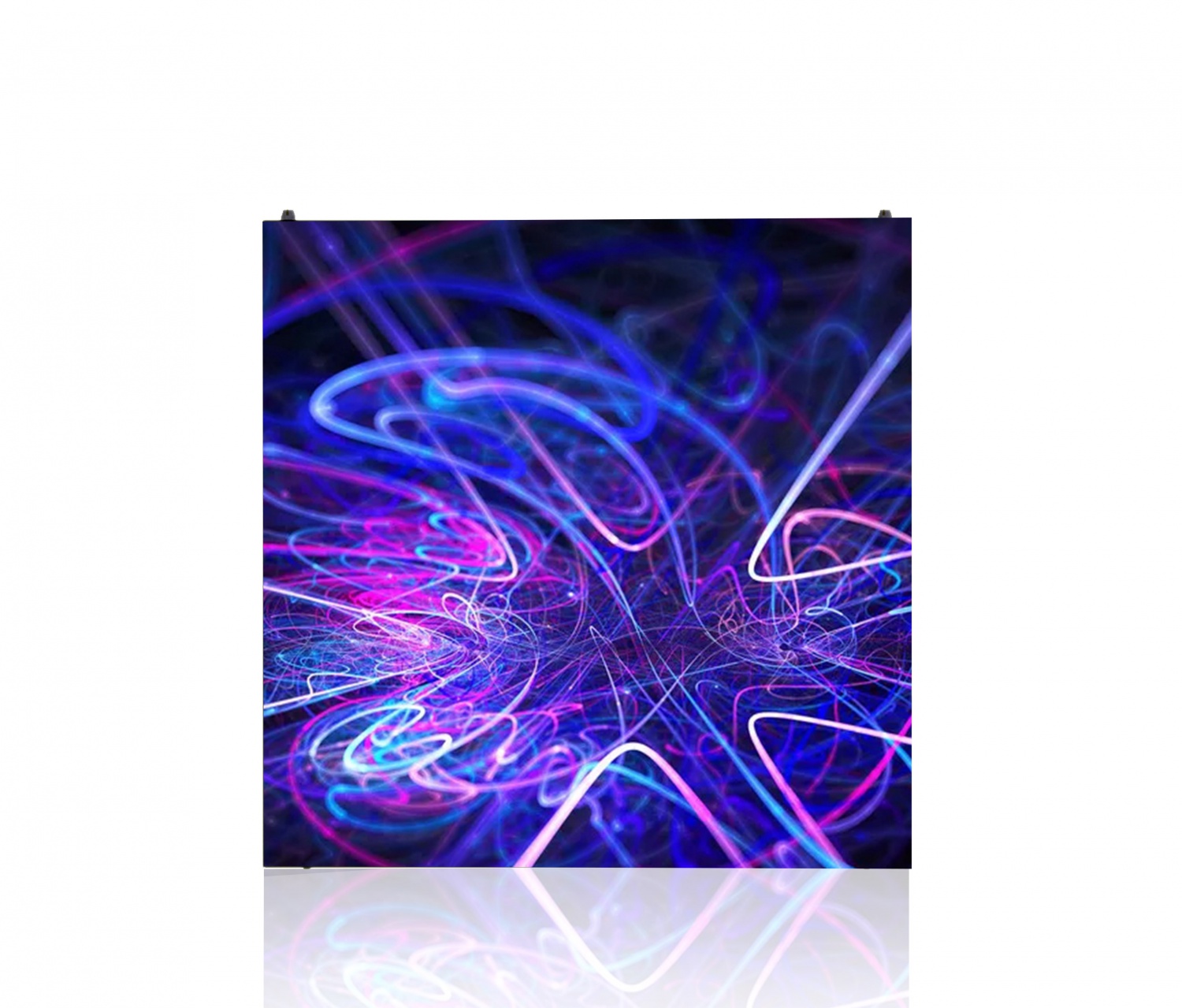

Mountit500 Indoor MI-2.9, Pitch 2.9mm Indoor fixed LED video wall for wall mounting installation


    Key Features:

    Front Installation & maintenance;

    ● Simple installation with own brackets;

    ● Space saving, only 40mm thickness after installation;

    ● High contrast & refresh rate ensuring UHD visual display.

    Applications:

      Indoor LED panel fixed installation for stage, shopping mall, conference, showroom, digital signage.


  • Parameters


    Key Features:

    Front Installation & maintenance;

    ● Simple installation with own brackets;

    ● Space saving, only 40mm thickness after installation;

    ● High contrast & refresh rate ensuring UHD visual display.

    Applications:

      Indoor LED panel fixed installation for stage, shopping mall, conference, showroom, digital signage.

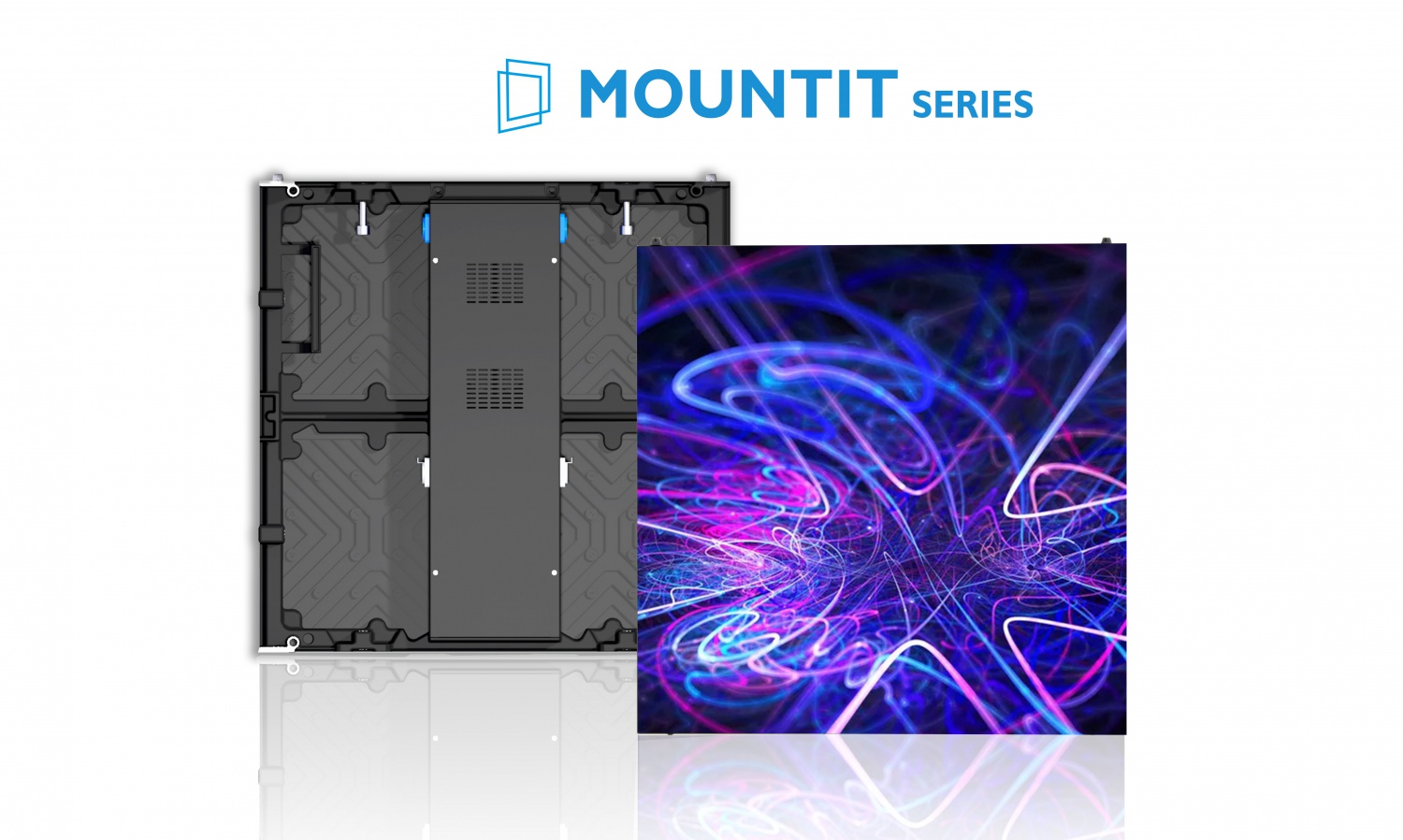

Mountit500 MI-2.9, P2.9mm Indoor fixed LED screen



Front access, Ultra slim, UHD performance





Mountit Series indoor fixed installation LED video wall has wide pixel pitch range from 1.9mm to 4.8mm for indoor commercial LED display applications. The cabinet thickness 60mm ultra slim design, and weight 6 kgs which makes the installation easier and saves the installation space. Front access maintenance allows you replace the modules without catwalk .The video wall with UHD performance, high contrast and refresh rate is perfect for close view inside of your commercial place, such as shops, showroom, exhibition, conference, office, hotel...

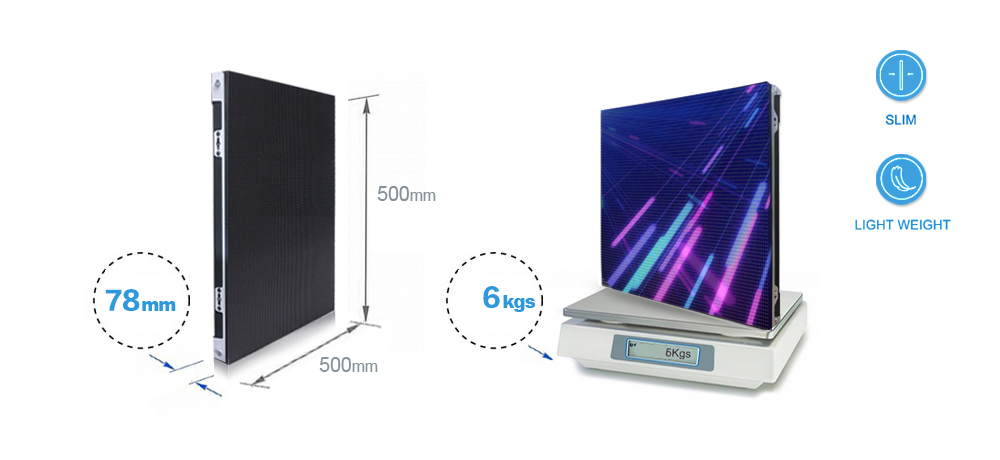

Ultra slim, Light weight Panel


The thickness of cabinet is 60mm, only 6 Kgs, 78mm thickness after installation.







Seamless Design


Every video panel is manufactured with CNC auto-machines of high precision, modules & cabinet connection are seamless.


seamlessmountitindoorfixedledscreenvideowall

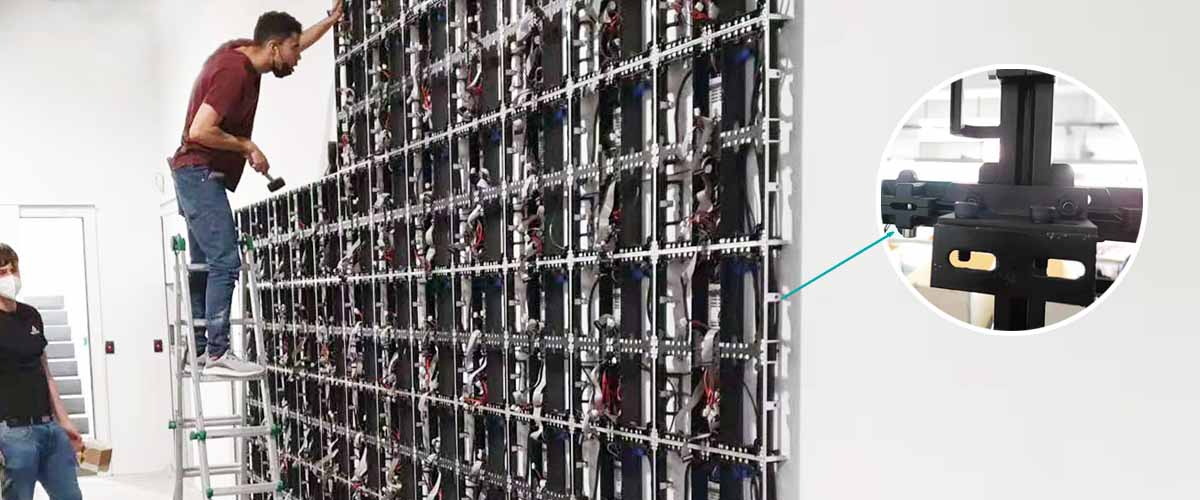

Easy installation without structure


Connection strap design for simple installation, no need extra frame, saving structure cost.

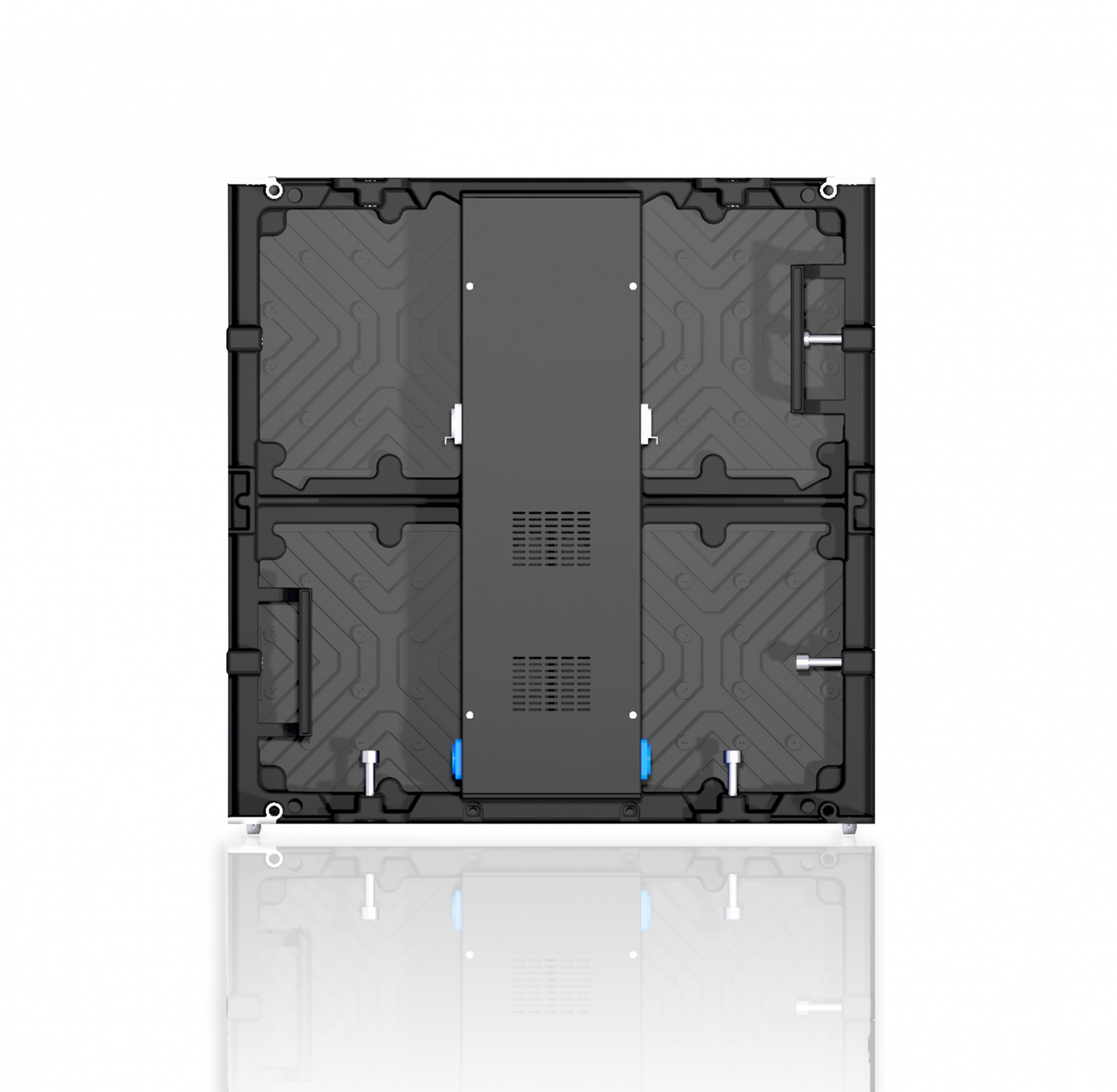

Front access


LED modules, controller all are front maintenance without catwalk. Front installation to save installation space.

frontmaintenancemountitindoorfixedledscreenvideowall05



Excellent UHD Display performance


Uniform color, 3840Hz refresh rate and 140° super wide viewing angle guarantee the best visual experience.



wideviewanglemountitindoorfixedledscreenvideowall



Noise-free & Energy-saving


Fan-less design with perfect heat dissipation contributes to noise-free effect and low power consumption.


nofanindoorfixedinstallationledscreenvideowalldisplay





Varies installation methods


 Floor stand with frame, wall mount & hanging installation are all available.



variesinstallationmountitindoorfixedledscreenvideowall

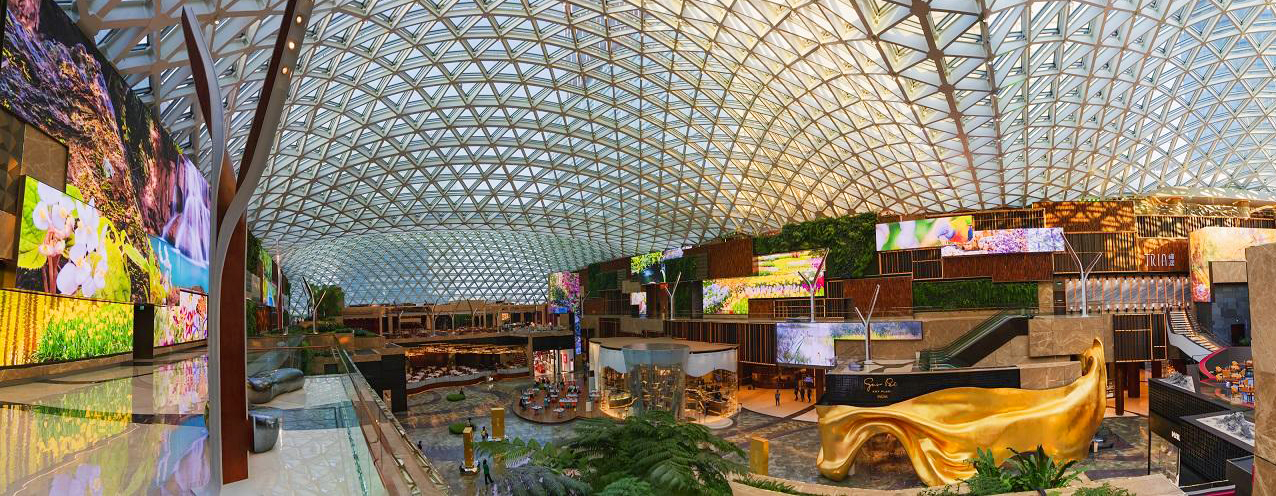

Mountit series MI-3.9, Pitch 3.9mm fixed installation in the shopping mall





Pitch2.9mm
LEDSMD 2020
Pixel Density112,896
Module Size (mm)W 250 * H 250
Cabinet Size (mm)W 500 * H 500 / W 500 * H 1000
Cabinet Thickness78 mm
Cabinet Weight6 Kgs
Brightness (nits)2000
MaterialDie-casting
ServiceabilityFront
Max power consump800 W/㎡
Average power consum240 W/㎡
Refresh rate (Hz)3840
Grey level14 Bit
Drive ModeConstant current
Power InputAC 110-220V
Life Time (hrs)100,000
Contrast5000:1
View angle (H/V°)>140
IP Rating43
ApplicationIndoor
Operating temp-10 to 40℃
Storage temperature-20 to 60℃





Mountit500 Indoor MI-2.9, Pitch 2.9mm Indoor fixed LED video wall for wall mounting installation
● Front Installation & maintenance;

● Simple installation with own brackets;

● Space saving, only 40mm thickness after installation;

● High contrast & refresh rate ensuring UHD visual display.

Applications:

Indoor LED panel fixed installation for stage, shopping mall, conference, showroom, digital signage.
