Mountit640-1.2, P1.25mm High definition pitch LED video wall front maintenance control center solution
Key Features:
● Front Installation & maintenance;
● Space saving, 65mm cabinet thickness;
● Seamless cabinet connection;
● High contrast & refresh rate ensuring UHD visual display.
Applications:
UHDit Narrow pitch LED panel fixed installation for stage, shopping mall, conference, showroom, digital signage.
- Parameters
Key Features:
● Front Installation & maintenance;
● Space saving, 65mm cabinet thickness;
● Seamless cabinet connection;
● High contrast & refresh rate ensuring UHD visual display.
Applications:
UHDit Narrow pitch LED panel fixed installation for stage, shopping mall, conference, showroom, digital signage.
Mountit640-1.2, P1.25mm Fine pitch front maintenance LED screen
Front access, Ultra slim, UHD performance
The Mountit640 series fine pitch LED video wall is design for high definition LED video wall applications, like in control room, security commend center, conference boardroom. The 640*480mm video panels with pixel pitch ranging from 2.5mm to 1.25mm deliver superior seamless video performance, It allows you to install and maintain from front easily with quick locks and location pins. The MI640 series come with the best material selection and features to maximize the durability and high performance of LED video wall.

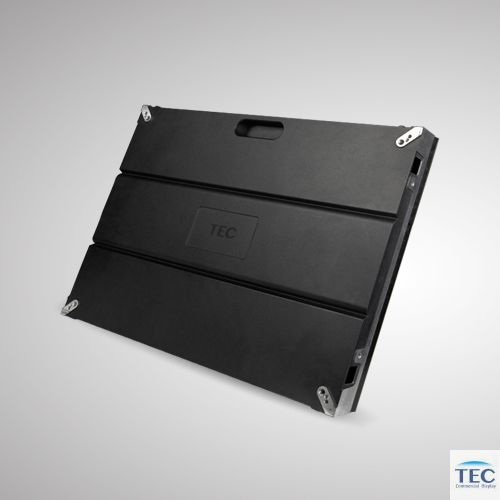

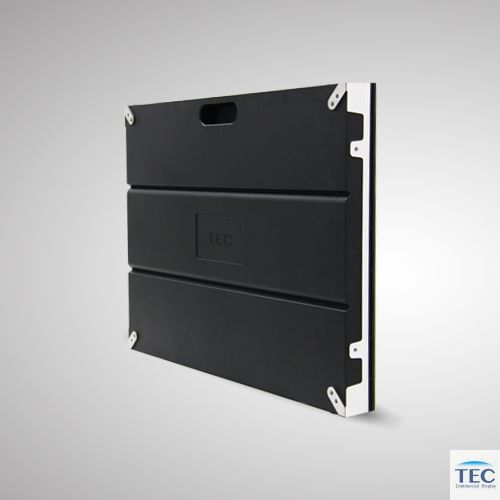

Ultra slim, Light weight
The thickness of cabinet is 59mm, only 7Kgs per panel, cabinet 640*480mm for all pitch ranges: 1.25, 1.5, 1.8 & 2.5mm
Seamless Design
Each cabinet is manufactured with CNC auto-machines of high precision, modules & cabinet connection are seamless like one.
Excellent UHD Display performance
3840Hz refresh rate,high contrast and 160° super wide viewing angle guarantee the best visual experience.
Front access
LED modules, controller & power all are front maintenance without catwalk. Front installation to save installation space.
Varies installation methods
Floor stand portable frame, wall mount & hanging installation are all available.
Mountit640-1.8, Pitch 1.8mm fixed installation LED wall showcase
| Pitch | 1.25mm |
| LED | SMD 1010 |
| Pixel Density | 640,000 |
| Module Size (mm) | W 320 * H 160 |
| Cabinet Size (mm) | W 640 * H 480 |
| Cabinet Thickness | 65mm |
| Cabinet Weight | 7 Kgs |
| Brightness (nits) | 600 |
| Material | Die-casting |
| Serviceability | Front |
| Max power consump | 600 W/㎡ |
| Average power consum | 180 W/㎡ |
| Refresh rate (Hz) | 3840 |
| Grey level | 14 Bit |
| Drive Mode | Constant current |
| Power Input | AC 110-220V |
| Life Time (hrs) | 100,000 |
| Contrast | 5000:1 |
| View angle (H/V°) | >140 |
| IP Rating | 43 |
| Application | Indoor |
| Operating temp | -10 to 40℃ |
| Storage temperature | -20 to 60℃ |
