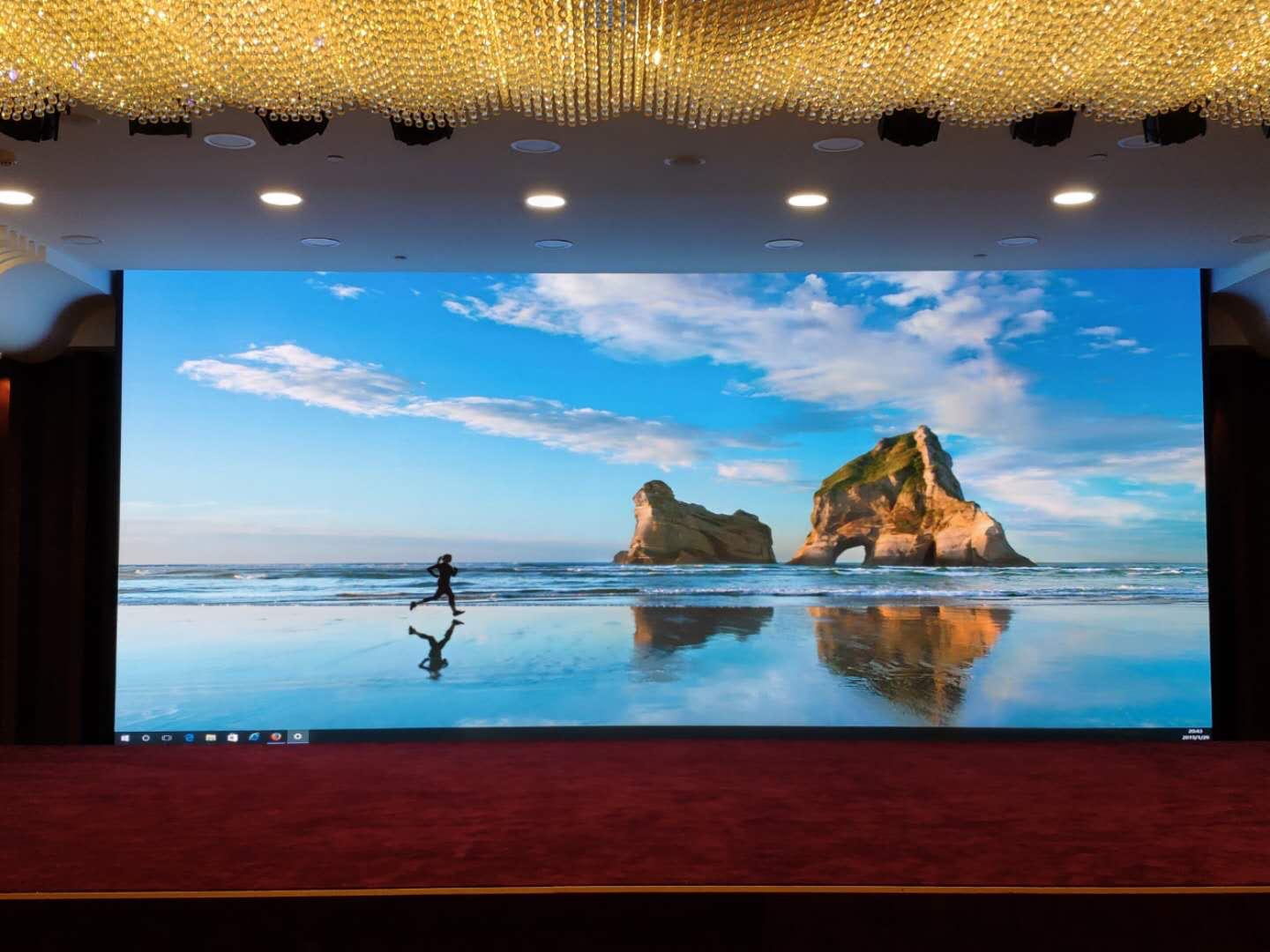

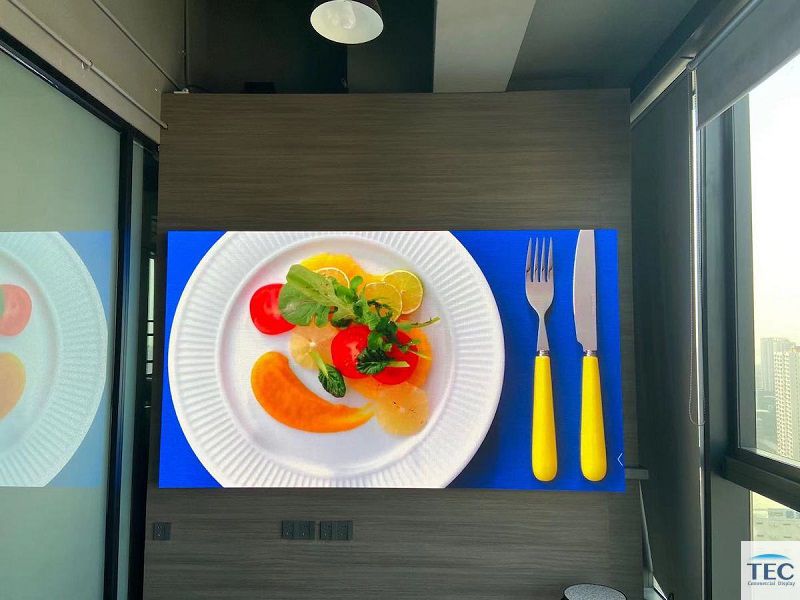

Mountit640-1.5, P1.53mm Small pitch LED video wall front maintenance for conference room


    Key Features:

    Front Installation & maintenance;

    ● Space saving, 65mm cabinet thickness;

    ● Seamless cabinet connection;

    ● High contrast & refresh rate ensuring UHD visual display.

    Applications:

      UHDit Narrow pitch LED panel fixed installation for stage, shopping mall, conference, showroom, digital signage.


  • Parameters


    Key Features:

    Front Installation & maintenance;

    ● Space saving, 65mm cabinet thickness;

    ● Seamless cabinet connection;

    ● High contrast & refresh rate ensuring UHD visual display.

    Applications:

      UHDit Narrow pitch LED panel fixed installation for stage, shopping mall, conference, showroom, digital signage.

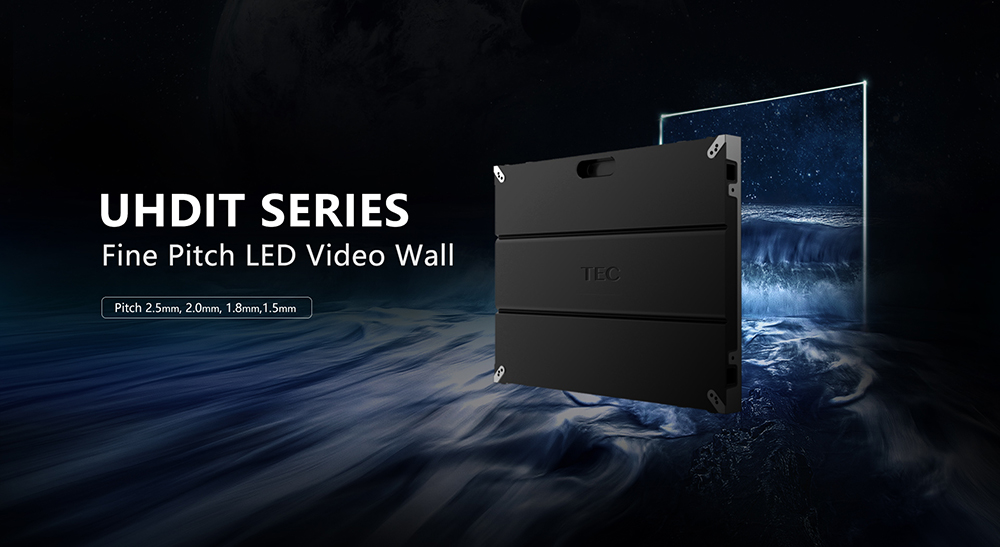

Mountit640-1.5, P1.53mm Fine pitch front maintenance LED screen



Front access, Ultra slim, UHD performance



The Mountit640 series fine pitch LED video wall is design for high definition LED video wall applications, like in control room, security commend center, conference boardroom. The 640*480mm video panels with pixel pitch ranging from 2.5mm to 1.25mm deliver superior seamless video performance, It allows you to install and maintain from front easily with quick locks and location pins. The MI640 series come with the best material selection and features to maximize the durability of LED video wall.

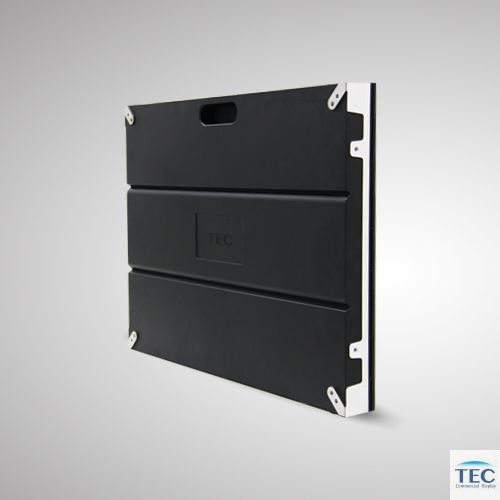

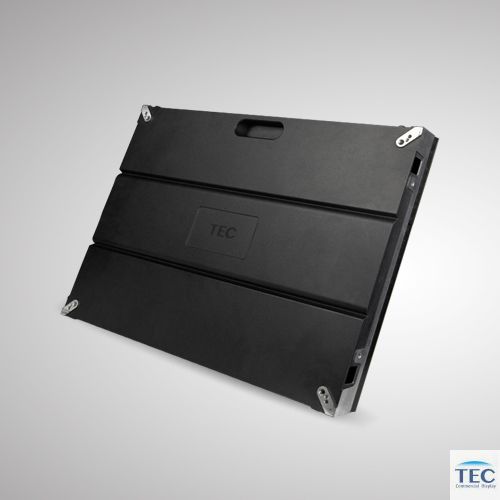

Ultra slim, Light weight


The thickness of cabinet is 65mm, only 7Kgs per panel, cabinet 640*480mm for pitch range: 1.25, 1.5, 1.8 & 2.5mm






Seamless Design


Every video panel is manufactured with CNC auto-machines of high precision, modules & cabinet connection are seamless.


seamlessmountitindoorfixedledscreenvideowall

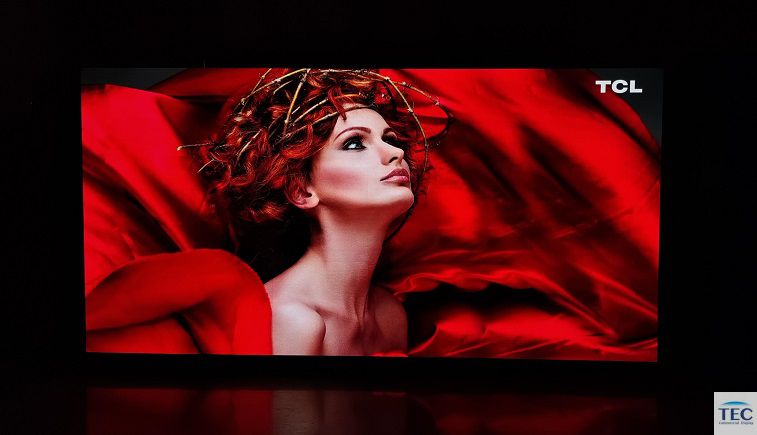

Excellent UHD Display performance


 3840Hz refresh rate and 140° super wide viewing angle guarantee the best visual experience.

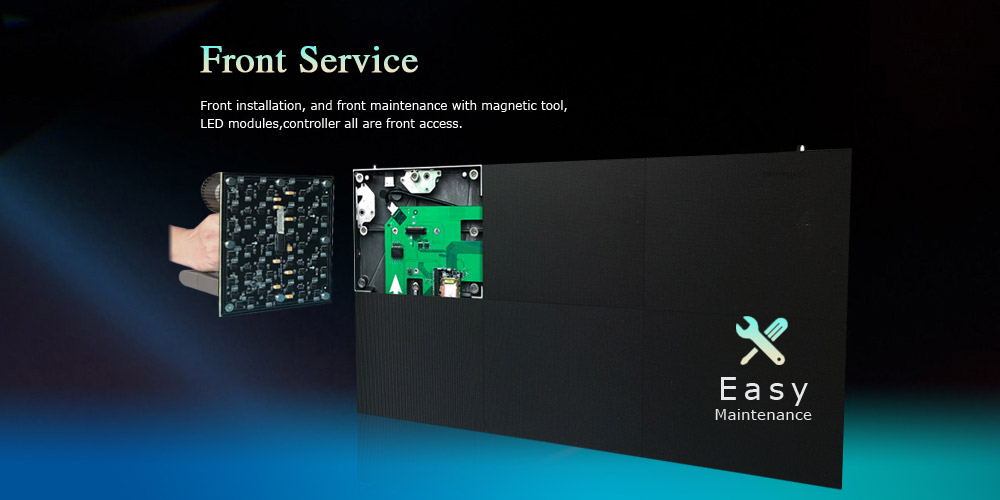

Front access


LED modules, controller all are front maintenance without catwalk. Front installation to save installation space.




Perfect Color Uniformity


Single LED calibration technology, Cabinet and whole LED screen calibrations ensures the uniform color performance.





Full HD 2K, 4K Video Solutions


The cabinet 16:9 ration can get a big format full HD 2K, 4K LED video wall

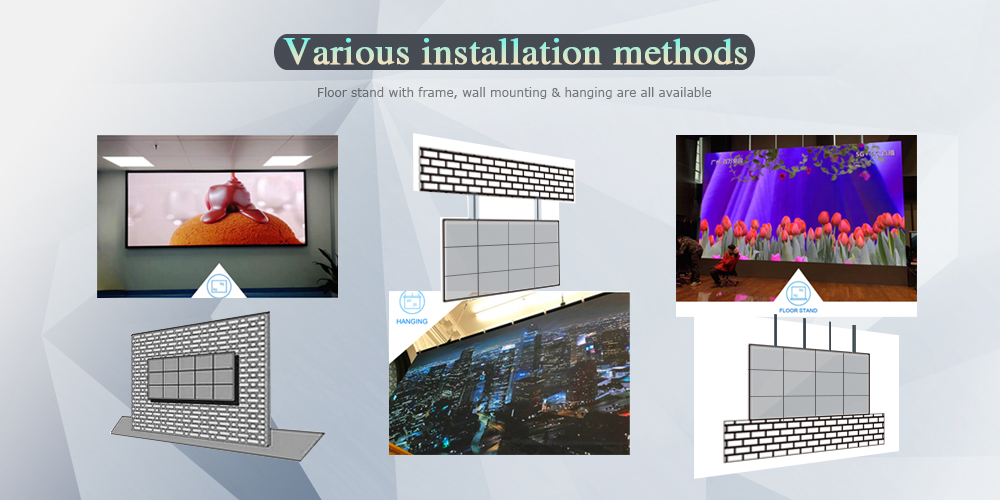

Varies installation methods


 Floor stand with frame, wall mount & hanging installation are all available.






Mountit640-1.8, Pitch 1.8mm fixed installation LED wall




Pitch1.53mm
LEDSMD 1212
Pixel Density422,500
Module Size (mm)W 320 * H 160
Cabinet Size (mm)W 640 * H 480
Cabinet Thickness65mm
Cabinet Weight7 Kgs
Brightness (nits)600
MaterialDie-casting
ServiceabilityFront
Max power consump600 W/㎡
Average power consum180 W/㎡
Refresh rate (Hz)3840
Grey level14 Bit
Drive ModeConstant current
Power InputAC 110-220V
Life Time (hrs)100,000
Contrast5000:1
View angle (H/V°)>140
IP Rating43
ApplicationIndoor
Operating temp-10 to 40℃
Storage temperature-20 to 60℃





Mountit640-1.5, P1.53mm Small pitch LED video wall front maintenance for conference room
Key Features:

● Front access, front Installation & maintenance;

● Space saving, only 35mm thickness after installation;

● Quick locks for fast installation;

● High contrast & refresh rate ensuring UHD visual display.

Applications:

Indoor LED pane
