PRODUCTS DETAIL

Mountit640-1.8, P1.86mm fine pitch LED video wall for indoor wall mount fixed digital signage


    Key Features:

    Front Installation & maintenance;

    ● Space saving, 60mm cabinet thickness;

    ● Seamless cabinet connection;

    ● High contrast & refresh rate ensuring UHD visual display.

    Applications:

      UHDit Narrow pitch LED panel fixed installation for stage, shopping mall, conference, showroom, digital signage.


  • Parameters


    Key Features:

    Front Installation & maintenance;

    ● Space saving, 60mm cabinet thickness;

    ● Seamless cabinet connection;

    ● High contrast & refresh rate ensuring UHD visual display.

    Applications:

      UHDit Narrow pitch LED panel fixed installation for stage, shopping mall, conference, showroom, digital signage.


Mountit640-1.8, P1.86mm Fine pitch front maintenance LED screen



Front access, Ultra slim, UHD performance



The Mountit640 series fine pitch LED video wall is design for high definition LED video wall applications, like in control room, security commend center, conference boardroom. The 640*480mm video panels with pixel pitch ranging from 2.5mm to 1.25mm deliver superior seamless video performance, It allows you to install and maintain from front easily with quick locks and location pins. The MI640 series come with the best material selection and features to maximize the durability and high performance of LED video wall.

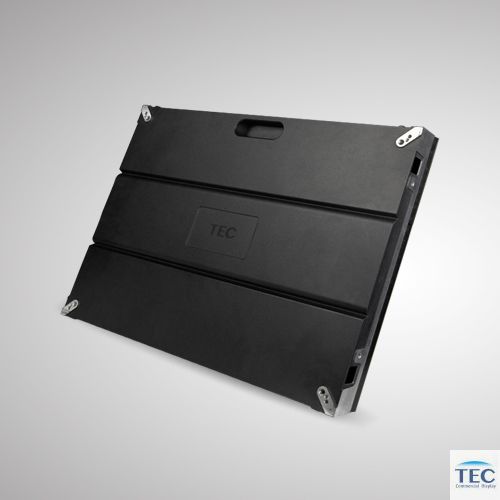

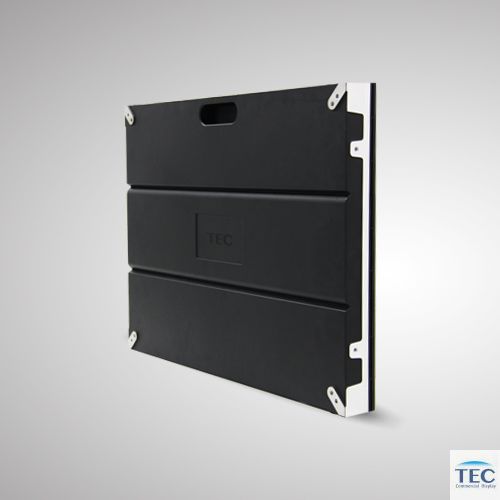

Ultra slim, Light weight


The thickness of cabinet is 59mm, only 7Kgs per panel, cabinet 640*480mm for all pitch ranges: 1.25, 1.5, 1.8 & 2.5mm






Seamless Design


Each cabinet is manufactured with CNC auto-machines of high precision, modules & cabinet connection are seamless like one.




Excellent UHD Display performance


3840Hz refresh rate,high contrast and 160° super wide viewing angle guarantee the best visual experience.





Front access


LED modules, controller & power all are front maintenance without catwalk. Front installation to save installation space.






Varies installation methods


 Floor stand portable frame, wall mount & hanging installation are all available.

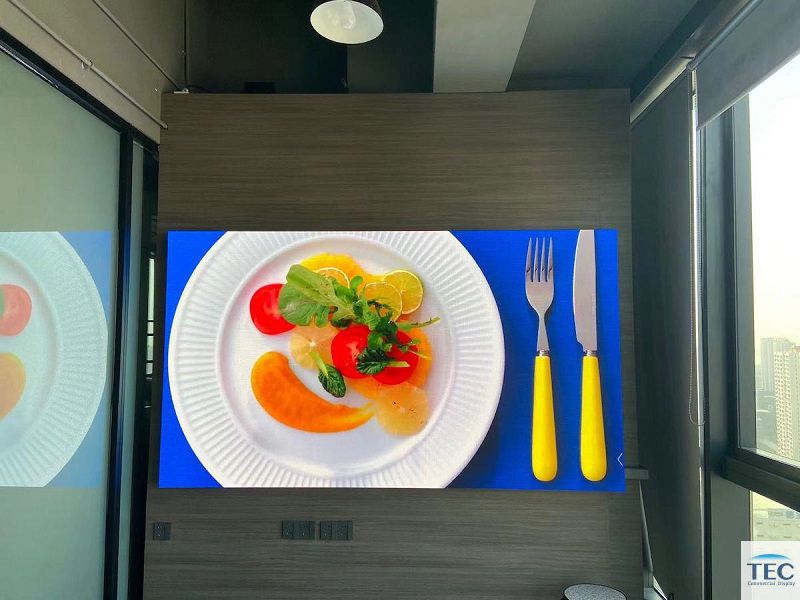

Mountit640-1.8, Pitch 1.8mm fixed installation LED wall showcase




Pitch1.86mm
LEDSMD 1515
Pixel Density288,906
Module Size (mm)W 320 * H 160
Cabinet Size (mm)W 640 * H 480
Cabinet Thickness65mm
Cabinet Weight7 Kgs
Brightness (nits)600
MaterialDie-casting
ServiceabilityFront
Max power consump600 W/㎡
Average power consum180 W/㎡
Refresh rate (Hz)3840
Grey level14 Bit
Drive ModeConstant current
Power InputAC 110-220V
Life Time (hrs)100,000
Contrast5000:1
View angle (H/V°)>140
IP Rating43
ApplicationIndoor
Operating temp-10 to 40℃
Storage temperature-20 to 60℃





Mountit640-1.8, P1.86mm fine pitch LED video wall for indoor wall mount fixed digital signage
Key Features:

● Front access, front Installation & maintenance;

● Space saving, only 35mm thickness after installation;

● Quick locks for fast installation;

● High contrast & refresh rate ensuring UHD visual display.

Applications:

Indoor LED pane
